Remove/Install Radio - Ar82.60-D-7502TS
Model 907
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on carrying out repair work in the vehicle interior | AH68.00-N-0001-01S | ||
| Remove/install | |||
| 1 | Remove upper center trim at instrument panel. | Model 907 with code FJ6 (Center area with 2-DIN stowage compartments and air vent) |
AR68.10-D-1497TS |

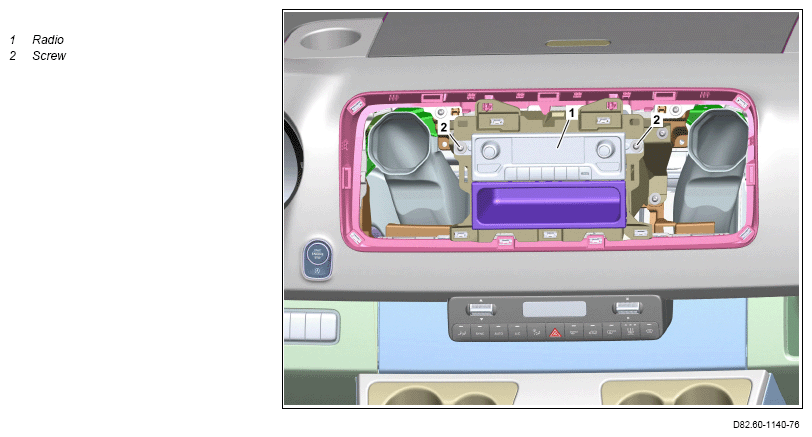

| 2 | Unscrew bolts (2). | ||
| 3 | Pull out radio (1) until the electrical connectors on the back are accessible. | ||
| 4 | Disconnect electrical connectors on the back and remove radio (1). | ||
| 5 | Install in the reverse order. | ||
| Check | |||
| 6 | Perform function test of radio (1). |
