Remove/Install Light Switch Module - Ar54.25-D-3270TS

Model 907

Shown with code B25 (electric parking brake)

	Information on preventing damage to electronic components due to electrostatic discharge	AH54.00-P-0001-01A
	Notes on carrying out repair work in the vehicle interior	AH68.00-N-0001-01S
	Remove/install

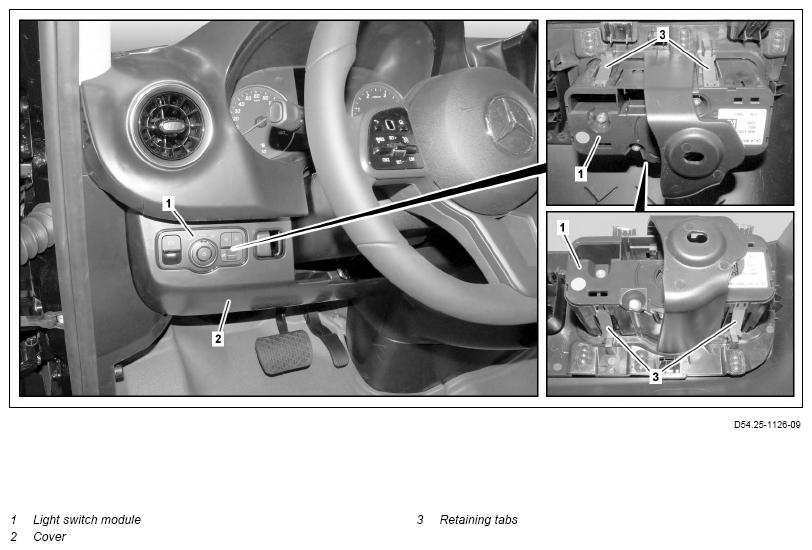

1	Release trim (2) with attached electric lines far enough from the instrument panel to gain access to the retaining tabs (3) and the electrical connector (4) of the light switch module (1)	AR68.10-D-1501TS

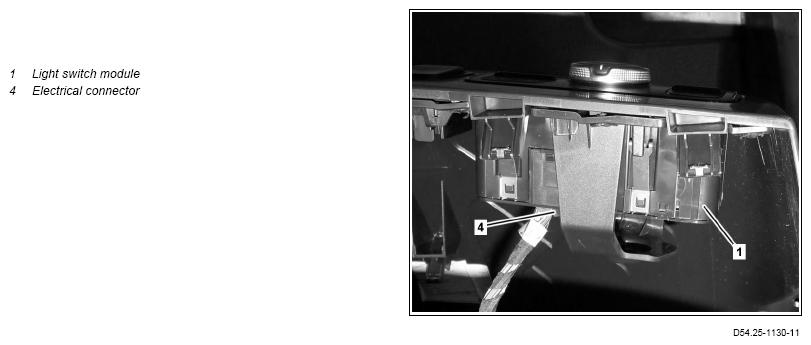

2	Disconnect electrical connection (4)
3	Release light switch module (1) at retaining tabs (3) and remove towards rear from trim (2)
4	Install in the reverse order
	Check
5	Perform function test of all control elements of light switch module (1)
