Remove/Install Instrument Cluster - Ar54.30-D-6016TS
Model 907
MODIFICATION NOTES
| 01.10.2018 | Method revised and picture added. | Operation steps 4 and 5 |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on carrying out repair work in the vehicle interior | AH68.00-N-0001-01S | ||
| Remove/install | |||
| 1 | Perform commissioning of instrument cluster (1) using vehicle diagnosis system. | When replacing instrument cluster (1). | |
| AD00.00-D-2000-06TS | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 3 | Move steering wheel to rearmost and lowest position. | Model 907 with code CL1 (Height and rake adjustable steering wheel) |
|

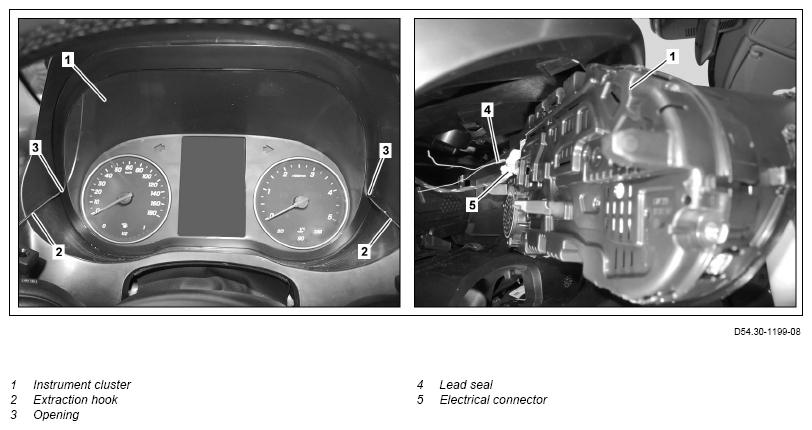

| 4 | Guide extraction hooks (2) with downward pointing angled ends into openings (3) of instrument cluster (1). | Insert extraction hooks (2) fully up to end stop. Otherwise, there can be damage to the plastic disk or the housing of the instrument cluster (1) when pulling out the instrument cluster (1). wsm://04 201800 02 Operation steps 4 to 6 are shown. |
Fig 1 |

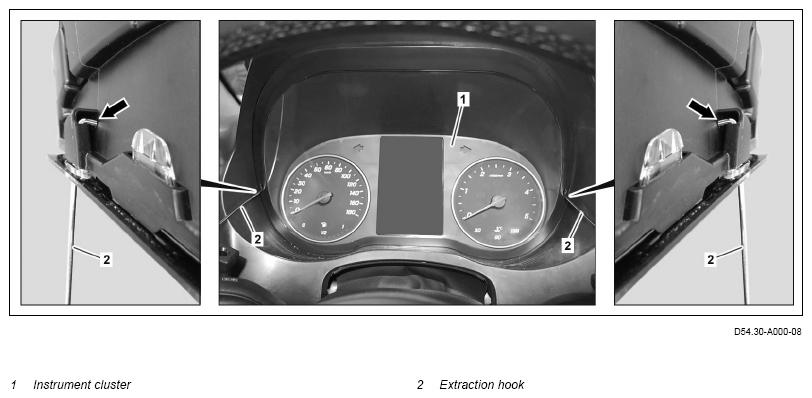

| 5 | Turn extraction hooks (2) by 90° so that the angled ends (arrows) of the extraction hooks (2) point towards the center of the instrument cluster (1). | ||
| 6 | Pull instrument cluster (1) out of instrument panel using extraction hooks (2) until the electrical connector (5) is accessible. | ||
| 7 | Remove lead seal (4). | Model 907 with code J78 (Lead sealing speedometer drive) |
|
| 8 | Disconnect electrical connector (5) and remove instrument cluster (1). | ||
| 9 | Install in the reverse order. |
