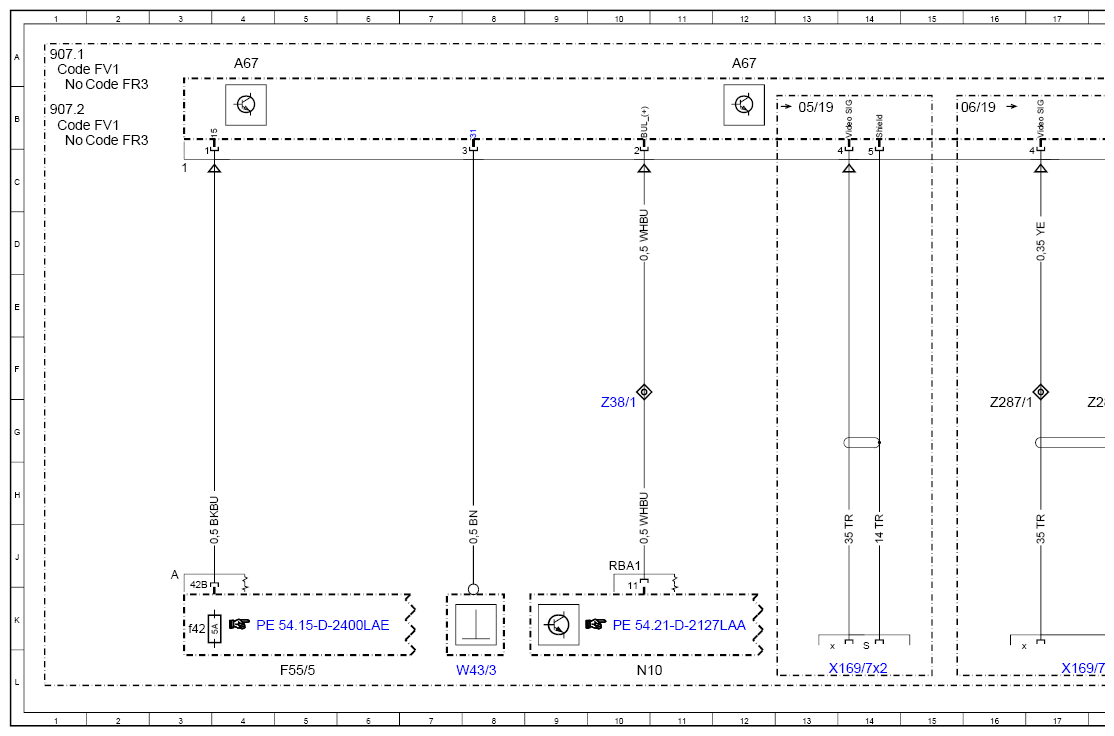

| AO |
Color code key |
72L |
| A67 |
Inside rearview mirror |
4A |
| A67 |
Ins ide rearvi ew mi rror |
12A |
| A67 |
Ins ide rearvi ew mi rror |
35A |

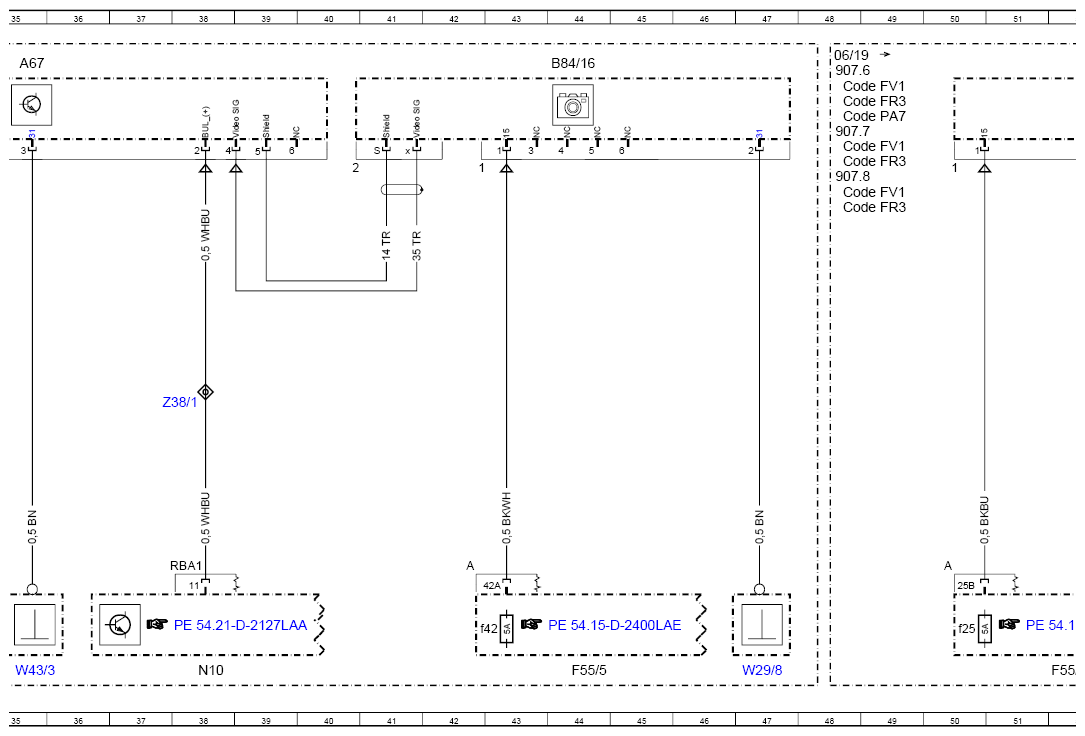

| A67 |
Ins ide rearvi ew mi rror |
55A |

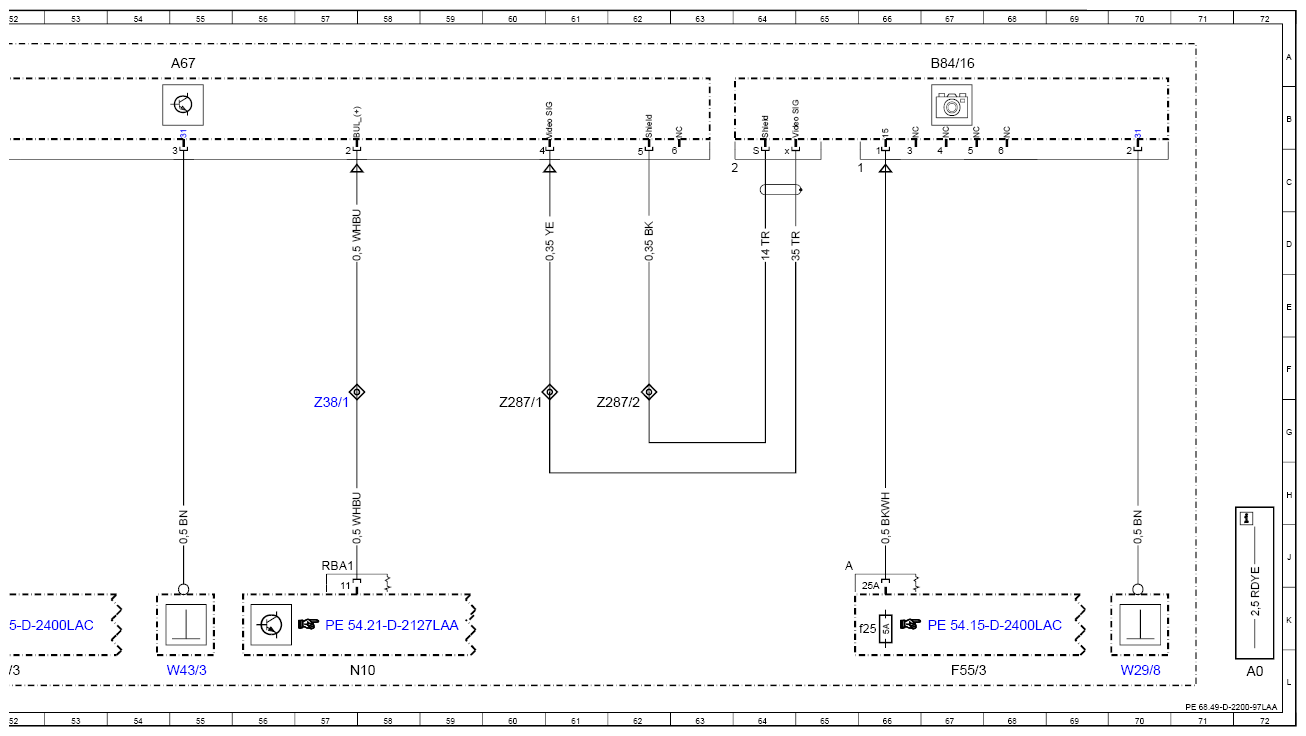

| B84/16 |
Reversing camera inside rearview mirror display |
44A |
| B84/16 |
Reversing camera inside rearview mirror display |
67A |
| Code FR3 |
Reversing camera inside rearview mirror display |
1B |
| Code FR3 |
Reversing camera inside rearview mirror display |
1B |
| Code FR3 |
Reversing camera inside rearview mirror display |
29B |
| Code FR3 |
Reversing camera inside rearview mirror display |
29C |
| Code FR3 |
Reversing camera inside rearview mirror display |
29C |
| Code FR3 |
Reversing camera inside rearview mirror display |
48B |
| Code FR3 |
Reversing camera inside rearview mirror display |
48C |
| Code FR3 |
Reversing camera inside rearview mirror display |
48D |
| Code FV1 |
Pre-installation for reversing camera with inside rearview mirror |
1A |
| Code FV1 |
Pre-installation for reversing camera with inside rearview mirror |
1B |
| Code FV1 |
Pre-installation for reversing camera with inside rearview mirror |
29B |
| Code FV1 |
Pre-installation for reversing camera with inside rearview mirror |
29B |
| Code FV1 |
Pre-installation for reversing camera with inside rearview mirror |
29C |
| Code FV1 |
Pre-installation for reversing camera with inside rearview mirror |
48B |
| Code FV1 |
Pre-installation for reversing camera with inside rearview mirror |
48C |
| Code FV1 |
Pre-installation for reversing camera with inside rearview mirror |
48C |
| Code PA7 |
|
48B |
| F55/3 |
Fuse block 3 (9-pin) |
52L |
| F55/3 |
Fuse block 3 (9-pin) |
67L |
| F55/3f25 |
Fuse 25 |
66K |
| F55/3f25 |
Fuse 25 |
50K |
| F55/5 |
Fuse block 5 (9-pin) |
23L |
| F55/5 |
Fuse block 5 (9-pin) |
32L |
| F55/5 |
Fuse block 5 (9-pin) |
44L |
| F55/5 |
Fuse block 5 (9-pin) |
5L |
| F55/5f42 |
Fuse 42 |
43K |
| F55/5f42 |
Fuse 42 |
31K |
| F55/5f42 |
Fuse 42 |
22K |
| F55/5f42 |
Fuse 42 |
3K |
| N10 |
SAM control unit |
10L |
| N10 |
SAM control unit |
38L |
| N10 |
SAM control unit |
57L |
| W105/3 |
Driver seat frame ground point 3 |
26L |
| W29/8 |
Left D-pillar ground point |
47L |
| W29/8 |
Left D-pillar ground point |
70L |
| W43/3 |
Left firewall ground point |
8L |
| W43/3 |
Left firewall ground point |
35L |
| W43/3 |
Left firewall ground point |
55L |

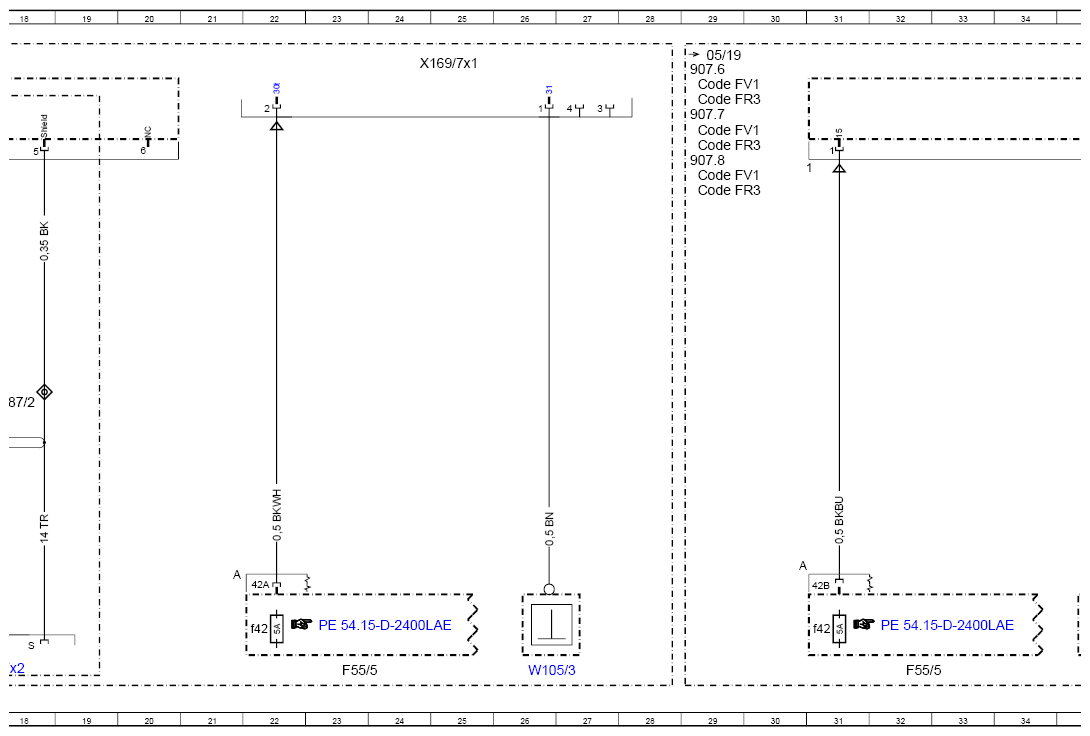

| X169/7x1 |
Reversing camera electrical connector 1 |
25A |
| X169/7x2 |
Reversing camera electrical connector 2 |
17L |
| X169/7x2 |
Reversing camera electrical connector 2 |
13L |
| Z287/1 |
Inside rearview mirror display video signal end sleeve |
16G |
| Z287/1 |
Inside rearview mirror display video signal end sleeve |
60G |
| Z287/2 |
Inside rearview mirror display video signal shielding end sleeve |
18G |
| Z287/2 |
Inside rearview mirror display video signal shielding end sleeve |
62G |
| Z38/1 |
Backup lamp connector sleeve |
10G |
| Z38/1 |
Backup lamp connector sleeve |
38G |
| Z38/1 |
Backup lamp connector sleeve |
57G |
