Remove/Install Side Stowage Tray On Instrument Panel - Ar68.10-D-0006TS
Model 907
Shown with code FJ1 (Hinged lid for stowage compartment) and with code HH4 (THERMOTRONIC automatic climate control)
| Notes on carrying out repair work in the vehicle interior | AH68.00-N-0001-01S | ||
| Remove/install | |||
| 1 | Remove ashtray from mount of left and/or right stowage tray (1) | Model 907 with code V85 (Package SMOKER) |
|
| 2 | Remove side cover or left and/or right stowage tray (1) | AR68.10-D-0004TS | |
| 3 | Remove screws (2) of left and/or right stowage tray (1) | ||

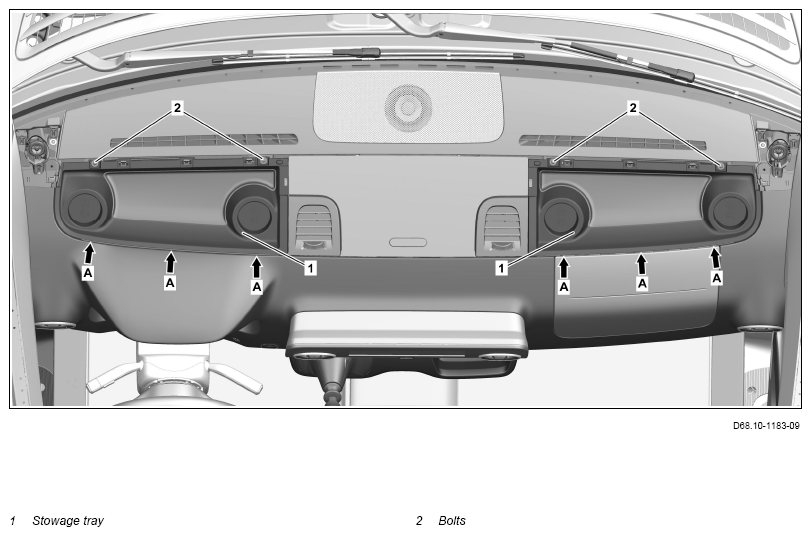

| 4 | Unclip left and/or right stowage tray (1) from instrument panel (arrows A) and remove | Fig 1 | |
| 5 | Install in the reverse order |
