Remove/Install Rear Side Wall Trim In Passenger Compartment - Ar68.30-D-1208TSR

Model 907.6/7

Model 907.843/855

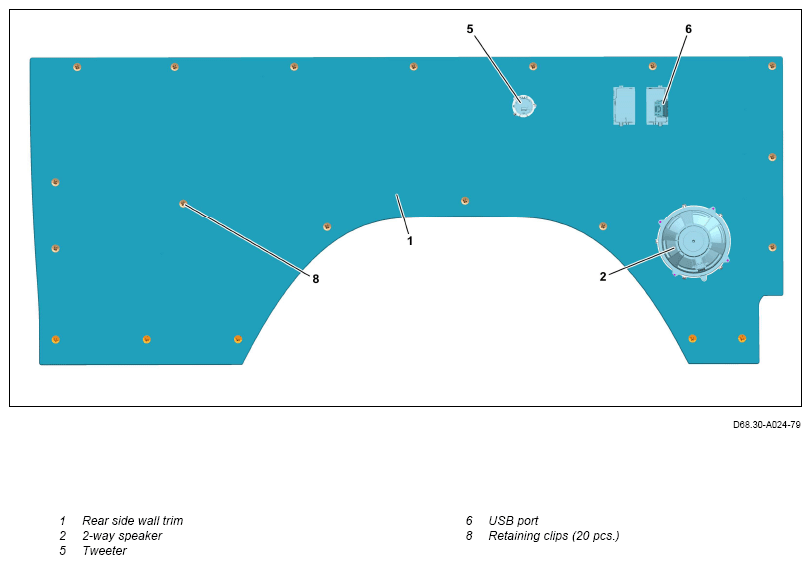

Shown on model 907.7 with code EL9 (2-way speaker system, front and rear)

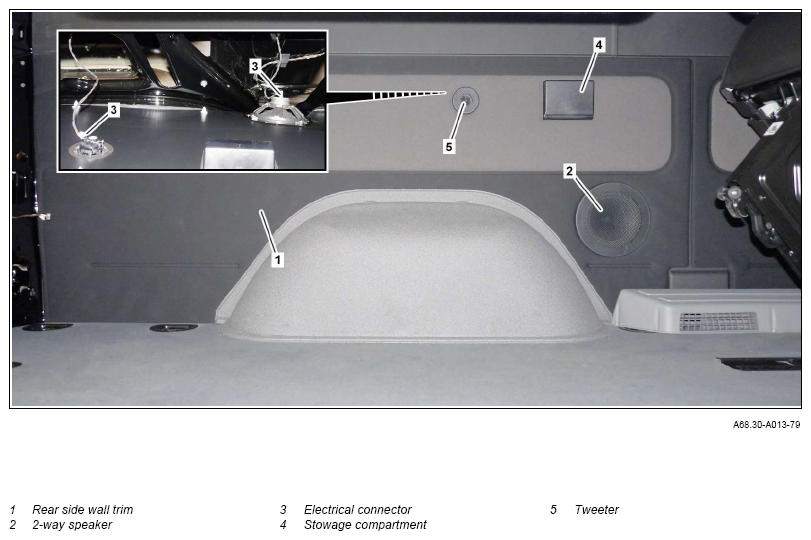

Shown on model 907.7 with code EL9 (2-way speaker system, front and rear) and with code V21 (Luxury trim)

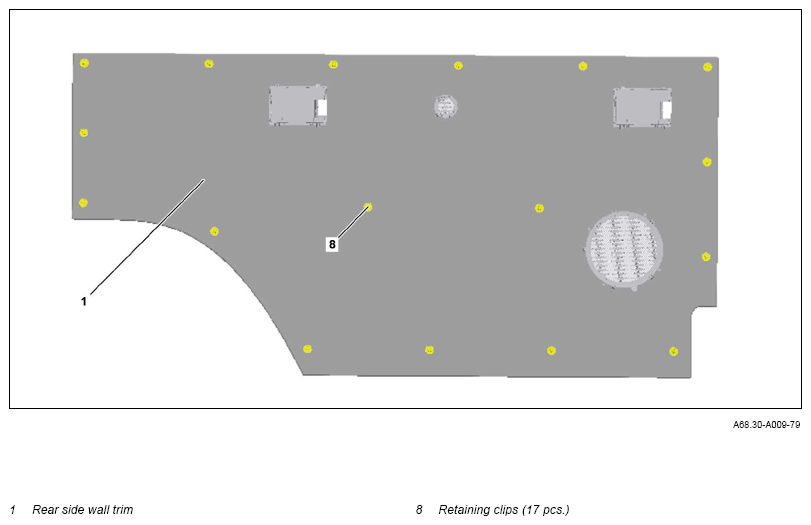

Shown on model 907.8

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on carrying out repair work in the vehicle interior		AH68.00-N-0001-01S
	Remove/install
1	Remove passenger bench seat.	Model 907.843/855	AR91.21-A-4425TSL
2	Remove left/right D-pillar trim.		AR68.30-D-4497TSR
3	Unclip rear side wall trim (1) from retaining clips (8) and remove from side wall until electrical connectors (3) are accessible.	The number of electrical connectors (3) varies depending on the vehicle equipment.
		Long wedge	Fig 1
		Pulling hook	Fig 2
4	Release and disconnect electrical connectors (3).	The number of electrical connectors (3) varies depending on the vehicle equipment.
5	Remove rear side wall trim (1) from the side wall.
	Check
6	Check retaining clips (8) for damage.	If a retaining clip (8) is damaged, ↓ replace retaining clip (8).
7	Install in the reverse order.
	Check
8	Carry out function test of all component parts that are integrated in the rear side wall trim (1)

Fig 1: Long Wedge (115 589 03 59 00)

Fig 2: Pulling Hook (655 589 07 63 00)
