Remove/Install Front Side Wall Trim In Passenger Compartment - Ar68.30-D-1209TSR

Model 907.6/7/8

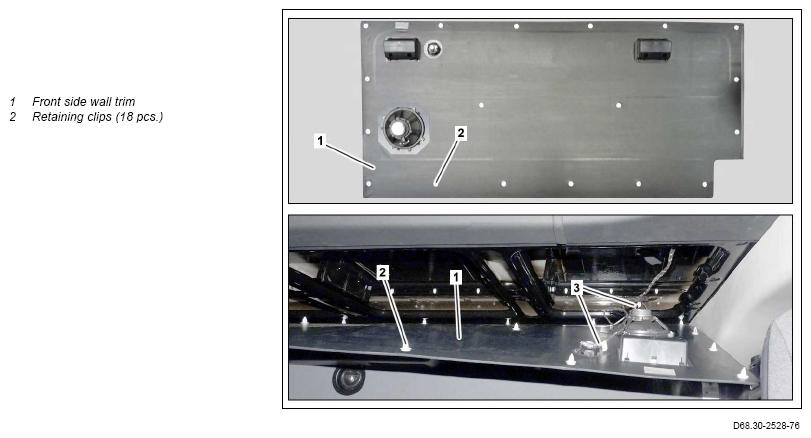

Shown on model 907.7 with code EL9 (2-way speaker system, front and rear), at left front side wall trim (1)

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on carrying out repair work in the vehicle interior		AH68.00-N-0001-01S
	Remove/install
1	Remove passenger bench seat.	Model 907.8 If the front left side wall trim is removed.	AR91.21-A-4425TSL
2	Unclip front side wall trim (1) from the retaining clips (2) and remove from the side wall until the electrical connectors are accessible.	The number of electrical connectors varies according to vehicle equipment.
		Model 907.8 Long wedge	Fig 1
		Model 907.6/7 Pulling hook	Fig 2
3	Disconnect electrical connectors and remove front side wall trim (1) from the side wall.	The number of electrical connectors varies according to vehicle equipment.
	Check
4	Check retaining clips (2).	If the retaining clips (2) are damaged ↓ Replace damaged retaining clips (2).
5	Install in the reverse order.
	Check
6	Perform function test of all components of front side wall trim (1).

Fig 1: Long Wedge (115 589 03 59 00)

Fig 2: Pulling Hook (655 589 07 63 00)
