Rear Axle - Oil Change - AP35.00-D-3501TSE

Model 907 with rear axle 748.250 with code ZJ8 (Configuration Mercedes-Benz Minibus (MBM))

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
Caution	Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Special instructions for lifting and supporting vehicle		AH00.60-N-0100-01TS
	Draining
1	Lift vehicle with lifting platform.
			AR00.60-D-1000-04TS

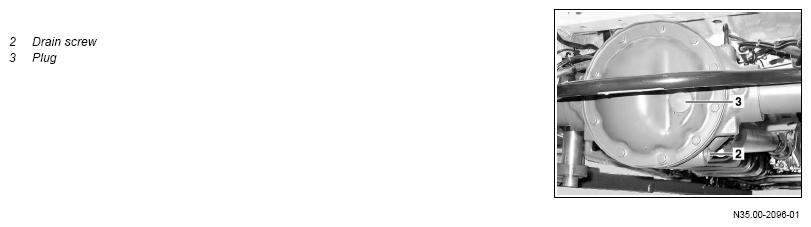

2	Clean area surrounding drain screw (2) and stop plug (3).
3	Remove stop plug (3).
4	Unscrew drain screw (2) and completely drain off transmission oil.	To do so, place a suitable receptacle under the drain screw (2).
5	Screw in new drain screw (2) with new sealing ring.	Drain screw	*BA35.10-N-1001-03A
	Pour in
6	Fill transmission with oil.	Always comply with the specified filling capacity. An incorrect oil filling capacity may lead to material damage. Gear oil	*BF35.10-N-1001-01A
7	Install stop plug (3).
8	Lower vehicle with vehicle lift.
9	Confirm conducted operations in maintenance booklet or in Digital Service Booklet (DSB).
