Remove/Install Electric Parking Brake Actuator Motor - Ar42.20-D-0600TS

Model 907

with code B25 (Electric parking brake)

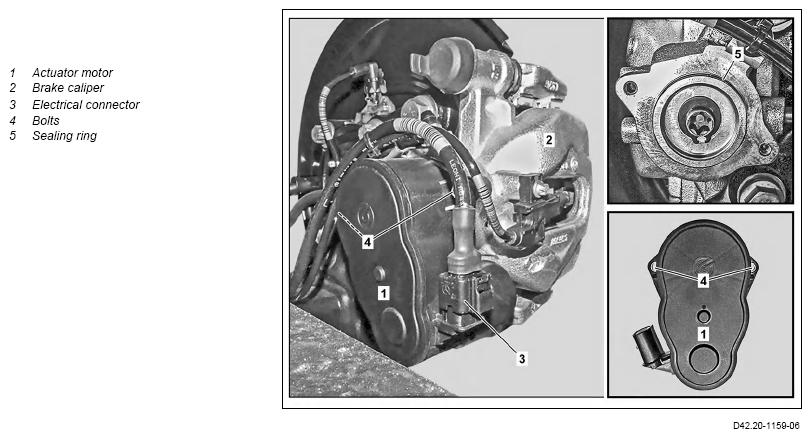

Shown on left side of vehicle

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
	Brake fluid notes		AH42.50-P-0001-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on repairs to brake system		AH42.00-P-0003-01A
	Remove/install
1	Clean area surrounding cap of brake fluid reservoir.	Assembly cleaner	*BR00.45-Z-1028-04A
2	Remove cap from brake fluid reservoir.
3	Check fill level in brake fluid reservoir.	The fill level must not be above the maximum marking. This prevents the brake fluid reservoir from overflowing when the brake pistons are pushed back. If the fill level in brake fluid reservoir is too high, ↓ extract brake fluid.
		Commercially available tools:  Extraction bellows
4	Move rear axle brake pads into assembly position.		AR42.10-D-1710-01TS
	Notes on carrying out repair work in the vehicle interior	Do not operate the service brake while "Move to assembly position" is shown. Otherwise, the spindle of the brake caliper (2) will be damaged.	AH68.00-N-0001-01S
5	Raise vehicle.		AR00.60-D-1000-04TS
	Special instructions for lifting and supporting vehicle		AH00.60-N-0100-01TS
6	Remove electrical connector (3).
7	Remove actuator motor (1).	Replace actuator motors (1) in pairs only. Otherwise, the different operating times may result in an inadequate braking effect. For this purpose, remove bolts (4). Model 907 with code B25 (Electric parking brake) except code IT5 (5.0 tonner) Model 907 with code B25 (Electric parking brake) with code IT5 (5.0 tonner) If there is brake fluid between the actuator motor (1) and the brake caliper (2), ↓ check brake caliper (2) on the vehicle for brake fluid loss. If corresponding brake fluid loss is present, ↓ replace brake caliper (2).	*BA42.10-N-1005-12TS
		Remove/install rear-axle brake caliper Replace brake calipers (2) in pairs only. Otherwise, the different operating times may result in an inadequate braking effect.	AR42.10-D-0080TS
8	Remove sealing ring (5) and check for damage.	If sealing ring (5) is damaged, ↓ Replace sealing ring (5).
9	Install in the reverse order.

REAR AXLE BRAKE CALIPER
