Check Information Label For Folding Parking Brake Lever (Code: Vs3BREMHEB, Acc. No.: 42 940 60) - SM42.00-D-0007SG

Model 907

with code BE2 (Handbrake lever, folding)

with code ZU8 (National version for USA)

Operation no. of the operation texts or standard texts and flat rates
Category	Op. no.	Operation text	Acc. no.	Code
L	02 1714	Operations: Check information label for folding parking brake lever	42 940 60	VS3BREMHEB
L	02 1715	Operations: Retrofit information label for folding parking brake lever (after check)	42 940 60	VS3BREMHEB

G13787514

	Check
1	Check, whether the vehicle is affected by the measure.	Only the entry in the "Extended VEGA Application" (EVA) system in the "Current" tab is decisive for authorized Mercedes-Benz service partners. An additional test of the affected vehicles in the workshop information system (WIS) or vehicle list is thereby not necessary.

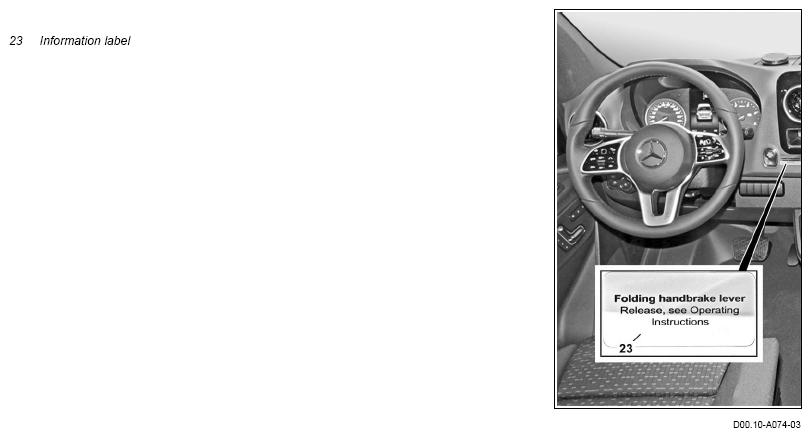

2	Check whether information label (23) is installed.	The information label (23) is located next to the start/stop button. If information label (23) is installed: ↓ End the measure. If information label (23) is not installed: ↓ Continue with operation step 3.
	Retrofit
3	Retrofit information label (23) as shown.	Bonding surface must be absolutely free of dust and grease. Otherwise, a sufficient degree of adhesion cannot be assured. Cleaner	*BR00.45-Z-1025-04A

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71

PARTS ORDERING NOTE

Part no.	Designation	Quantity
A 906 584 85 07	Information label for folding parking brake lever	1
