Check Brake Hoses On Front And Rear Axle (Code: Vs3MONTLAU, Acc. No.: 42 960 91) - SM42.10-D-0044SG
Model 907
| Operation no. of the operation texts or standard texts and flat rates | ||||
|---|---|---|---|---|
| Category | Op. no. | Operation text | Acc. no. | Code |
| L | 02 1106 | Operations: Check brake hoses at front and rear axle | 42 960 91 | VS3MONTLAU |
| L | 02 1107 | Operations: Replace brake hose on front axle (after check) | 42 960 91 | VS3MONTLAU |
| L | 02 1108 | Operations: Replace 2 brake hoses on front axle (after check) | 42 960 91 | VS3MONTLAU |
| L | 02 1109 | Operations: Replace ..... brake hose on rear axle (after check) | 42 960 91 | VS3MONTLAU |
| L | 02 1110 | Operations: Replace 2 brake hoses on rear axle (after check) | 42 960 91 | VS3MONTLAU |
| L | 02 1111 | Operations: Bleed hydraulic brake system (brake hoses replaced) | 42 960 91 | VS3MONTLAU |
| Important! |
| A second person (four-eyes principle) is required to carry out the check of the brake hoses. |

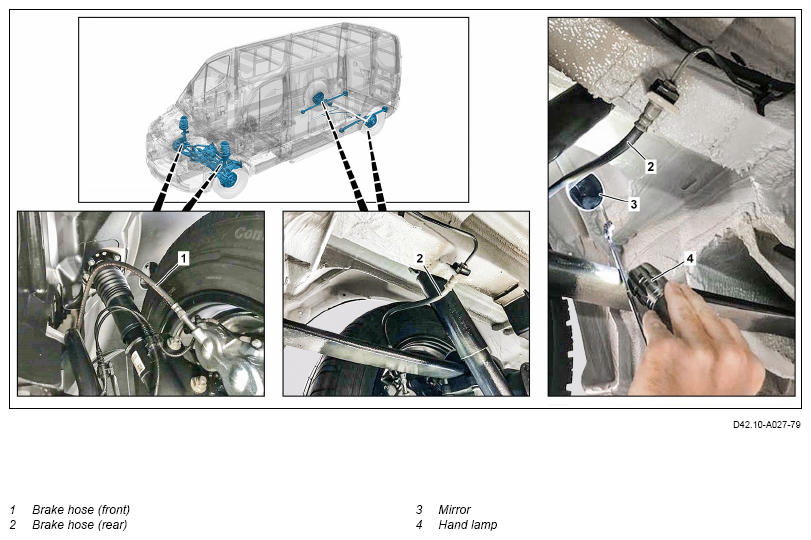

Shown on model 907
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| Brake fluid notes | AH42.50-P-0001-01A | ||
| Check | |||
| 1 | Check, whether the vehicle is affected by the measure. | Affected vehicles: Check brake hoses on front and rear axle (Code: VS3MONTLAU, acc. no.: 42 960 91) Model 907.### #P as of 001955 up to 280719 |
SM42.10-D-0044-01AAA |
| 2 | Raise vehicle. Special instructions for lifting and supporting vehicle |
AH00.60-N-0100-01TS | |
| AR00.60-D-1000-04TS | |||

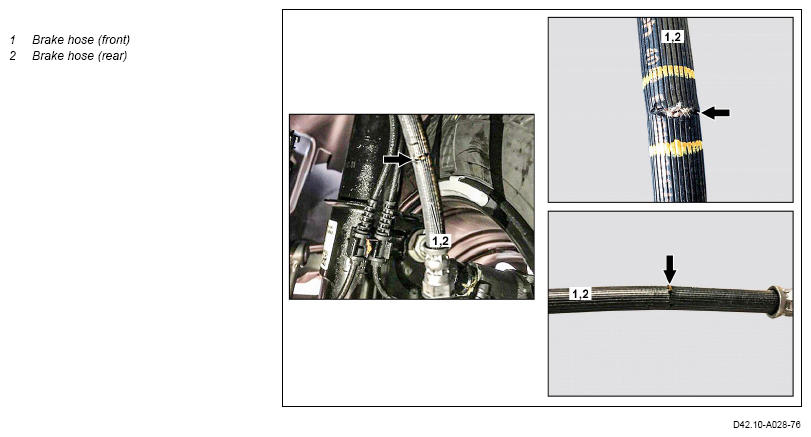

| 3 | Check brake hoses (front) (1) and brake hoses (rear) (2) for damage. | If one or more brake hoses (1, 2) are damaged: ↓ continue with operation step 4. If all brake hoses are OK: ↓ Lower vehicle and end measure. |
|
| Remove/install | |||
| 4 | Replace damaged brake hoses (1, 2). | ||
| Remove/install brake hose on front axle | AR42.10-D-0026TS | ||
| Remove/install brake hose on rear axle | AR42.10-D-0023TS | ||
| 5 | Lower vehicle. |
PARTS ORDERING NOTE
| Part no. | Designation | Quantity |
|---|---|---|
| A 000 989 08 07 11 | Brake fluid (1L) | n.B. |
| Front brake hose (see XENTRY parts information) | n.B. | |
| Rear brake hose (see XENTRY parts information) | n.B. |
