Bring Up Workshop Level On Instrument Cluster - AP00.20-D-0046TSC

Model 907

except code C6L (Multifunction steering wheel)

	Open workshop level

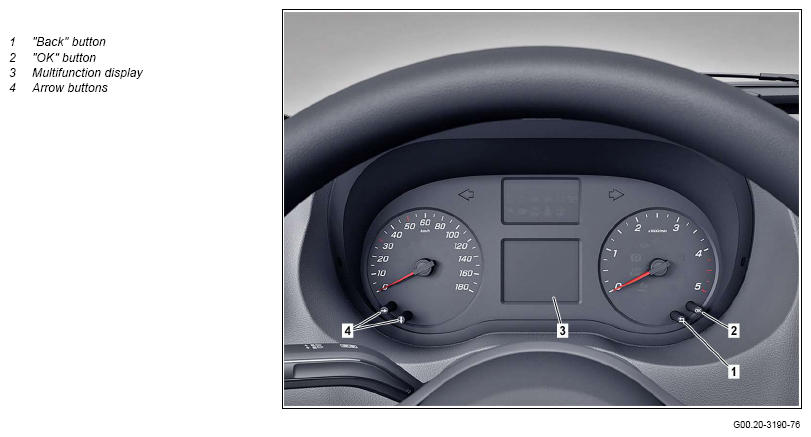

1	Switch electronic ignition lock control unit (EZS) to position "1" (circuit 15R).	The multifunction display (3) may not have any fault messages on it.
2	Use the "Back" button (1) to select the "Total distance" standard display in the multifunction display (3).
3	Press and hold "Back" button (1) for 2 seconds and then press "OK" button (2).	The workshop menu appears in the multifunction display (3) with the menu items: "Vehicle data", "Dynamometer test", "Remote access", "Change brakepad", "ASSYST PLUS".
	Close workshop level
4	Press "Back" (1) button repeatedly until the "Total distance" standard display appears in the multifunction display (3).
5	Switch electronic ignition lock control unit (EZS) to position "0" (circuit 15R).
