Bring Up Workshop Level On Instrument Cluster - AP00.20-D-0046TS

Model 907

with code C6L (Multifunction steering wheel)

	Preparatory activity
1	Close hood, doors and sliding doors.
2	Switch electronic ignition lock control unit (EZS) to position "1" (circuit 15R).
	Open workshop level

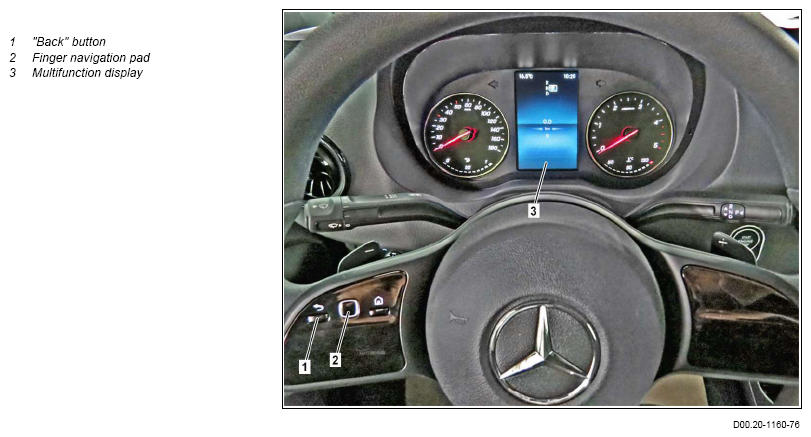

3	Using swipe movements on the finger navigation pad (2) to select the "Total distance" standard display in the multifunction display (3).	The multifunction display (3) may not have any faullt messages on it.
4	Press and hold "Back" (1) button for 2 s and press on finger navigation pad (2).	The multifunction display (3) then shows the Workshop menu with the menu items: "Vehicle data", "Dynamometer test", "Remote access", "Change brakepad", "ASSYST PLUS".
	Close workshop level
5	Press "Back" (1) button repeatedly until the "Total distance" standard display appears in the multifunction display (3).
	Finishing activity
6	Switch electronic ignition lock (EZS) control unit to position "0".
