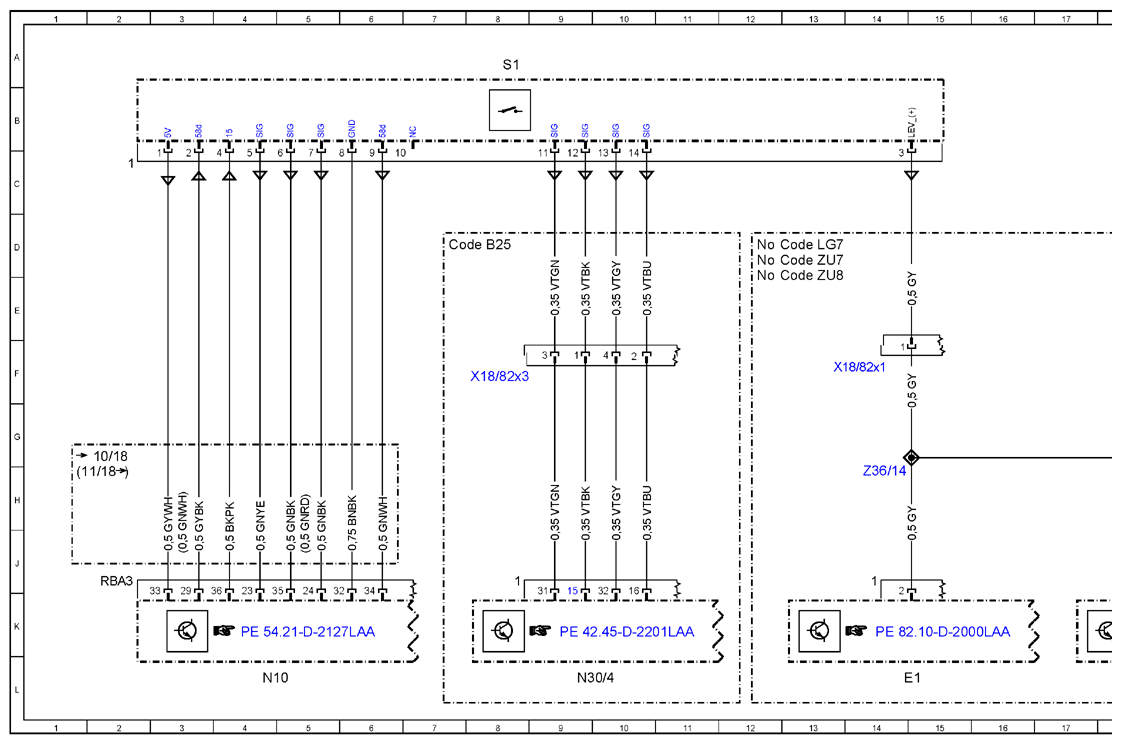

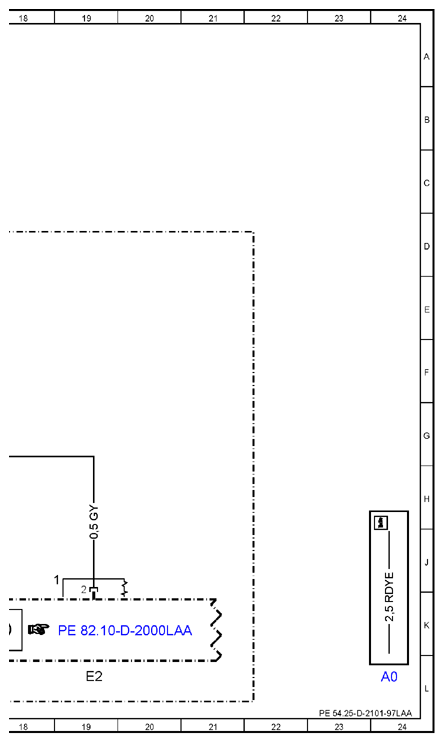

Wiring Diagram For Exterior Illumination And Electric Parking Brake Switch Group - Pe54.25-D-2101-97LAA

Code:	Designation:	Position:
AO	Color code key	24L
Code B25	Electric parking brake	7D
Code LG7	LED High Performance headlamps	12D
Code ZU7	Canada national version	12D
Code ZU8	USA national version	12E
E1	Left front lamp unit	14L
E2	Right front lamp unit	19L
N10	SAM control unit	4L
N30/4	ESP® control unit	9L
S1	Light switch	8A
X18/82x1	Right cockpit/MWH electrical connector 1	13F
X18/82x3	Right cockpit/MWH electrical connector 3	8F
Z36/14	Headlamp range adjustment signal connector sleeve	14H
