| AO |
Color code key |
64L |
| Code E2A |
Tapping of body manufacturer special signals in cockpit |
6E |
| Code E5M |
Extension of PSM standard contact |
39G |
| Code E5M |
Extension of PSM standard contact |
43G |
| Code FE9 |
1 DIN slot under cockpit, front passenger side |
17E |
| Code L10 |
Lights for left-hand traffic system |
40H |
| Code L10 |
Lights for left-hand traffic system |
44H |
| Code PY2 |
Hymer Group scope of supply |
39G |
| Code PY2 |
Hymer Group scope of supply |
43G |

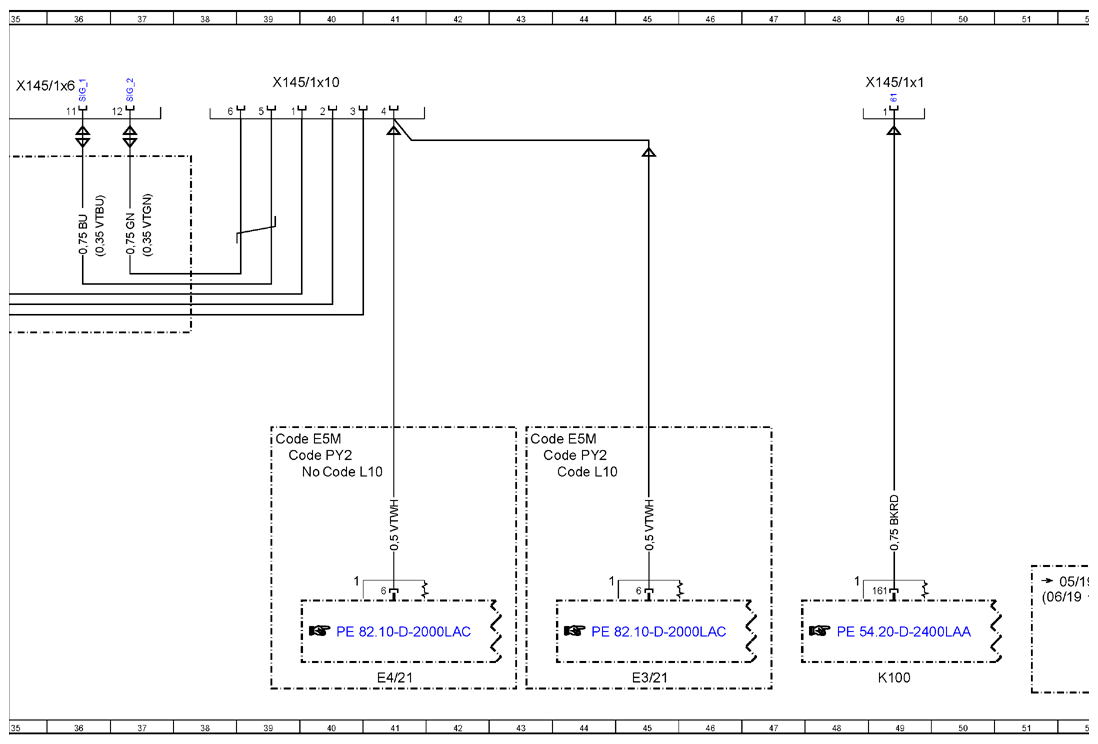

| E3/21 |
Left platform tail lamp |
45L |
| E4/21 |
Right platform tail lamp |
41L |
| F152 |
Vehicle interior fuse and relay module |
19L |
| F152 |
Vehicle interior fuse and relay module |
9L |
| F152f15-2 |
Electrical fuse 15-2 |
18K |
| F152f30t |
Electrical fuse 30t |
7K |

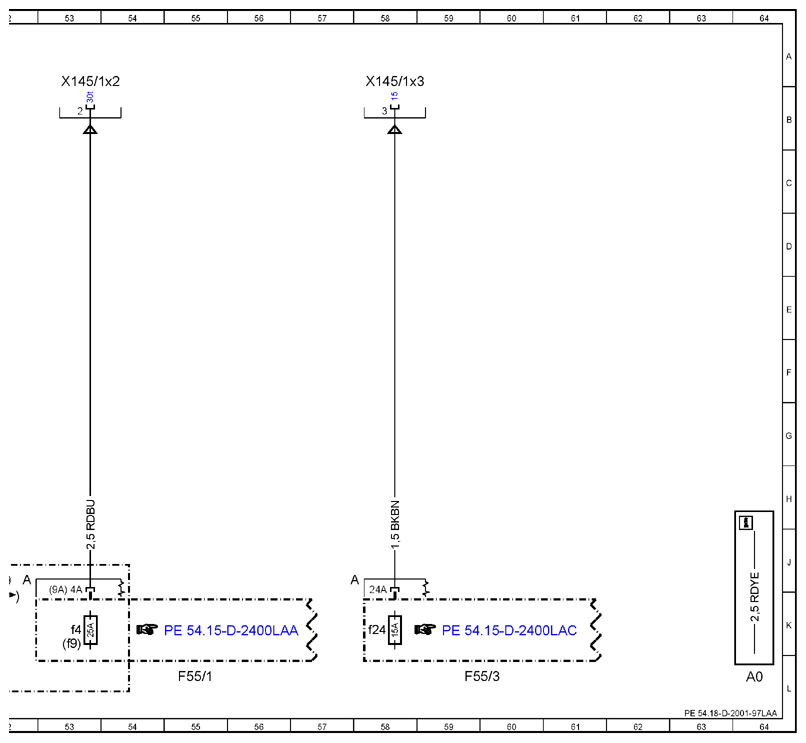

| F55/1 |
Fuse block (1, 9-pin) |
55L |
| F55/1f4 |
Fuse 4 |
53K |
| F55/1f9 |
Fuse 9 |
53K |

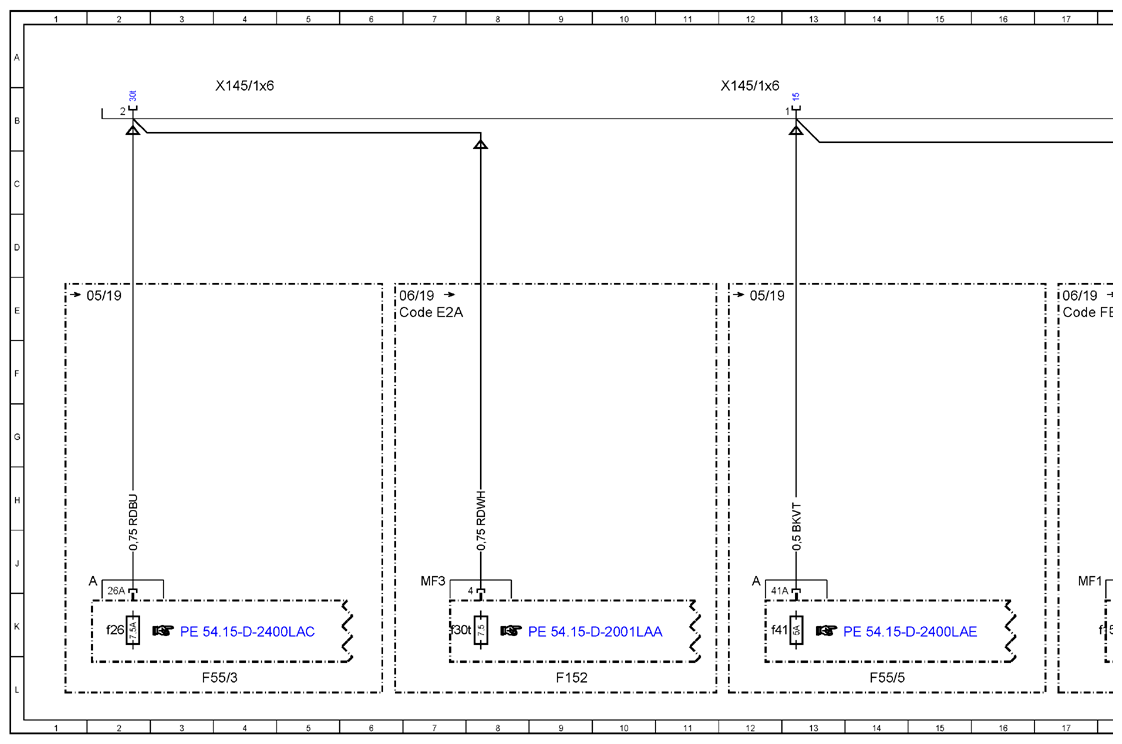

| F55/3 |
Fuse block 3 (9-pin) |
3L |
| F55/3 |
Fuse block 3 (9-pin) |
59L |
| F55/3f24 |
Fuse 24 |
58K |
| F55/3f26 |
Fuse 26 |
2K |
| F55/5 |
Fuse block 5 (9-pin) |
14L |
| F55/5f41 |
Fuse 41 |
12K |
| K100 |
Driver seat base relay holder |
49L |
| N10 |
SAM control unit |
28L |
| W43/3 |
Left firewall ground point |
23L |
| W43/4 |
Right firewall ground point |
23L |
| X145/1x1 |
Body manufacturer electrical connector 1 |
49A |
| X145/1x10 |
Body manufacturer electrical connector |
39A |
| X145/1x2 |
Body manufacturer electrical connector 2 |
53A |
| X145/1x3 |
Body manufacturer electrical connector 3 |
58A |
| X145/1x6 |
Body manufacturer electrical connector |
4B |
| X145/1x6 |
Body manufacturer electrical connector |
36B |
| X145/1x6 |
Body manufacturer electrical connector |
12B |
| X145/1x6 |
Body manufacturer electrical connector |
20B |
| X145/1x6 |
Body manufacturer electrical connector |
28B |
| X18/82x4 |
Right cockpit/MWH electrical connector 4 |
30F |

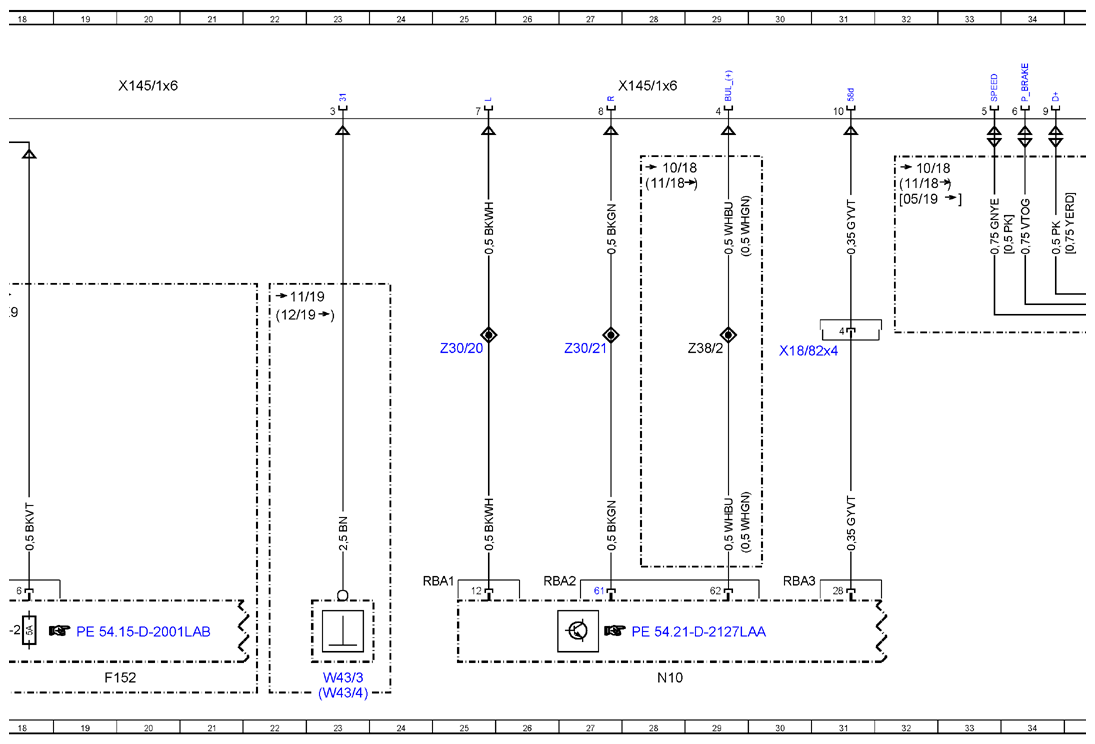

| Z30/20 |
Left turn signal lamp end sleeve |
25F |
| Z30/21 |
Right turn signal lamp end sleeve |
27F |
| Z38/2 |
Backup lamp connector sleeve |
29F |
