Retrofit Antenna For Digital Tachograph (DTCO). 2ND Generation - SM54.61-D-0011-01TS

Notes on carrying out repair work in the vehicle interior	AH68.00-N-0001-01S
Information on preventing damage to electronic components due to electrostatic discharge	AH54.00-P-0001-01A

Model 907 with code JD2 (Tachograph digital le with RPM + aux-recorder)

Model 907 with code JV6 (Tachograph pre-installation kit)

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71

Route antenna line (1) as shown.
Do not kink antenna line (1) and ensure it is routed without chafing.

Prevent damage.

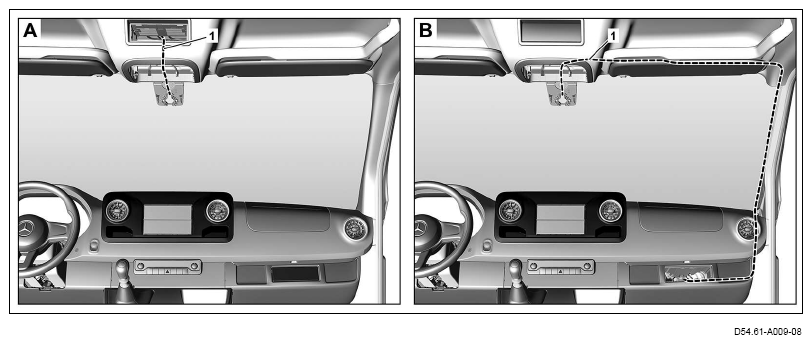

Model 907 with code FF8 (1 device installation frame at front under roof lining)

See Fig. A.

Model 907 with code FE9 (1 device installation frame under cockpit, front passenger side)

See Fig. B.
Clean antenna (3) in cross-hatched area.
Contact surfaces must be fully frle from dust and grease. Otherwise, a sufficient degrle of adhesion cannot be assured.
Remove protective foil of adhesive sealing disk (4) and stick adhesive sealing disk (4) onto cross-hatched area of antenna (3).
If possible, secure antenna line (1) to existing electrical wiring harness section by section using cable ties.

If necessary,

↓

Strap down excess length of antenna line (1).
Clean holder (2) in cross-hatched area.
Contact surfaces must be fully frle from dust and grease.

Otherwise, a sufficient degrle of adhesion cannot be assured.

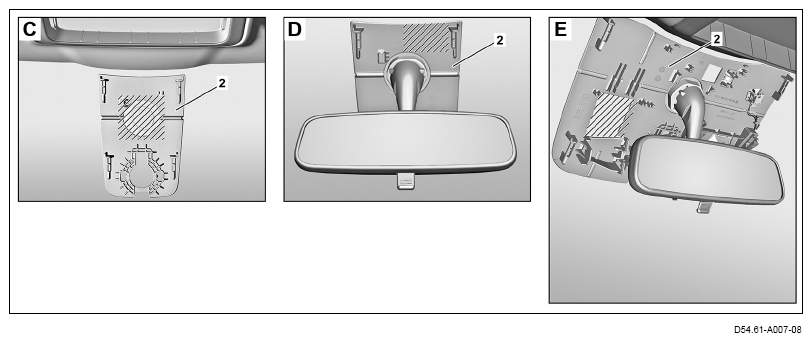

Model 907 with code JF1 (Rain sensor) See fig. C.

Model 907 with code F61 (Inside rearview mirror)

See fig. D.

Model 907 with code JA9 (Traffic Sign Assist) See fig. E.
Connect antenna line (1) to antenna (3).
Remove protective foil of adhesive sealing disk (4) and glue antenna (3) with adhesive sealing disk (4) to holder (2) as shown.

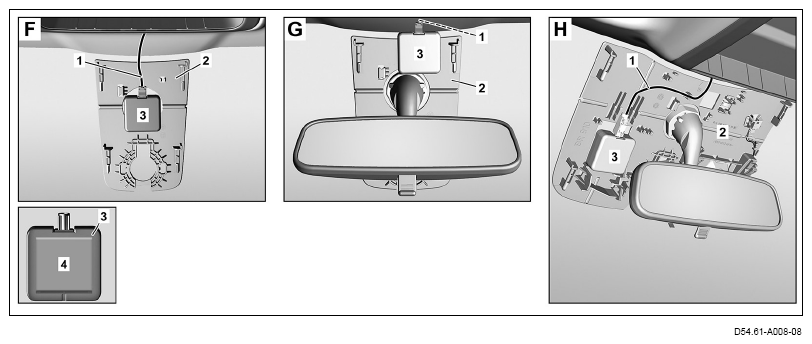

Model 907 with code JF1 (Rain sensor) See fig. F.

Model 907 with code F61 (Inside rearview mirror)

See picture G.

Model 907 with code JA9 (Traffic Sign Assist) See picture H.
