Remove/Install Window Frame Lining Between Front Window And Middle Window In Side Wall - Ar68.30-D-0027TSR

Model 907.6/7

Shown on model 907.7 on the left side of the vehicle with code IR6 (wheelbase 4,325 mm, overhang 1,615 mm) with code V21 (luxury interior trim), with code UD6 (passenger compartment seating, 4-seater bench 3rd row) and except code T19 (left sliding door) for removed passenger bench seats

	Notes on carrying out repair work in the vehicle interior		AH68.00-N-0001-01S
	Remove/install
1	Remove window frame lining (2).		AR68.30-D-0021TSR
2	Remove window frame lining (3).		AR68.30-D-0022TSR

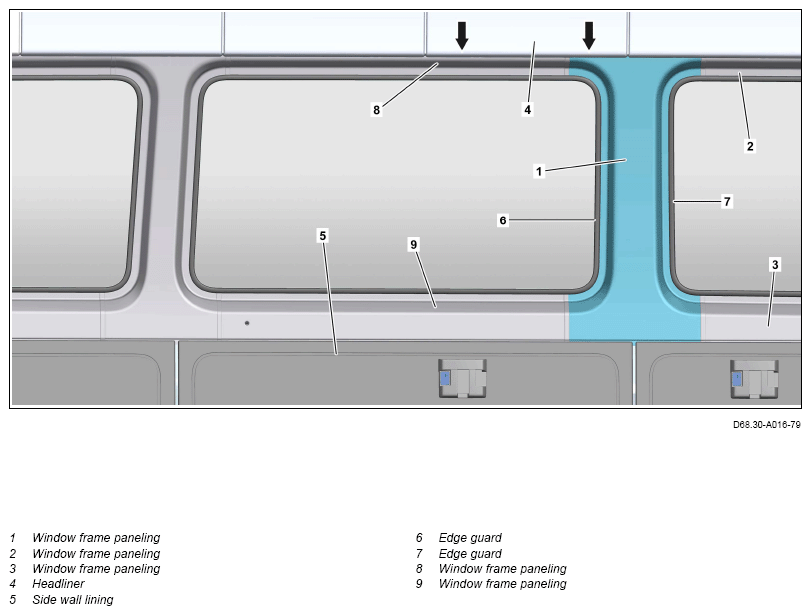

3	Release roof lining (4) at the retaining tabs (arrows) from the side wall in the area of the center window.
4	Release side wall trim (5) in the area of the window frame lining (1).	Model 907.6/7 with code IR6 (Wheelbase 4325 mm, overhang 1615 mm) Model 907.6/7 with code IR7 (Wheelbase 4325 mm, overhang 2015 mm)	AR68.30-D-1211TSR
5	Release edge guards (6, 7) in the area of the window frame lining (1).
6	Lift window frame lining (1), pry off, and remove.	: Ensure that the window frame linings (8, 9) overlap the window frame lining (1). The window frame lining (1) is bonded to the side wall using tape.
		Long wedge	Fig 1
7	Remove masking tape residues from the side wall with a suitable tool.	Cleaner	*BR00.45-Z-1025-04A
8	Remove masking tape residues from the window frame lining (1) with a suitable tool.	When reusing the window frame lining (1).
		Cleaner	*BR00.45-Z-1025-04A
9	Attach new adhesive tape strips to the window frame lining (1).	When reusing the window frame lining (1). Ensure that the adhesive strips are positioned in the same way as the adhesive strips that were removed previously. Otherwise adhesion problems may occur.
		Double-sided tape with polyethylene foam support, Scotch-Mount 9528	*BR00.45-Z-1197-02A
10	Install in the reverse order

Fig 1: Long Wedge (115 589 03 59 00)
