Remove/Install Trim On Sliding Door Entrance Box - Ar68.30-D-0018TSR

Model 907.6

with code V39 (Plastic floor for people mover)

Model 907.6

with code VK8 (Floor covering, plastic)

Model 907.7

Model 907.8

Shown on model 907.7 with code LB9 (Illuminated exits) on right side of vehicle

Shown on model 907.7 with code LB9 (Illuminated exits) on right side of vehicle

	Notes on carrying out repair work in the vehicle interior		AH68.00-N-0001-01S
	Remove/install

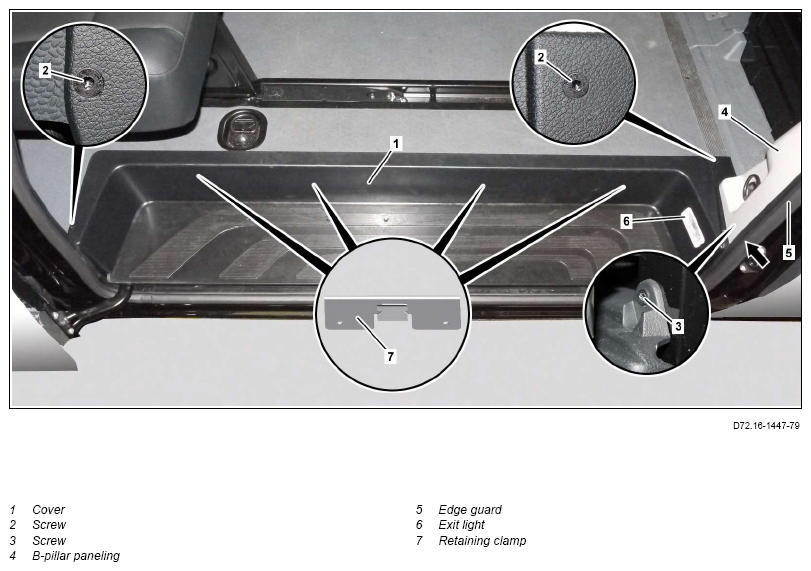

1	Completely open corresponding sliding door and remove screws (2).
2	Release edge guard (5) in front lower area (arrow).
3	Remove grab bar from the B-pillar.	Model 907.8	AR68.70-A-0303TSL
4	Pull away B-pillar trim (4) in the bottom area and remove screw (3).

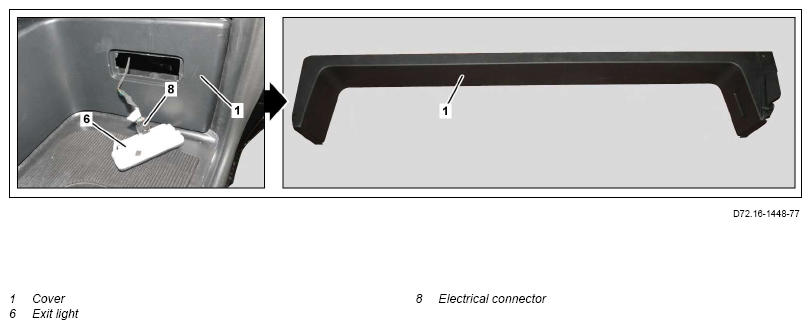

5	Unclip exit lamp (6), disconnect electrical connector (8) and remove exit lamp (6).	Model 907.6 with code LB9 (Illuminated exits); model 907.7 with code LB9 (Illuminated exits)
		Clip remover	Fig 1
6	Remove trim (1) upwards and guide out under B-pillar trim (4) in this connection.	WIS Service Media  wsm://04 201800 10  : Ensure trim (1) is correctly seated on retaining clips (7).
7	Install in the reverse order.
	Check
8	Perform function check of exit lamp (6).	Model 907.6 with code LB9 (Illuminated exits); model 907.7 with code LB9 (Illuminated exits)

Fig 1: Clip Remover (452 589 01 63 00)
