Remove/Install Trim On Sliding Door Entrance Box - Ar68.30-D-0018TSB

Model 907.6

except code V39 (Plastic floor for people mover)

except code VK8 (Floor covering, plastic)

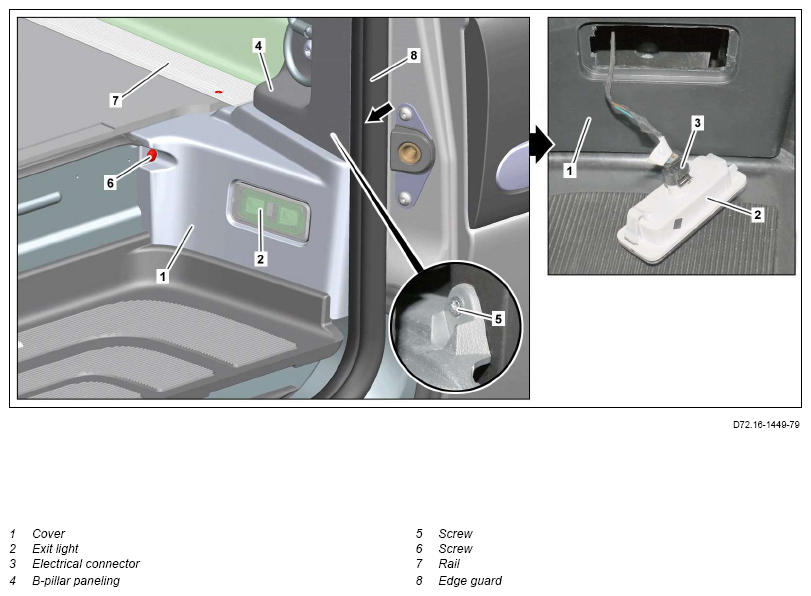

Shown on model 907.6 with code LB9 (Illuminated exits), except code D50 (Full-width partition wall), except code D51 (Full-width partition wall with 1 window) and except code D64 (Partition with sliding door) on right side of vehicle

	Notes on carrying out repair work in the vehicle interior		AH68.00-N-0001-01S
	Remove/install
1	Full open relevant sliding door.
2	Unscrew screw/bolt (6).
3	Release strip (7) in area of trim (1).	Model 907.6 with code V43 (Wood floor) and except code D50 (Full-width partition wall) and except code D51 (Full-width partition wall with 1 window) and except code D64 (Partition with sliding door)
4	Release edge guard (8) in front lower area (arrow).	Model 907.6 except code D50 (Full-width partition wall) and except code D51 (Full-width partition wall with 1 window) and except code D64 (Partition with sliding door)
5	Unclip exit lamp (2), disconnect electrical connector (3) and remove exit lamp (2).	Model 907.6 with code LB9 (Illuminated exits)
6.1	Pull away B-pillar trim (4) in lower area, remove screw (5) and remove trim (1).	Model 907.6 except code D50 (Full-width partition wall) and except code D51 (Full-width partition wall with 1 window) and except code D64 (Partition with sliding door)
6.2	Unscrew screw (5) and remove trim (1).	Model 907.6 with code D50 (Full-width partition wall) and model 907.6 with code D51 (Full-width partition wall with 1 window) and model 907.6 with code D64 (Partition with sliding door)
7	Install in the reverse order.
	Check
8	Perform function test of exit lamp (2).	Model 907.6 with code LB9 (Illuminated exits)
