Remove/Install Tie-Down Rail On Load Compartment Floor - Ar68.50-D-8251TS

Model 907.6

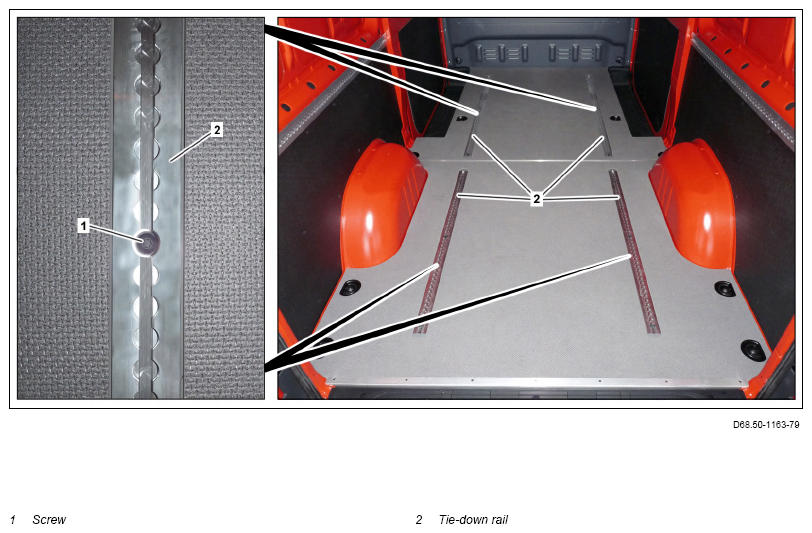

G13791000

Shown on model 907.6

	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on carrying out repair work in the vehicle interior		AH68.00-N-0001-01S
	Remove/install
1	Unscrew screw/bolts (1).	The number of screws (1) can vary depending on the vehicle equipment.
		Screw, tie-down rail to load compartment floor	*BA68.50-D-1003-03TS
2	Remove appropriate tie-down rail (2).
3	Install in the reverse order.

TORQUE SPECIFICATION

CARGO RETAINERS

Number	Designation		Model 907
BA68.50-D-1003-03TS	Screw, tie-down rail to load compartment floor	Nm	18
