Remove/Install Stowage Compartment Above Roof Lining At Front - Ar68.30-D-0015TS

Model 907.6

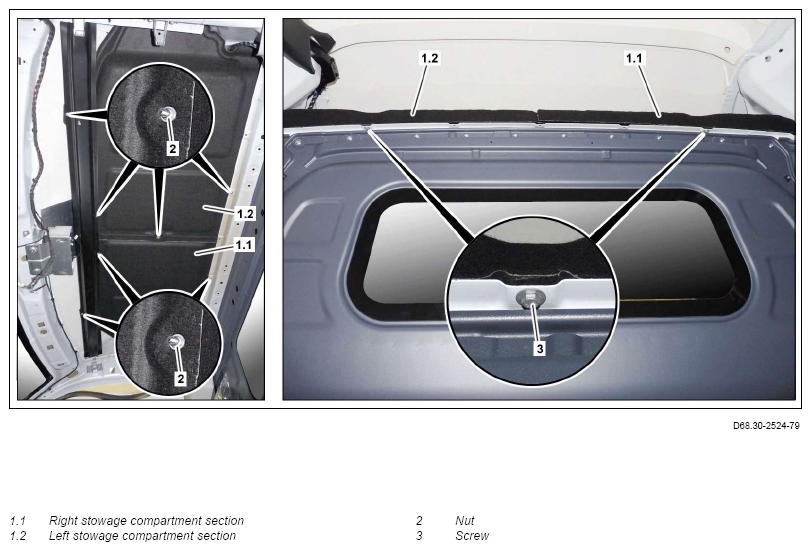

G13790902
  Notes on carrying out repair work in the vehicle interior AH68.00-N-0001-01S
REMOVINGINSTALLING Remove/install
1 Remove front roof lining. AR68.30-D-7607TS
2 Unscrew nuts (2).
3 Remove screw/bolts (3).
4 Remove right stowage compartment section (1.1).
5 Remove left stowage compartment section (1.2).
6 Install in the reverse order.
