Remove/Install Side Lockable Stowage Compartment On Instrument Panel - Ar68.10-D-1516TS
Model 907
| Notes on carrying out repair work in the vehicle interior | AH68.00-N-0001-01S | ||
| Remove/install | |||
| 1 | Remove ashtray from mount of left and/or right stowage compartment (1) | Model 907 with code V85 (Package SMOKER) |
|
| 2 | Open left and/or right stowage compartment (1) | ||
| 3 | Remove screws (2) of left and/or right stowage compartment (1) | ||

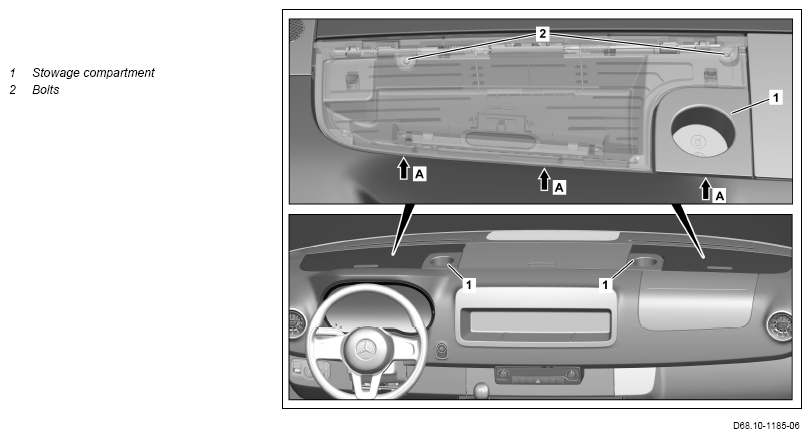

| 4 | Unclip left and/or right stowage compartment (1) from instrument panel (arrows A) and remove | Fig 1 | |
| 5 | Install in the reverse order |
