Remove/Install Lower Trim On Partition - Ar68.30-D-1408TS
Model 907.6
Shown on model 910.6 with code D50 (Full-width partition wall)
| Notes on carrying out repair work in the vehicle interior | AH68.00-N-0001-01S | ||
| Remove/install | |||
| 1 | Remove upper trim at partition. | AR68.30-D-1407TS | |
| 2 | Remove front passenger bench seat. | Model 907.6 with code S23 (Co-driver's seat double seat) |
|
| AR91.10-D-1035TS | |||
| 3 | Remove expansion rivets (2). | ||

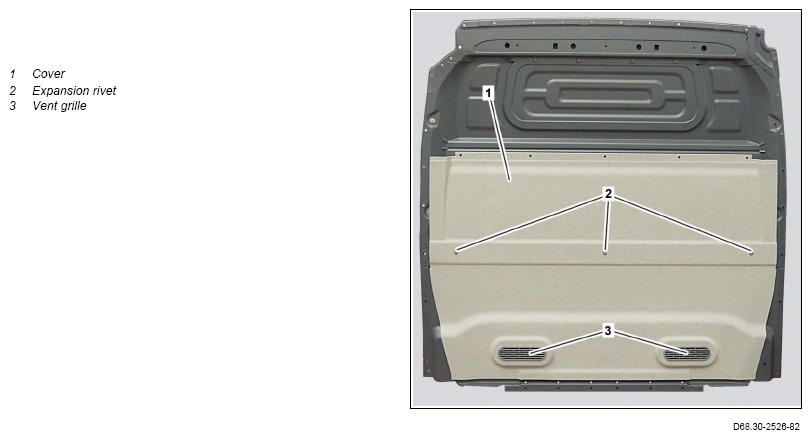

| Fig 1 | |||
| 4 | Release velcro fasteners at rear of trim (1). | ||
| 5 | Guide trim (1) on driver's side out of B-pillar trim and remove from vehicle. | ||
| 6 | Remove vent grilles (3). | If vent grilles (3) or trim (1) are replaced. | |
| 7 | Install in the reverse order. |
