Remove/Install Lower Center Cup Holder On Instrument Panel - Ar68.10-D-0008TS

Model 907

Shown on model 907 with code G42 (7G-TRONIC PLUS)

	Notes on carrying out repair work in the vehicle interior	AH68.00-N-0001-01S
	Remove/install

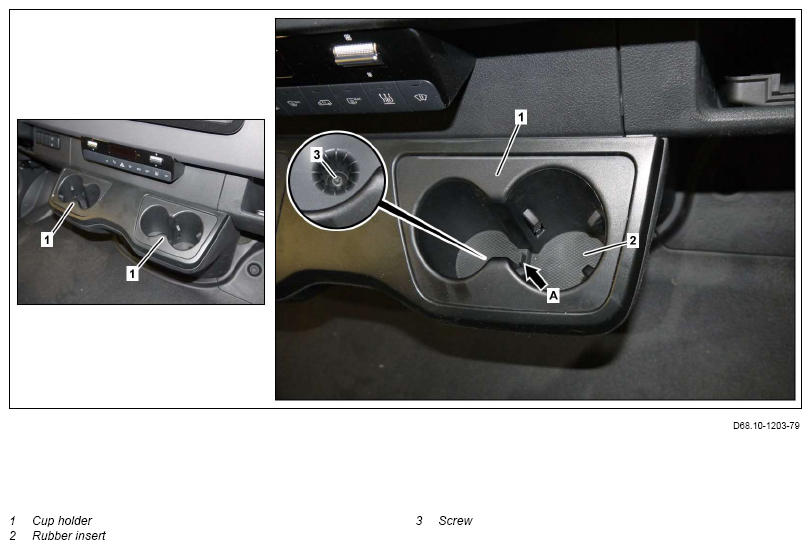

1	Remove rubber insert (2) on shackle (arrow A) from the cup holder (1).
2	Remove screw (3).
3	Remove cup holder (1).
4	Install in the reverse order.
