Notes on carrying out repair work in the vehicle interior |
|
AH68.00-N-0001-01S |
  |
Remove/install |
|
|
| 1 |

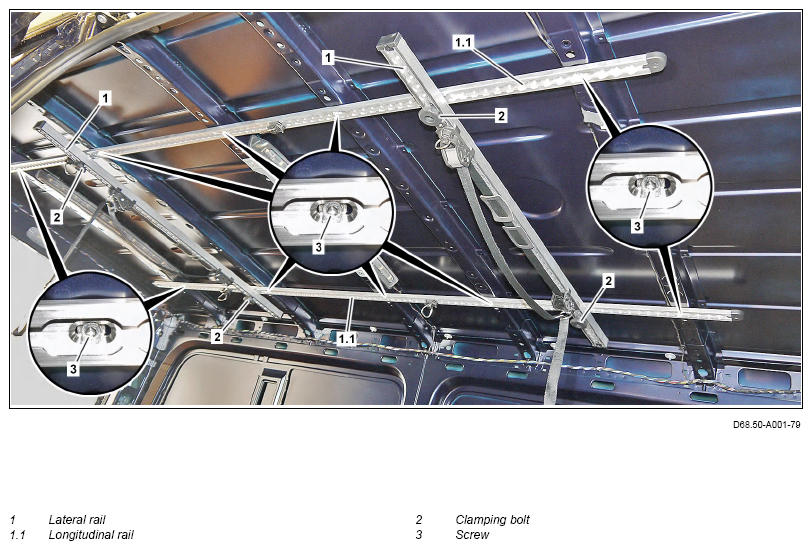

Unfasten clamp screws (2) and remove lateral rails (1). |
|
|
| 2 |
Remove screws (3) and remove longitudinal rails (1.1). |
|
|
| |
Notes on self-locking nuts and bolts |
|
AH00.00-N-0001-01A |
| |
|

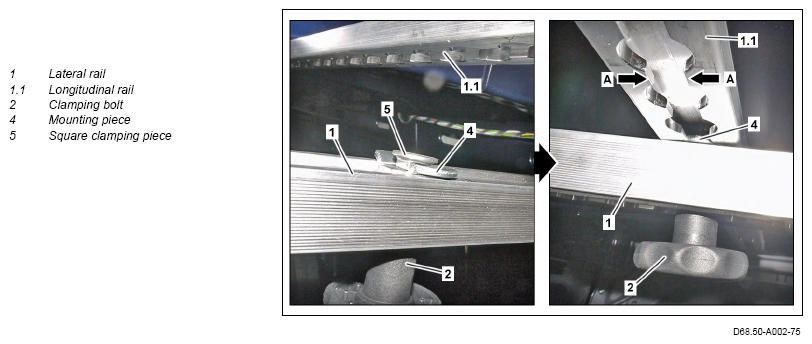

: Ensure that the mounting piece (4) is seated correctly in the longitudinal rail (1.1) and the square clamping piece (5) is seated in one of the narrowings (arrows A) |
|
| |
|
Bolt, mounting rail of interior load carrier to roof bow |
*BA68.50-D-1004-03TS |
| 3 |
Install in the reverse order |
|
|
