Remove/Install Front Partition Wall - Ar68.74-D-0700TSR

Model 907.6

with code D50 (Full-length partition)

Model 907.6

with code D51 (Entire partition with 1 window)

Shown with code T19 (Left sliding door), code T16 (Right sliding door) and code D05 (Super-high roof)

Shown with code T19 (Left sliding door) and code T16 (Right sliding door)

	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on carrying out repair work in the vehicle interior		AH68.00-N-0001-01S
	Remove/install
	Adjust driver's seat forwards to topmost position.
2.1	Adjust front passenger seat forwards to topmost position.	Model 907.6 except code S23 (Two-seater front passenger seat)
2.2	Remove front passenger bench seat.	Model 907.6 with code S23 (Two-seater front passenger seat)	AR91.10-D-1035TS

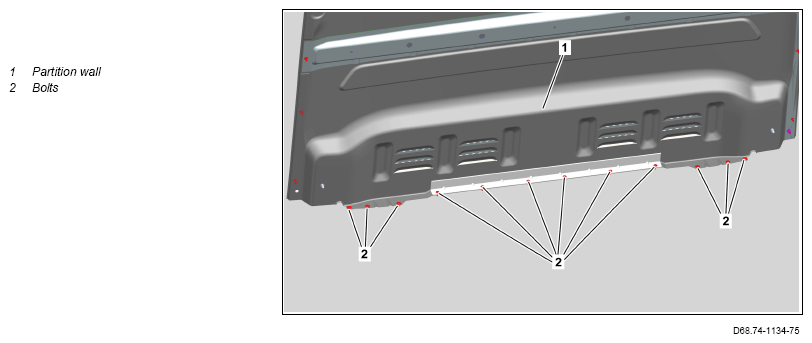

3	Remove front lower screws (2) at partition (1).

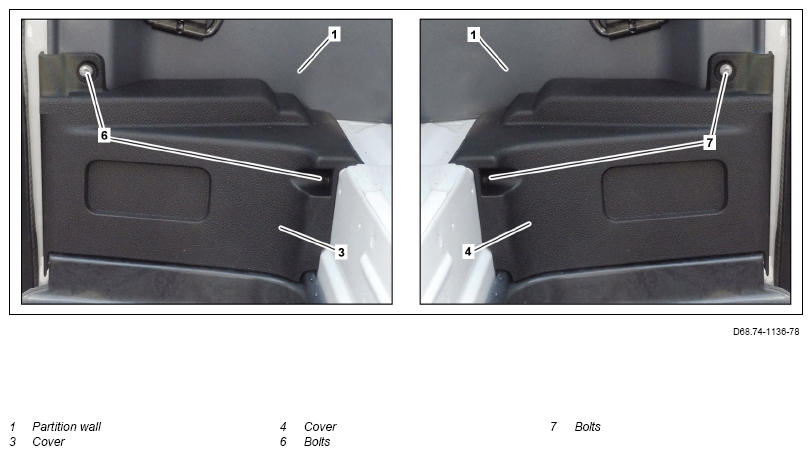

4	Remove screws (6) in load compartment and remove trim (3) on left on partition (1).	Model 907.6 with code T19 (Left sliding door)
5	Remove screws (7) in load compartment and remove trim (4) on right on partition (1).	Model 907.6 with code T16 (Right sliding door)
6	Remove tie-down eyes (8) in load compartment from B-pillars.	Screw, tie-down eye to B-pillar	*BA68.50-D-1001-03TS

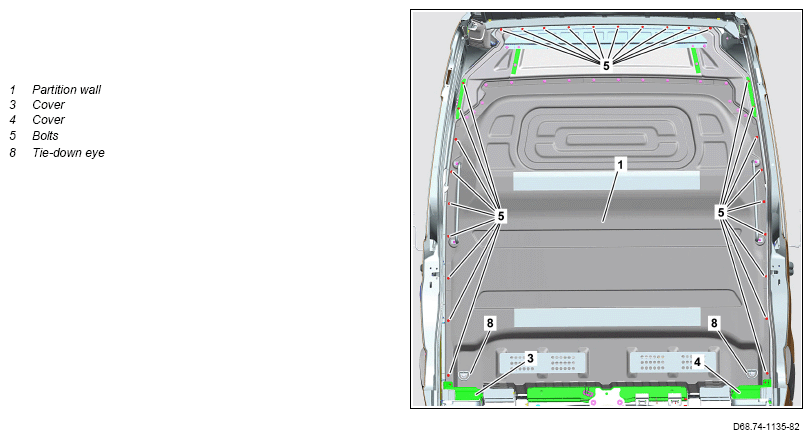

7	Remove bolts (5).	: First attach all screws (2, 5) and then tighten. Depending on the version, the number of screws (5) can vary.
8	Guide partition (1) out of vehicle.	Helper required. Partition (1) and/or body can otherwise be damaged.
9	Install in the reverse order.
10	Remove detachable parts at partition (1).	If partition (1) is replaced. Detachable parts vary depending on vehicle equipment.
