Remove/Install Floor Covering In Passenger Compartment - Ar68.80-D-0012TSR

Model 907.6/7

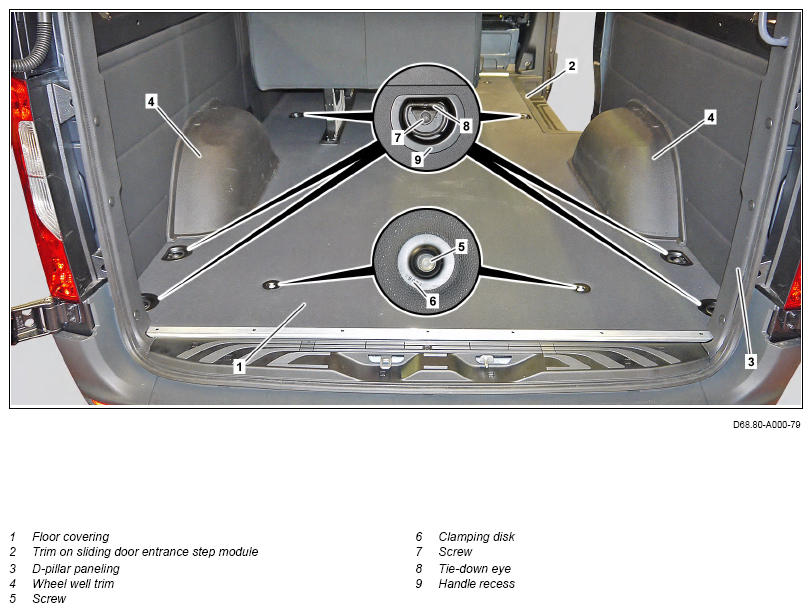

Shown on model 907.7 with code V35 (Wheel well trim), with code T16 (Right sliding door), with code V39 (Plastic floor, people mover), with code U60 (Passenger compartment seats, 2-passenger bench seat, 1st row), with code U61 (2-passenger bench seat, 2nd row), with code VA1 (Standard load compartment trim up to belt rail), and with code V36 (Roof lining)

Shown on model 907.7 with code H13 (Additional heat exchanger, rear)

	Notes on carrying out repair work in the vehicle interior		AH68.00-N-0001-01S
	Remove/install
1	Remove seat anchorages for passenger bench seat/passenger bench seats.	The number of seat anchorages may vary depending on vehicle equipment.	AR91.21-D-3772TSR
2	Remove right trim on sliding door entrance step module (2).	Model 907.6/7 with code T16 (Sliding door right)
		Model 907.6 with code T16 (Sliding door right) with code V39 (Plastic floor for people mover)	AR68.30-D-0018TSR
		Model 907.6 with code T16 (Sliding door right) with code VK8 (Floor covering, plastic) Model 907.7 with code T16 (Sliding door right)
3	Remove left trim on sliding door entrance step module (2).	Model 907.6/7 with code T19 (Sliding door left)
		Model 907.6 with code T19 (Sliding door left) with code V39 (Plastic floor for people mover)	AR68.30-D-0018TSR
		Model 907.6 with code T19 (Sliding door left) with code VK8 (Floor covering, plastic) Model 907.7 with code T19 (Sliding door left)
4	Remove D-pillar trim (3) on side of sliding door.	Model 907.6/7 with code V08 (Range of parts, roof lining for bodybuilders) Model 907.6/7 with code V36 (Panelling under roof)
5	Remove wheel well trims (4).	Model 907.7 with code V35 (Covering of wheel house)
6	Remove screws (5) and remove clamping disks (6) with spacer sleeves.	The number of screws (5), clamping disks (6), and spacer sleeves may vary depending on vehicle equipment.
7	Remove screws (7) and remove tie-down eyes (8) with handle recess shells (9) and spacer sleeves.	The number of screws (7), tie-down eyes (8) with handle recess shells (9) and spacer sleeves may vary depending on vehicle equipment.
		Screw, tie-down eye to load compartment floor	*BA68.50-D-1002-03TS

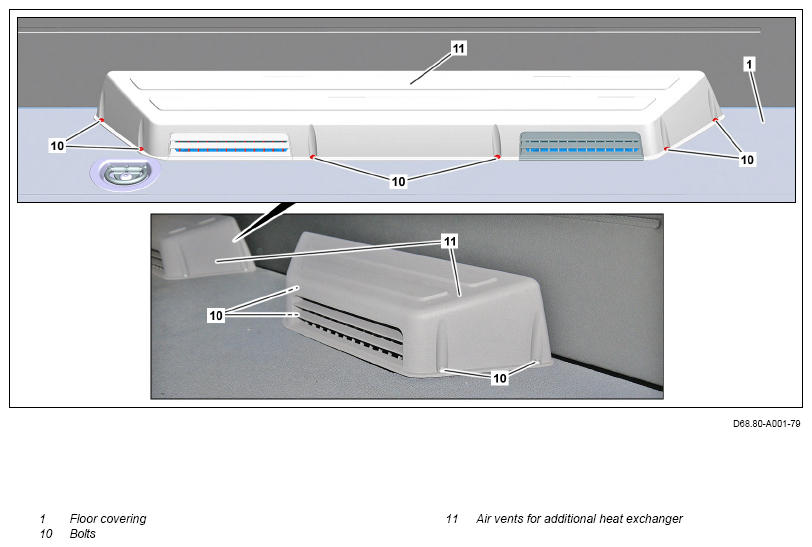

8	Remove screws (10) and lift off air vents for additional heat exchanger (11).	Model 907.6/7 with code H11 (Auxiliary hot-air heater) Model 907.6/7 with code H13 (Additional heat exchanger) The number of air vents for additional heat exchanger (11) and of screws (10) may vary depending on vehicle equipment.
9	Lift floor covering (1) and remove from vehicle.	WIS Service Media  wsm://04 201800 62  Aid of helper required.
10	Install in the reverse order
