Prepare Inside Part Of Side Wall For Installation Of Tie-Down Rails - An68.50-D-8260-02TS

Notes on carrying out repair work in the vehicle interior

Model 907.6

with code IR2 (Wheelbase 3250 mm)

Except reduced-gloss colors (color codes: 1214, 1215, 1222, 1232, 1233, 1234, 1242, 1413, 1414, 1416, 1417, 1419, 1432, 1438, 1474, 1485, 1614, 1645, 1658, 2613, 5330, 5516, 6216, 6225, 6239, 6244, 6245, 6246, 6262, 6266, 6267, 6296, 6336, 6337, 6401, 6408, 6409, 6411, 6423, 6431, 6434, 6435, 6436, 6441, 6442, 6446, 6454, 6455, 6456, 6457, 6458, 6840, 6844, 6845, 6846, 7164, 7253, 7307, 7313, 7323, 7324, 7333, 7337, 8418, 8425, 8444, 8516, 8517, 8527, 9205, 9210, 9211, 9219, R319, RP6A)

Model 910.6

with code IS2 (Wheelbase 3259 mm)

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1056-07A	1K-zinc dust paint	A 000 986 28 00

The next steps are shown on the left side of the vehicle and must be performed in the same way on the right side of the vehicle.

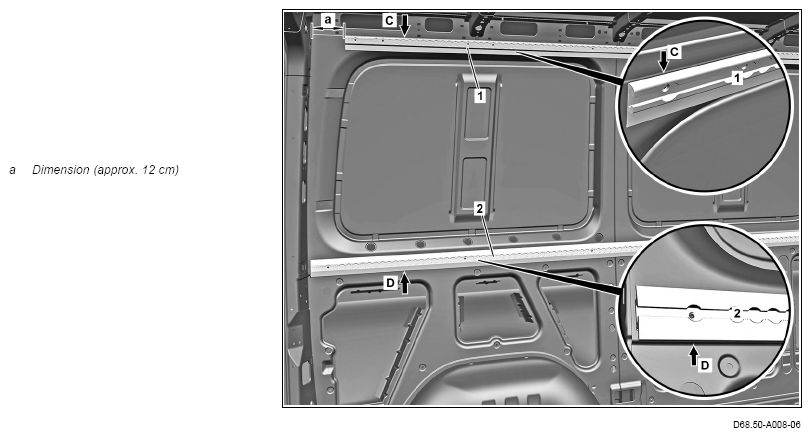

Shown on model 907.6 except code V25 (load compartment trim up to belt rail, simple) except code VA1 (load compartment trim up to belt rail, standard) except code VA2 (load compartment interior trim up to roof height (wood)) except code VA3 (load compartment interior trim up to roof height, washable)

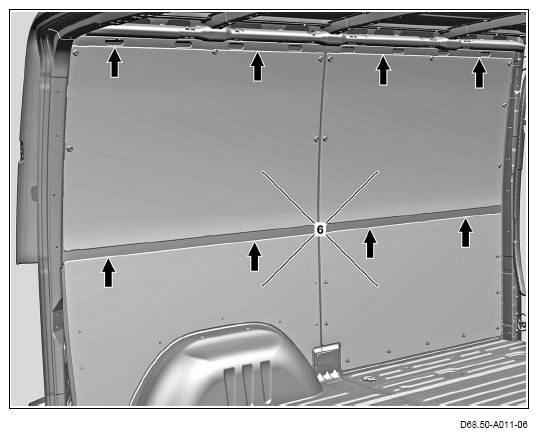

Shown on model 907.6 with code VA2 (load compartment interior trim up to roof height (wood))

Depending on the customer request, the following must be taken into consideration: The retrofit of the top tie-down rails (1) is permissible only in combination with the retrofit of the center tie-down rails (2).

Mark bore holes for the center tie-down rail (2).
Model 907.6 except code V25 (load compartment trim up to belt rail, simple) except code VA1 (load compartment trim up to belt rail, standard) except code VA2 (load compartment interior trim up to roof height (wood)) except code VA3 (load compartment interior trim up to roof height, washable) Position center tie-down rail (2) parallel to the edge (arrow D) as shown and mark bore holes.

Model 907. with code V25 (load compartment trim up to belt rail simple) or code VA1 (load compartment trim up to belt rail, standard) or code VA2 (load compartment interior trim up to roof height (wood) or code VA3 (load compartment interior trim up to roof height, washable)

Position center tie-down rail (2) flush with the edges (arrows) of the bottom side wall trims (6) and mark bore holes.

Helper required.

Use holes of the center tie-down rail (2) for marking the bore holes.
Mark bore holes for the top tie-down rail (1).
If the center tie-down rails (2) are attached and the top tie-down rails (1) are also desired.

Model 907.6 except code VA2 (load compartment interior trim up to roof height (wood)) except code VA3 (load compartment interior trim up to roof height, washable)

Position top tie-down rail (1), parallel to the roof edge (arrow C) as shown and mark bore holes.

Observe dimension (A).

Model 907.6 with code VA2 (load compartment interior trim up to roof height (wood)) or code VA3 (load compartment interior trim up to roof height, washable)

Position top tie-down rail (1) flush with the edges (arrows) of the top side wall trims (6) and mark bore holes.

Helper required.

Use top holes of the tie-down rail (1) for marking the bore holes.
Drill bore holes (5) for the center tie-down rail (2) in inside part of sidewall.
Drill bore holes (5) with a diameter of 5 mm.

Observe markings.
Drill bore holes (4) for the top tie-down rail (1) in inside part of sidewall.
If the center tie-down rails (2) are attached and the top tie-down rails (1) are also desired.

Drill bore holes (4) with a diameter of 5 mm.

Observe markings.
Deburr bore holes (4, 5) using a suitable tool.
Remove drilling chips.
Apply zinc dust paint around the bore holes (4, 5).

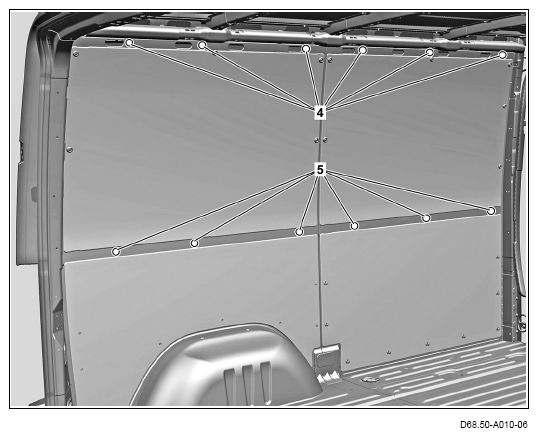

Shown on model 907.6 with code VA2 (load compartment interior trim up to roof height (wood))
