Adjust Tie-Down Rails On Sidewall - An68.50-D-8260-01TS

	Risk of explosion Trom aluminum grinding dust, risk of injury to respiratory system from inhaling dust	Wear dust filter mask, safety glasses and protective gloves. Use a suitable, grounded dust extraction system.	AS60.00-Z-0007-01N
	Risk oT injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A

Model 907.6, 910.6

Except reduced-gloss colors (color codes: 1214, 1215, 1222, 1232, 1233, 1234, 1242, 1413, 1414, 1416, 1417, 1419, 1432, 1438, 1474, 1485, 1614, 1645, 1658, 2613, 5330, 5516, 6216, 6225, 6239, 6244, 6245, 6246, 6262, 6266, 6267, 6296, 6336, 6337, 6401, 6408, 6409, 6411, 6423, 6431, 6434, 6435, 6436, 6441, 6442, 6446, 6454, 6455, 6456, 6457, 6458, 6840, 6844, 6845, 6846, 7164, 7253, 7307, 7313, 7323, 7324, 7333, 7337, 8418, 8425, 8444, 8516, 8517, 8527, 9205, 9210, 9211, 9219, R319, RP6A)

Depending on the customer request, the following shall be taken into account: Retrofitting oT the top front tie-down rails (2) is permitted only in combination with retrofitting of the center front tie-down rails (1)

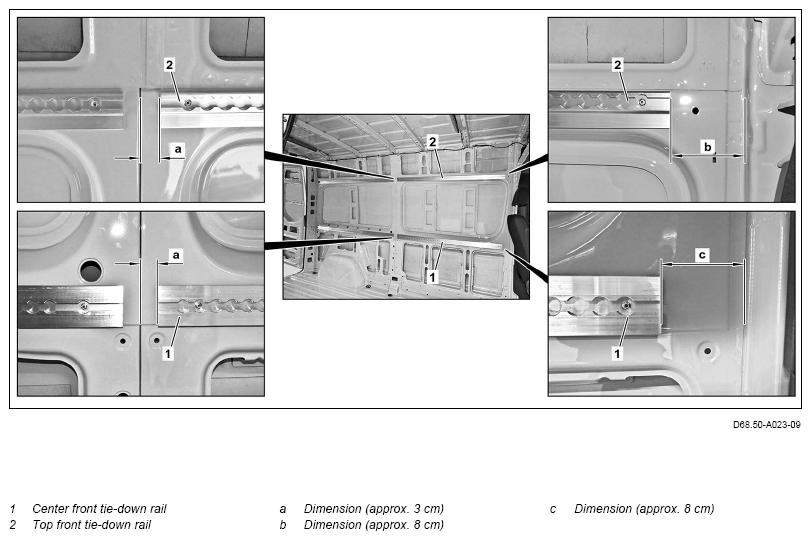

Shown on model 907.6 except code T19 (Left sliding door), left side of vehicle

Adjust length of center front tie-down rails (1) on side walls while observing clearance to B and C-pillars.
Model 907.6

except code IR2 (Wheelbase 3250 mm)

Ensure that the hole patterns of the center front tie-down rails (1) match the hole patterns of the side walls.

To do this, separate center front tie-down rails (1) using a suitable tool and deburr.

Observe dimensions (a, c).

Helper required.
Adjust length of top front tie-down rails (2) on side walls while observing clearance to B and C-pillars.
In case of corresponding customer request.

Model 907.6

except code IR2 (Wheelbase 3250 mm)

Ensure that the hole patterns of the top front tie-down rails (2) match the hole patterns of the side walls.

To do this, separate top front tie-down rails (2) using a suitable tool and deburr.

Observe dimensions (A, B).

Helper required.

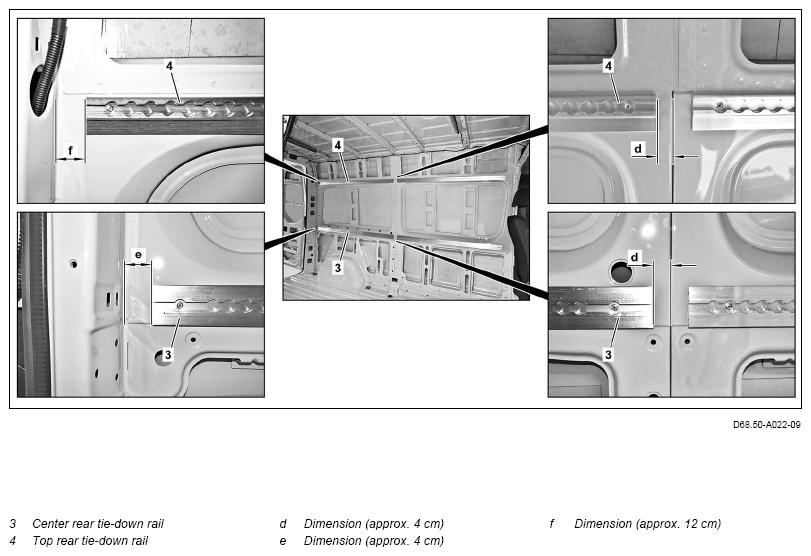

Model 907.6 except code T19 (Left sliding door) and except code D03 (Roof and rear-end doors, high version), except code D05 (Superhigh roof), and except code D06 (Super-high roof painted in vehicle color), left side of vehicle

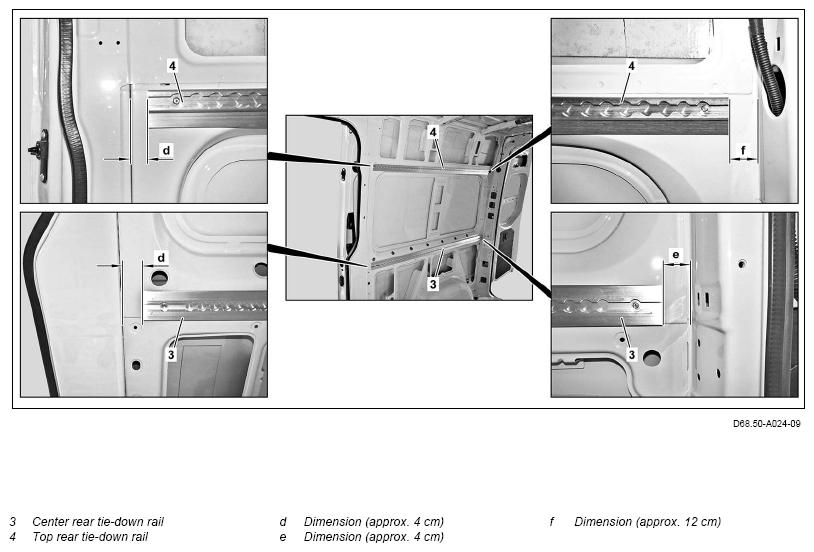

Model 907.6 with code T16 (Right sliding door) and except code D03 (Roof and rear-end doors, high version), except code D05 (Super-high roof), and except code D06 (Super-high roof painted in vehicle color), right side of vehicle

Depending on the customer request, the following must be taken into consideration: The retrofit of the top rear tie-down rails (4) is permissible only in combination with the retrofit of the center rear tie-down rails (3).
Adjust length of center rear tie-down rails (3) on side walls while observing clearance to C and D-pillars.
Model 907.6

except code IR2 (Wheelbase 3250 mm)

Ensure that the hole patterns of the center rear tie-down rails (3) match the hole patterns of the side walls.

To do this, shorten center rear tie-down rails (3) on both sides if necessary.

To do this, separate center rear tie-down rails (3) using a suitable tool and deburr.

Take into account dimensions (d, e).

Helper required.
Adjust length of top rear tie-down rails (4) on side walls while observing clearance to C and D-pillars.
In case of corresponding customer request.

Model 907.6

except code IR2 (Wheelbase 3250 mm)

Ensure that the hole patterns of the top rear tie-down rails (4) match the hole patterns of the side walls.

To do this, shorten top rear tie-down rails (4) on both sides if necessary.

To do this, separate top rear tie-down rails (4) using a suitable tool and deburr.

Observe dimensions (d, f).

Models 907.6 with code D03 (Roof and rear-end doors, high version), model 907.6 with code D05 (Super-high roof), or with code D06 (Super-high roof painted in vehicle color)

Dimension (e) is approx. 2 cm.

Helper required.
