Re-Attach Tie-Down Rails To Side Wall (Code: Vs3ZUSCHI, Acc. No.: 60 940 56) - SM68.50-D-0010SG

Model 907.6## #P as of 024748 up to 048218

with code V42 (Sidewall tie-down rails on waist rail)

except code VC4 (Sidewall tie-down rails on roof frame)

Model 907.6## #P as of 024748 up to 048218

with code V42 (Sidewall tie-down rails on waist rail)

with code VC4 (Sidewall tie-down rails on roof frame)

Model 907.6## #T as of 000111 up to 005028

with code V42 (Sidewall tie-down rails on waist rail)

except code VC4 (Sidewall tie-down rails on roof frame)

Model 907.6## #T as of 000111 up to 005028

with code V42 (Sidewall tie-down rails on waist rail)

with code VC4 (Sidewall tie-down rails on roof frame)

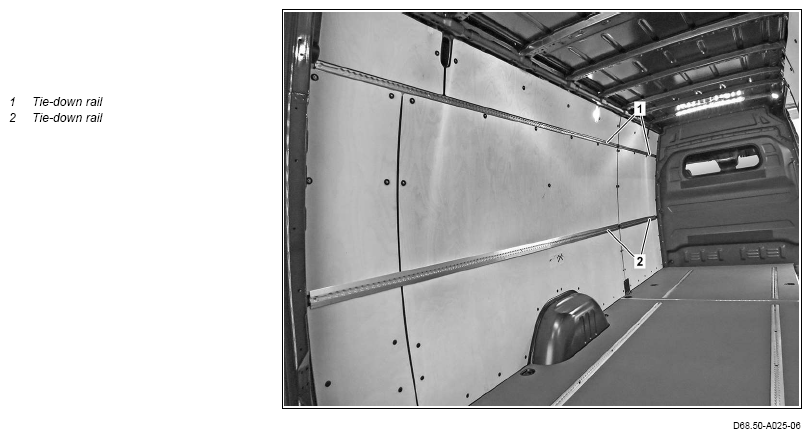

Shown on model 907.6 with code VA2 (load compartment interior trim up to roof height (wood))

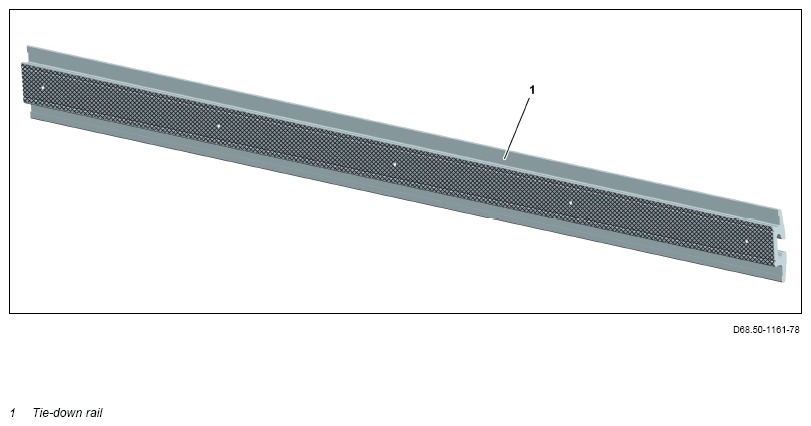

Shown on tie-down rail (1) with code V42 (Side wall to belt rail tie-down rails)

	Risk of explosion  from aluminum grinding dust, risk of injury to respiratory system from inhaling dust	Wear dust filter mask, safety glasses and protective gloves. Use a suitable, grounded dust extraction system.	AS60.00-Z-0007-01N
	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.	AS00.00-Z-0017-01A
		Deburr repair panels.
	Notes on carrying out repair work in the vehicle interior		AH68.00-N-0001-01S
	Pretreatment of bonding surfaces		AH60.00-P-0008-01SX
	Check
1	Check, whether the vehicle is affected by the measure.	For authorized Mercedes-Benz service partners, only the entry in the "Extended VEGA Application" (EVA) system, in the "Current" tab, is decisive. An additional test of the affected vehicles in the workshop information system (WIS) or vehicle list is thereby not necessary.
	Remove
2	Remove all load compartment trim between tie-down rails (1) at the top and tie-down rails (2) at the center.	Model 907.6 with code VC4 (Tie-down rails on side wall to roof frame)
			AR68.30-D-1185TS
3	Drill out rivets of all installed tie-down rails (1, 2).	The number of rivets can vary depending on the given vehicle length.
4	Remove drilling chips.
5	Use heat gun to heat all tie-down rails (1, 2).
	000 588 00 84 00 Heat gun		WS54.00-P-0049B
		Hold heat gun directly at tie-down rail (1) and/or tie-down rail (2) and avoid excess heat at adjacent component parts. Otherwise, the adjacent components and the paintwork may be damaged.
6	Pry off all tie-down rails (1, 2) from body using suitable wedges.	Continuously readjust wedges to maintain preload.
7	Remove adhesive residue from body using a suitable tool.
8	Repair paint damage.	Use only primer filler and paints approved by Daimler AG: https://xentryportaLi.daimler.com
	Install
9	Remove adhesive residue from tie-down rails (1, 2) using a suitable tool and grind mating surfaces in crosshatched areas.	WIS Service Media  wsm://04  201800 64
10	Apply activator immediately to ground mating surfaces in crosshatched areas.	Korabond activator HG81	*BR00.45-Z-1172-02A
11	Allow the activator to flash off.	A flash-off time of at least 10 min and max 24 h up to adhesive application must be complied with. Activator must be applied again to the bonding surface if adhesive application takes place after 24 h.
12	Apply adhesive to tie-down rails (1, 2).	Apply adhesive at a gap of 1 cm to the outer edges (right and left). Disconnect the adhesive bead at the rivet holes of the tie-down rails (1, 2) for approx. 1 cm. This prevents adhesive extrusion in the visible area. The maximum setting time after applying the adhesive to the tie-down rails (1, 2) is 5 min.
		Adhesive bead diameter should be approx 6 mm. Apply the adhesive in the center of the mating surfaces of the tie-down rails (1, 2). WIS Service Media  wsm://04  201800 63
		Korapur 140 white	*BR00.45-Z-1158-02A
13	Moisten adhesive beads with water.	Apply only fine spraying fog.
14	Position tie-down rails (1, 2) on body and rivet.	Helper required. The full strength of the tie-down rails (1, 2) is guaranteed after approx. 7 days curing time of the adhesive.
15	Install all load compartment trim between tie-down rails (1) at the top and tie-down rails (2) at the center.	Model 907.6 with code VC4 (Tie-down rails on side wall to roof frame)
			AR68.30-D-1185TS
