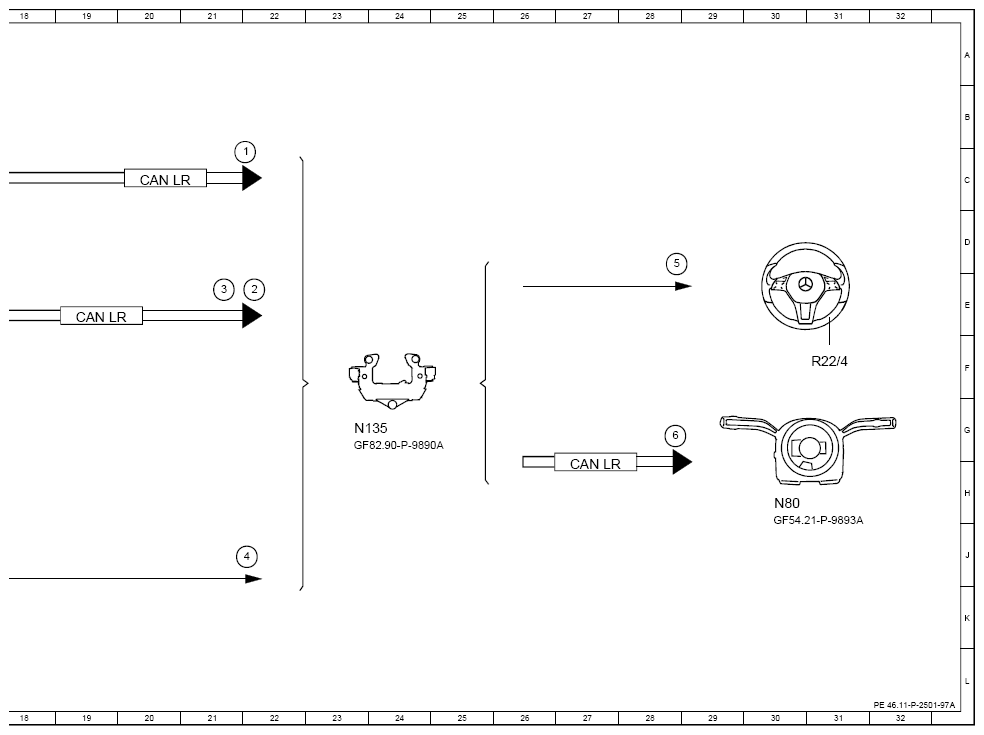

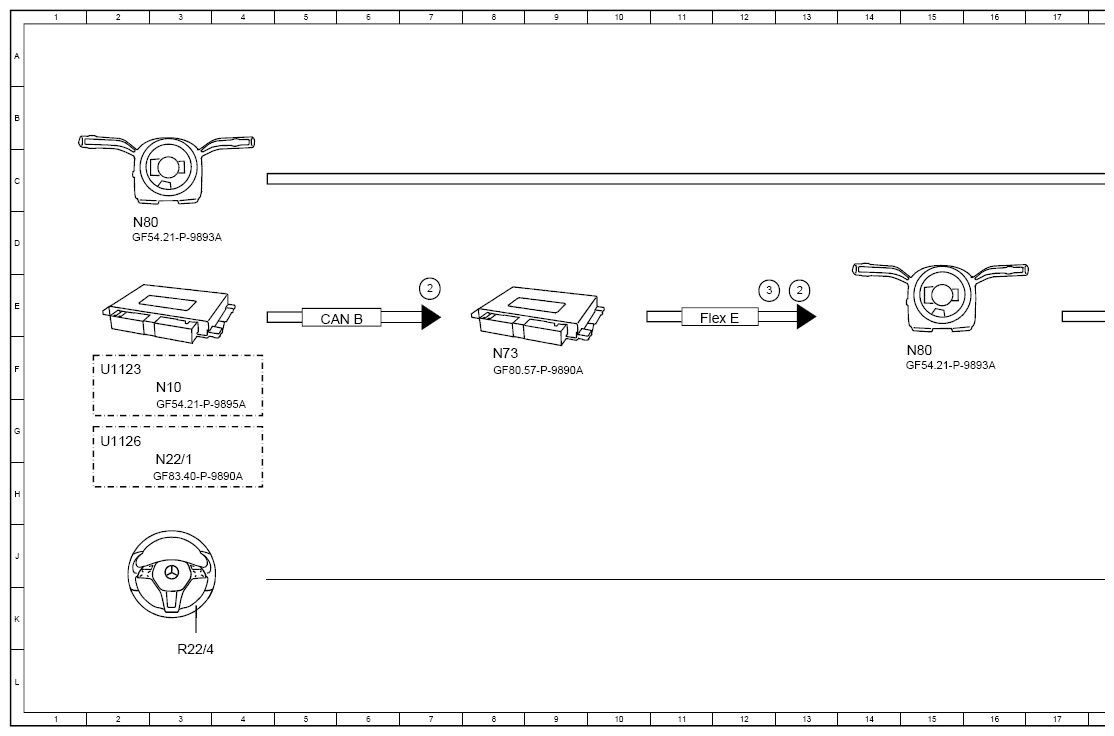

Function Schematic For Actuating Steering Wheel Heater - PE46.11-P-2501-97A
Model 118, 167, 177, 243, 247, 293
with code 443 (Heated steering wheel)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Steering wheel heater switch, status | 22C |
| 2 | Interior temperature, signal | 13E |
| 2 | Interior temperature, signal | 22E |
| 2 | Interior temperature, signal | - |
| 3 | Circuit 15, status | 12E |
| 3 | Circuit 15, status | 21E |
| 4 | Heating element temperature sensor, signal | 22J |
| 5 | Steering wheel heater, actuation | 28D |
| 6 | Steering wheel heater, status | 28G |
| CAN B | Interior CAN | 5E |
| CAN LR | Steering wheel CAN | 20C |
| CAN LR | Steering wheel CAN | 27H |
| CAN LR | Steering wheel CAN | 19E |
| Flex E | Chassis FlexRay | 11E |
| N10 | Central control module | 3F |
| N135 | Steering wheel electronics | 23G |
| N2/1 | Climate control control unit | 3H |
| N73 | Electronic ignition switch control unit | 8F |
| N80 | Steering column module control unit | 2D |
| N80 | Steering column module control unit | 30H |
| N80 | Steering column module control unit | 15F |
| R2/4 | Steering wheel heater | 3L |
| R2/4 | Steering wheel heater | 31F |
| U1123 | Valid for Model 118, 177, 247 | 2F |
| U1126 | Valid except Model 118, 177, 247 | 2G |
