Wiring Diagram For Left Rear Seat Control Unit - PE91.29-P-2118-97NCC
Model 167.9
with code 453 (Rear reclining seat)
with code M036 (Maybach version)
except code 224 (Individual rear seats)
except code 226 (7-seater with 3rd seat row)

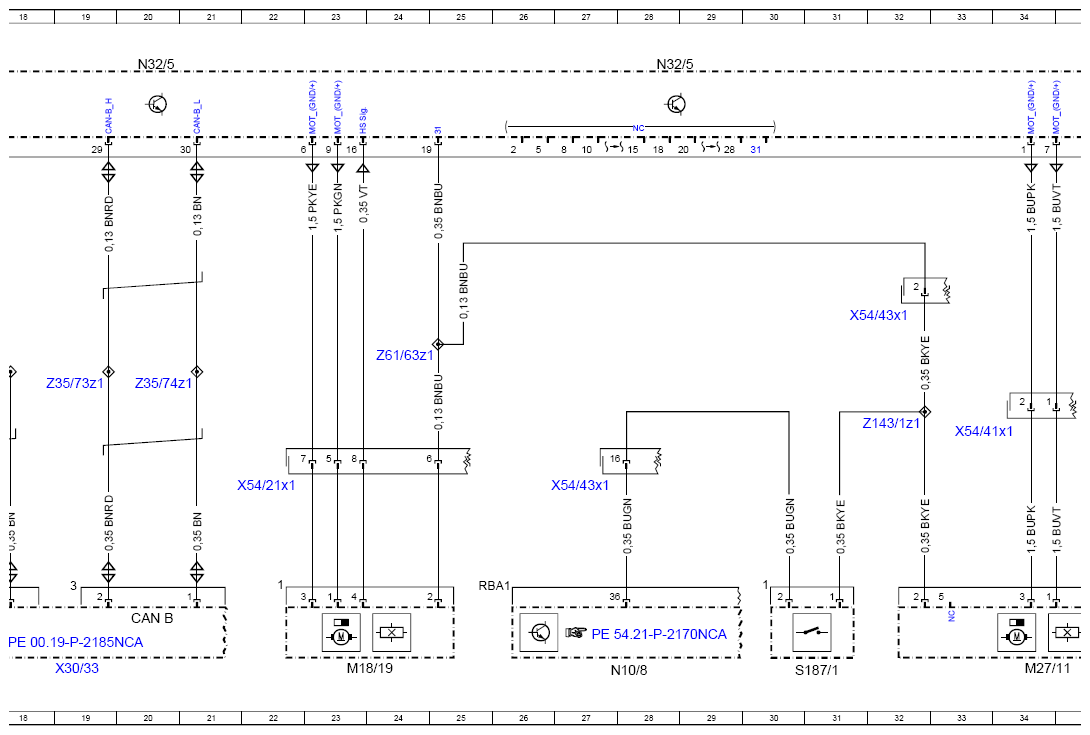

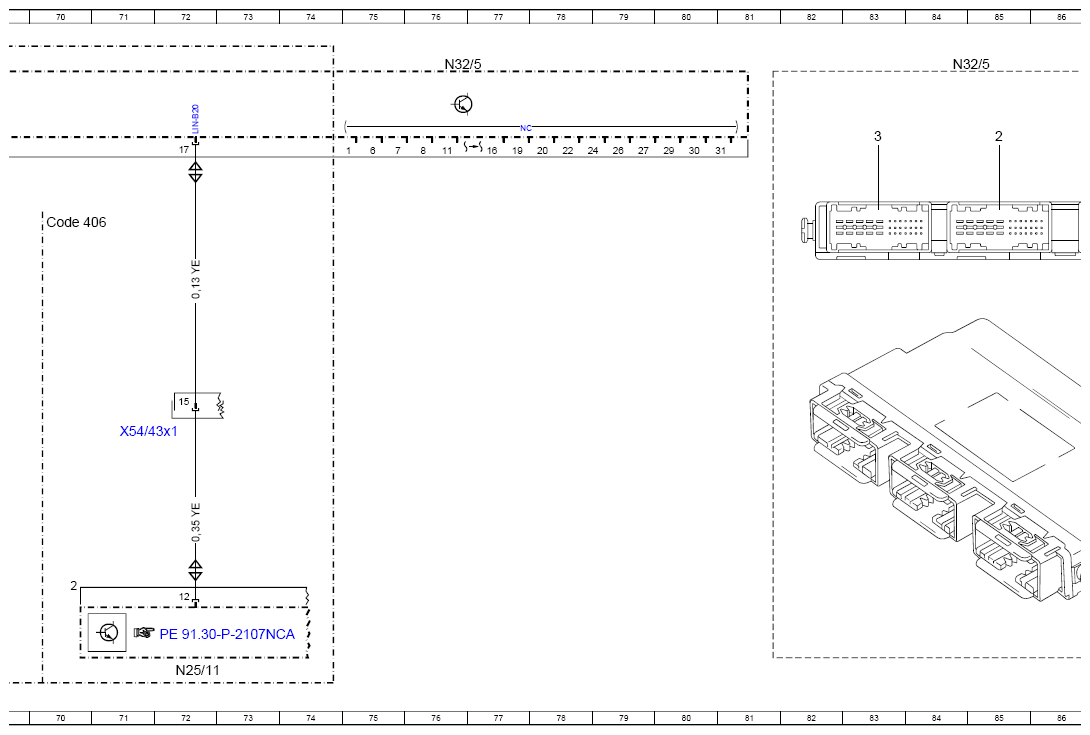

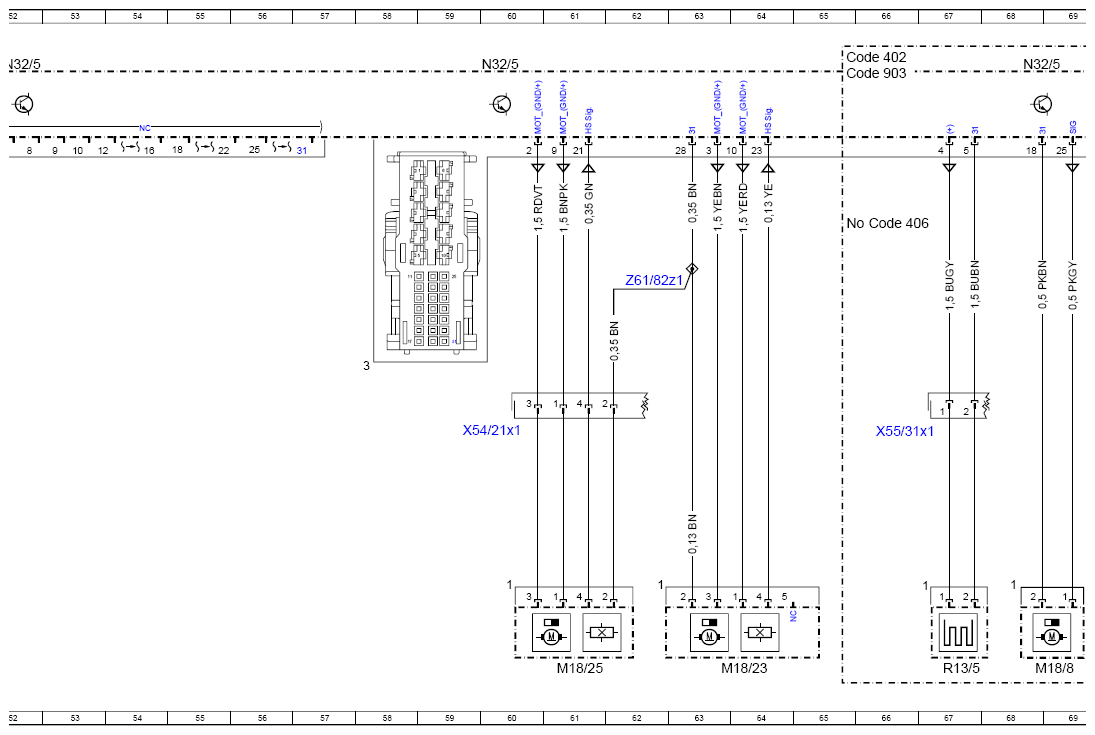

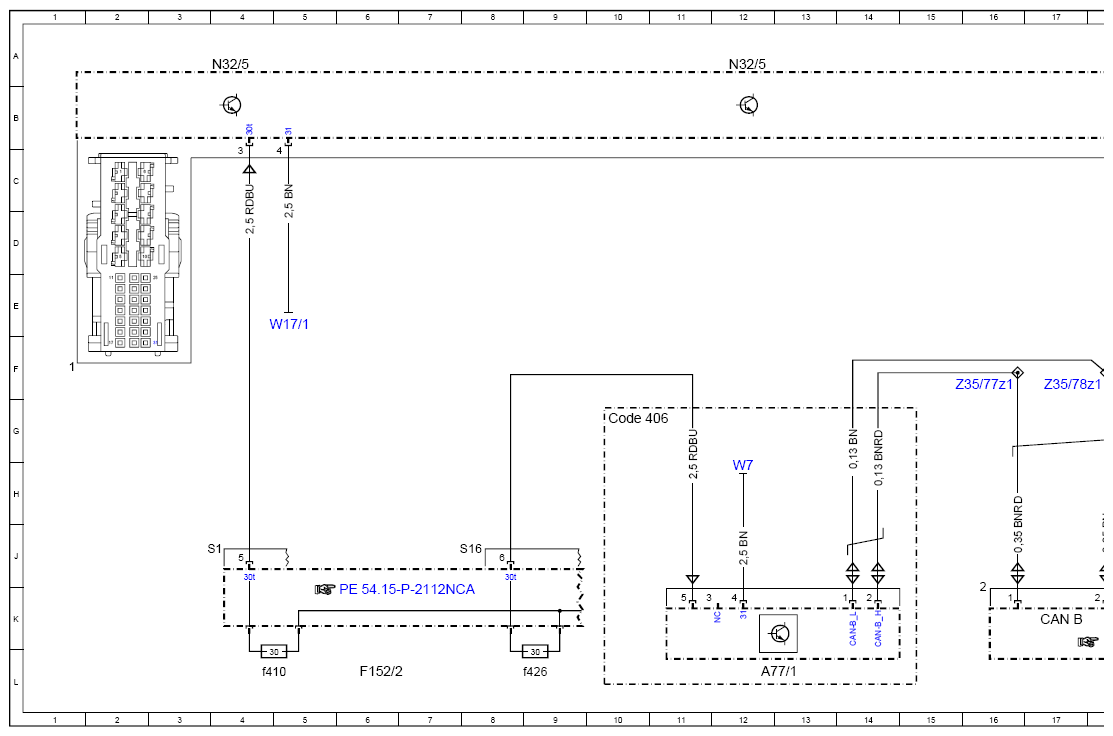

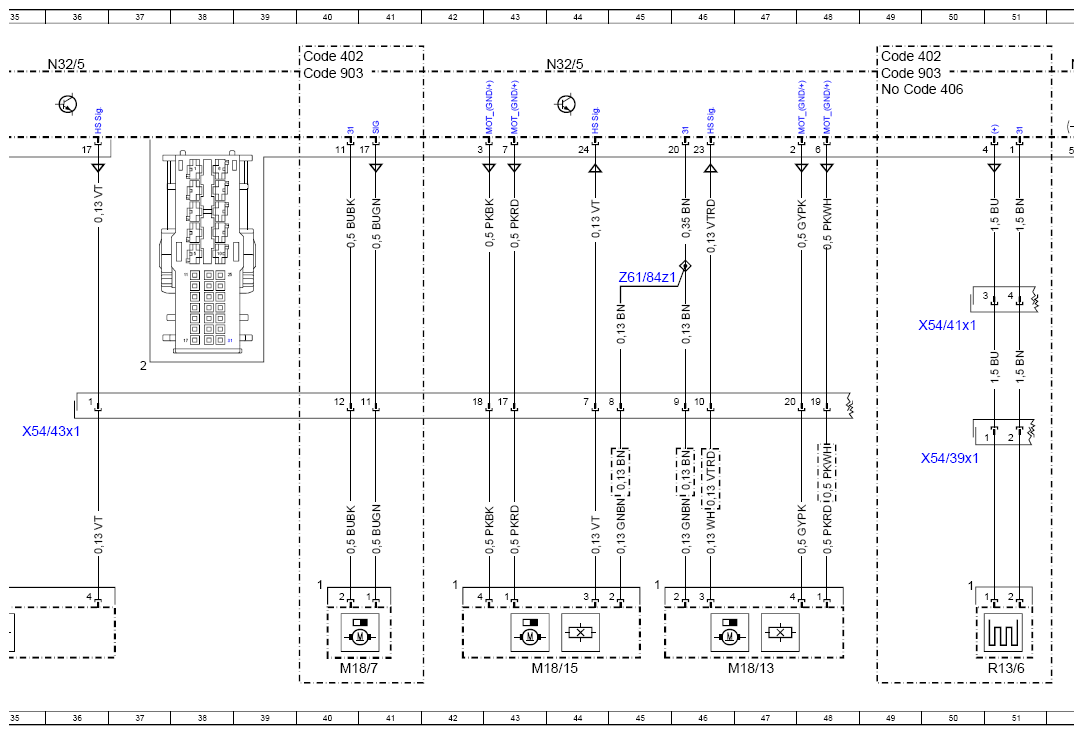

Control unit N32/5
| Code: | Designation: | Position: |
|---|---|---|

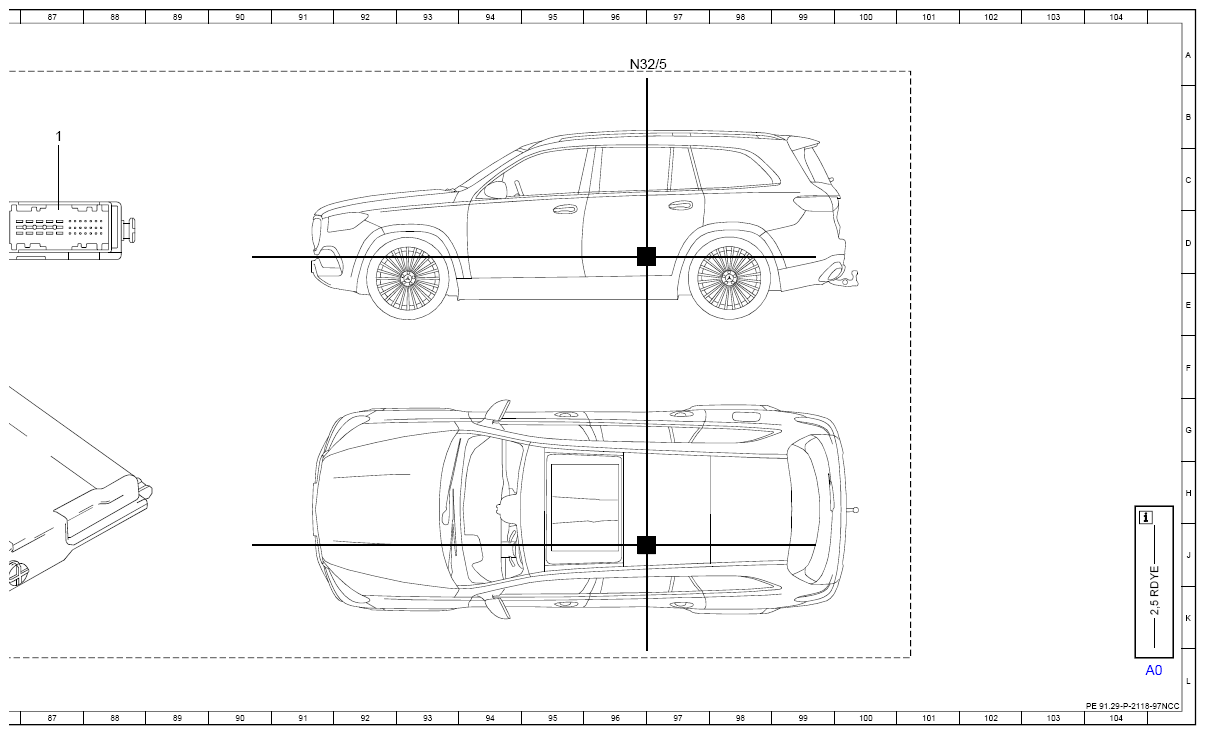

| A0 | Use of wiring diagrams | 105L |
| A77/1 | Multicontour seat pneumatic pump | 12L |
| CAN B | Interior CAN | 20K |
| CAN B | Interior CAN | 17K |
| Code 402 | Rear comfort seats, incl. seat heating and seat ventilation | 40A |
| Code 402 | Rear comfort seats, incl. seat heating and seat ventilation | 49A |
| Code 402 | Rear comfort seats, incl. seat heating and seat ventilation | 65A |
| Code 406 | Multicontour seats in rear | 70D |
| Code 406 | Multicontour seats in rear | 66D |
| Code 406 | Multicontour seats in rear | 49B |
| Code 406 | Multicontour seats in rear | 10G |
| Code 903 | Seat heater Plus for outer rear seats | 40A |
| Code 903 | Seat heater Plus for outer rear seats | 49A |
| Code 903 | Seat heater Plus for outer rear seats | 65A |
| F152/2 | Rear fuse and relay module | 6L |
| F152/2f410 | Fuse 410 | 4L |
| F152/2f426 | Fuse 426 | 9L |
| M18/13 | Left 2nd seat row head restraint height adjustment motor | 47L |
| M18/15 | Left 2nd seat row head restraint inclination adjustment motor | 43L |
| M18/19 | Left 2nd seat row seat cushion inclination adjustment motor | 23L |
| M18/23 | Left rear seat leg rest inclination adjustment motor | 64L |
| M18/25 | Left rear seat leg rest fore/aft adjustment motor | 61L |
| M18/7 | Left rear seat backrest ventilation motors | 40L |
| M18/8 | Left rear seat cushion ventilation motors | 69L |
| M27/11 | Left rear seat backrest inclination adjustment motor | 34L |
| N10/8 | Rear central control unit | 28L |
| N25/11 | Left rear seat heater control unit | 72L |
| N32/5 | Left rear seat control unit | 4A |
| N32/5 | Left rear seat control unit | 20A |
| N32/5 | Left rear seat control unit | 36A |
| N32/5 | Left rear seat control unit | 28A |
| N32/5 | Left rear seat control unit | 52A |
| N32/5 | Left rear seat control unit | 68A |
| N32/5 | Left rear seat control unit | 60A |
| N32/5 | Left rear seat control unit | 76A |
| N32/5 | Left rear seat control unit | 84A |
| N32/5 | Left rear seat control unit | 96A |
| N32/5 | Left rear seat control unit | 44A |
| N32/5 | Left rear seat control unit | 12A |
| R13/5 | Left rear seat sitting surface heated cushion | 67L |
| R13/6 | Left rear backrest heated cushion | 51L |
| S187/1 | Left cushionbag microswitch | 31L |
| W17/1 | Left rear seat ground point | 5E |
| W7 | Right wheelhouse trunk ground point | 12H |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 19L |
| X54/21x1 | Left rear seat cushion inclination seat adjustment leg rest electrical connector | 22H |
| X54/21x1 | Left rear seat cushion inclination seat adjustment leg rest electrical connector | 60G |
| X54/39x1 | Left rear backrest heater pad electrical connector | 50H |
| X54/41x1 | Underbody interior wiring harness/left rear seat backrest electrical connector | 33G |
| X54/41x1 | Underbody interior wiring harness/left rear seat backrest electrical connector | 50E |
| X54/43x1 | Underbody interior wiring harness/left rear seat backrest electrical connector | 36G |
| X54/43x1 | Underbody interior wiring harness/left rear seat backrest electrical connector | 27H |
| X54/43x1 | Underbody interior wiring harness/left rear seat backrest electrical connector | 71G |
| X54/43x1 | Underbody interior wiring harness/left rear seat backrest electrical connector | 32E |
| X55/31x1 | Left rear seat sitting surface heater pad electrical connector | 66G |
| Z143/1z1 | Left cushionbag microswitch end sleeve | 32G |
| Z35/73z1 | Interior CAN (CAN B) High connector sleeve | 19F |
| Z35/74z1 | Interior CAN (CAN B) low connector sleeve | 20F |
| Z35/77z1 | Interior CAN (CAN B) High connector sleeve | 16F |
| Z35/78z1 | Interior CAN (CAN B) low connector sleeve | 17F |
| Z61/63z1 | Seat backrest adjustment Hall sensor ground end sleeve | 24F |
| Z61/82z1 | Left leg rest Hall sensor ground end sleeve | 62E |
| Z61/84z1 | Left head restraint adjustment Hall sensor ground end sleeve | 45E |
