Wiring Diagram For Left Rear Seat Control Unit - PE91.29-P-2118-97NCB
Model 167.9
with code 224 (Individual rear seats)
Control unit N32/5
Model 167.9
with code 226 (7-seater with 3rd seat row)
Control unit N32/5
| Code: | Designation: | Position: |
|---|---|---|

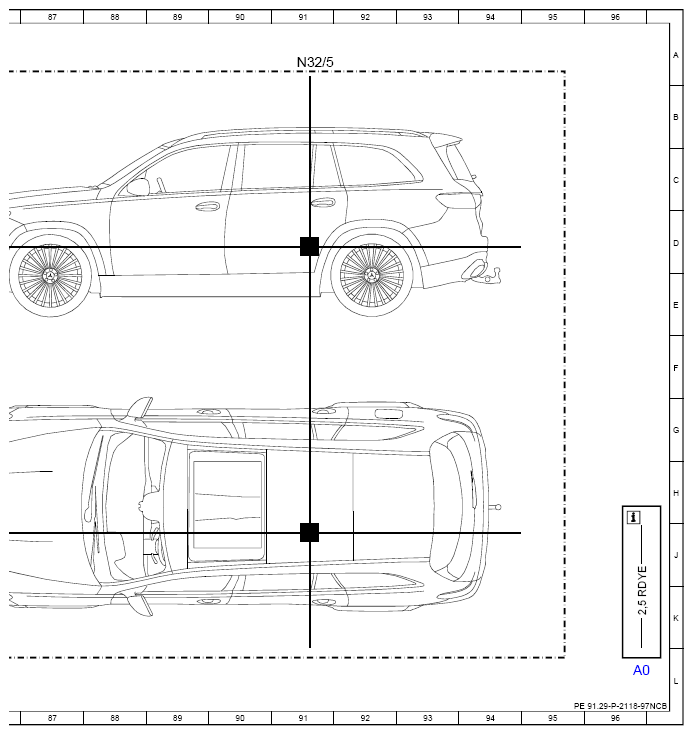

| A0 | Use of wiring diagrams | 96L |
| A93/1 | Left 3rd seat row backrest release unit | 16L |
| CAN B | Interior CAN | 12K |
| Code 226 | 7-seater with 3rd seat row | 35A |
| Code 226 | 7-seater with 3rd seat row | 57F |
| Code 802 | YoM 21/1 | 69F |
| Code 845 | Electric folding 3rd seat row | 14D |
| Code P08 | Rear passenger compartment Comfort Package | 66F |

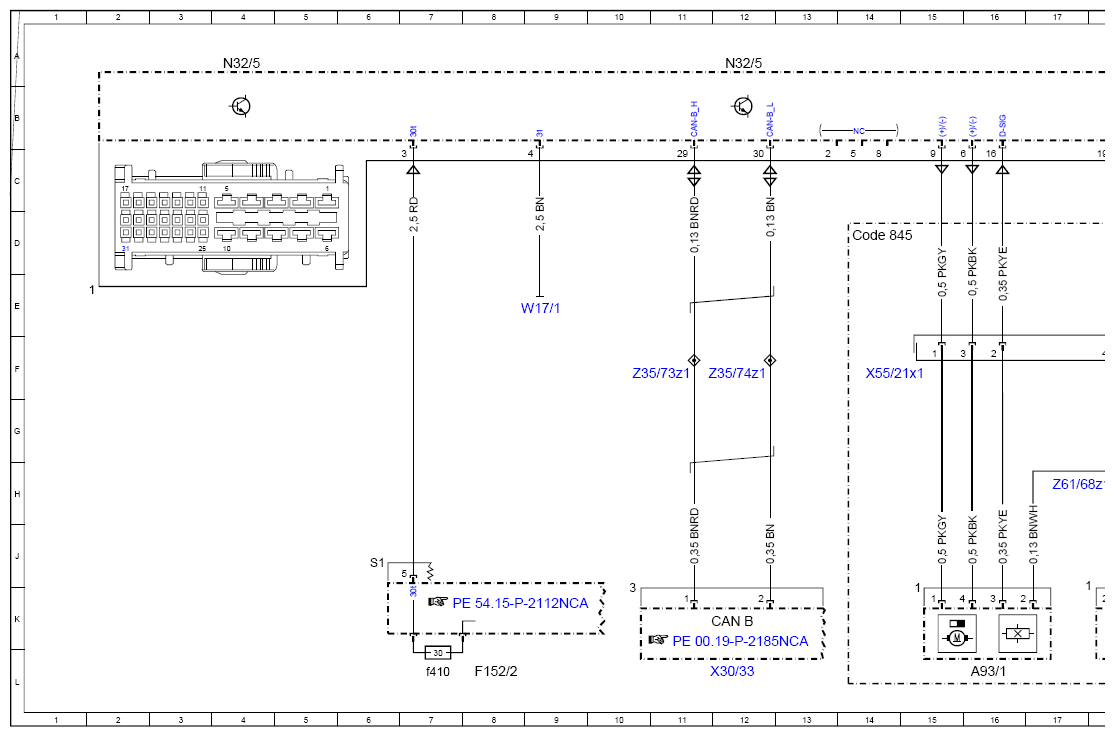

| F152/2 | Rear fuse and relay module | 8L |
| F152/2f410 | Fuse 410 | 7L |

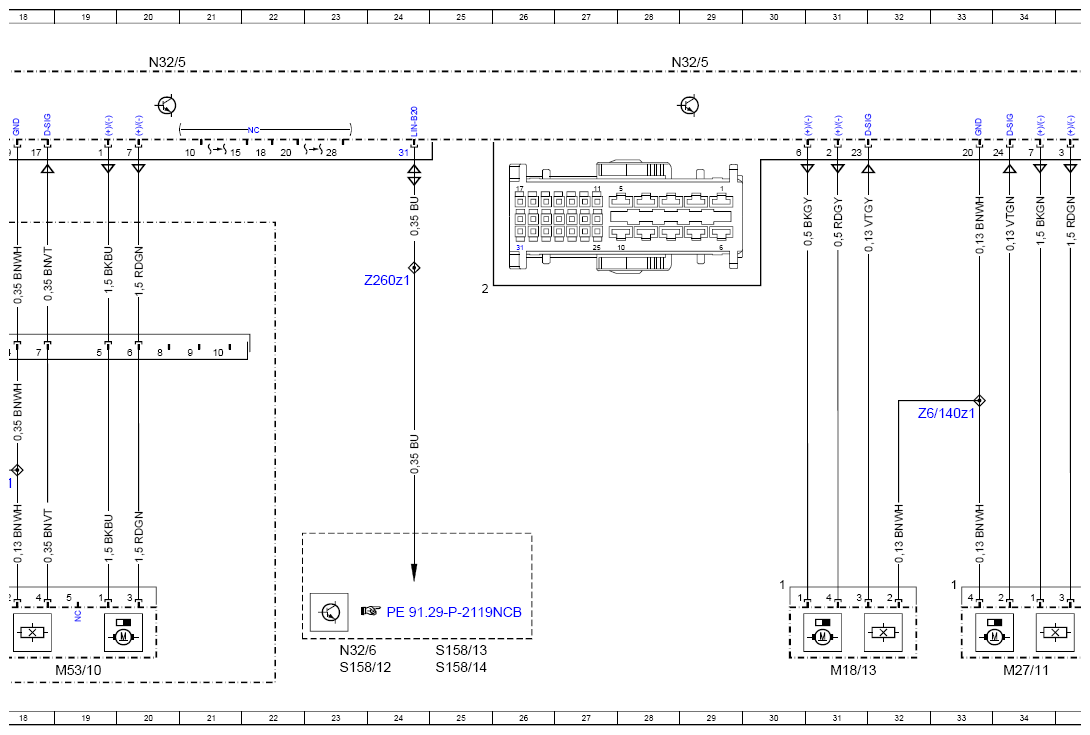

| M18/13 | Left 2nd seat row head restraint height adjustment motor | 31L |

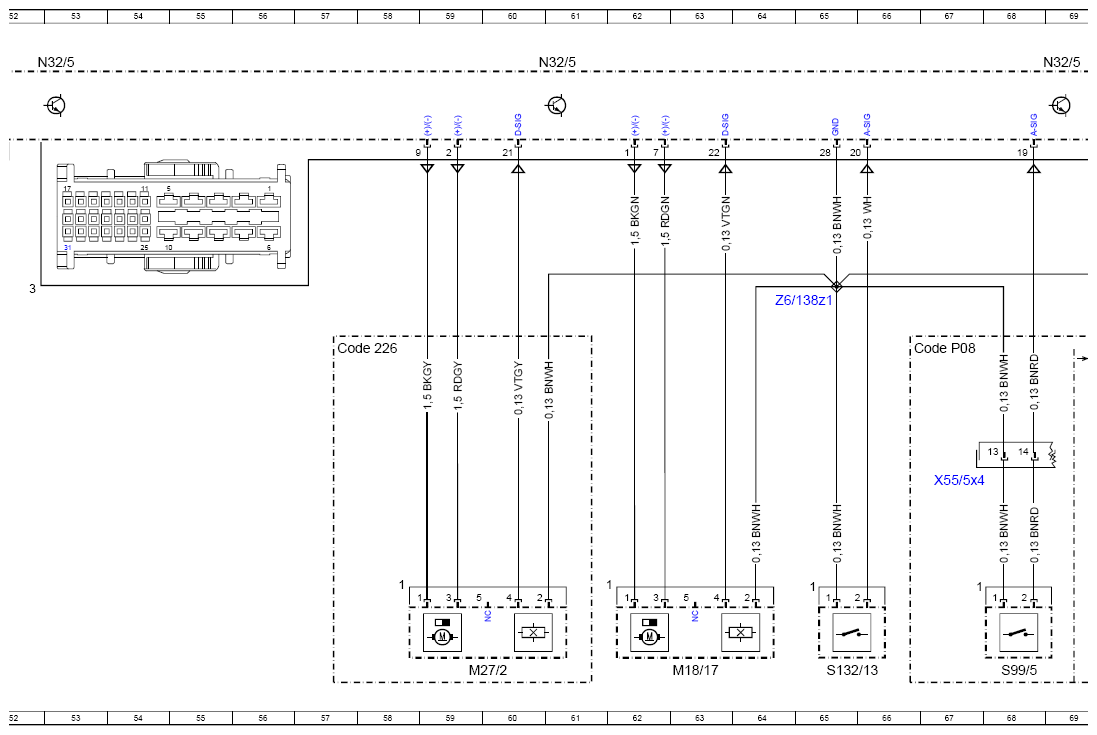

| M18/17 | Left rear fore/aft adjustment seat adjustment motor | 63L |
| M27/11 | Left rear seat backrest inclination adjustment motor | 34L |
| M27/2 | Left rear seat height seat adjustment motor | 59L |
| M53/10 | Left 3rd seat row folding backrest motor | 19L |
| N32/5 | Left rear seat control unit | 4A |
| N32/5 | Left rear seat control unit | 81A |
| N32/5 | Left rear seat control unit | 91A |
| N32/5 | Left rear seat control unit | 12A |
| N32/5 | Left rear seat control unit | 20A |
| N32/5 | Left rear seat control unit | 43A |
| N32/5 | Left rear seat control unit | 53A |
| N32/5 | Left rear seat control unit | 61A |
| N32/5 | Left rear seat control unit | 69A |
| N32/5 | Left rear seat control unit | 29A |
| N32/5 | Left rear seat control unit | 37A |
| N32/5 | Left rear seat control unit | 76A |
| N32/6 | Right rear seat control unit | 23L |

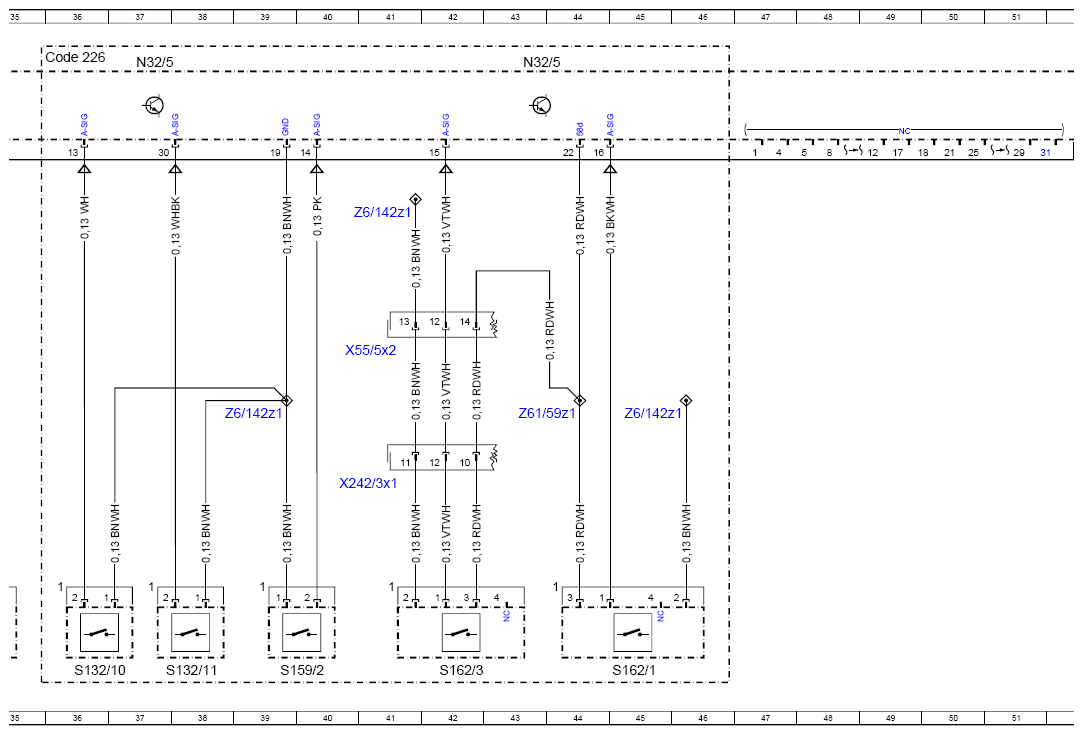

| S132/10 | Inner 2nd seat row seat release switch | 36L |
| S132/11 | 2nd seat row seat release switch (through-loading feature) | 38L |
| S132/13 | Left 2nd seat row emergency release switch | 65L |

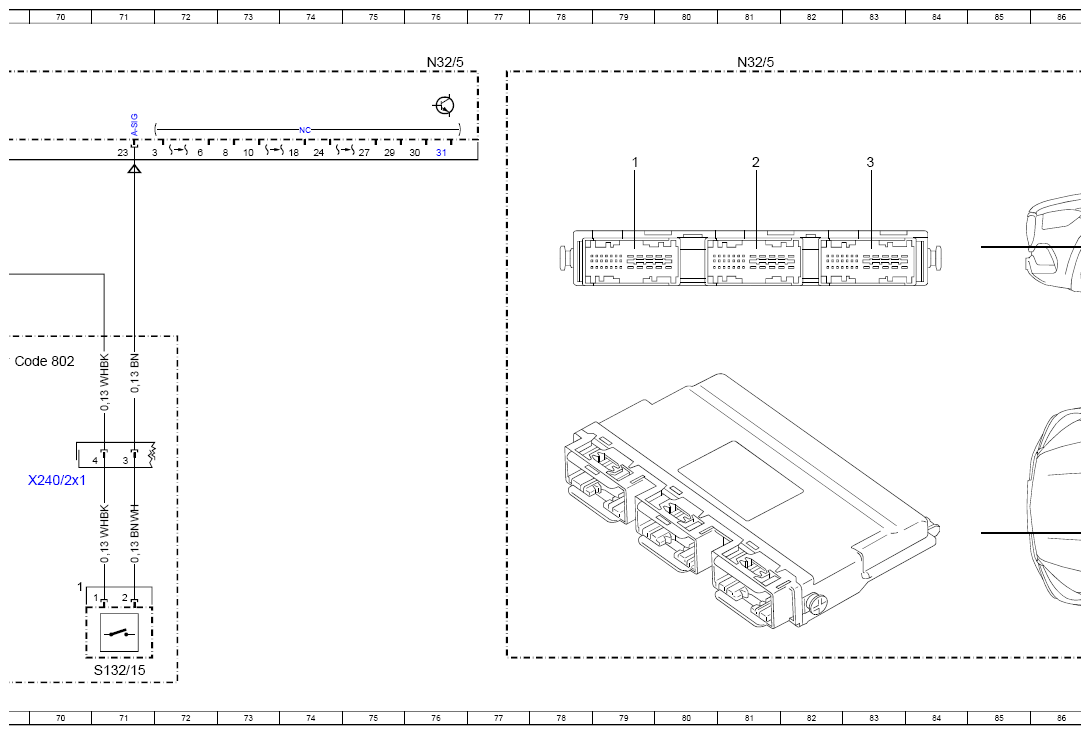

| S132/15 | Left 2nd seat row armrest release switch | 71L |
| S158/12 | Right 2nd seat row seats switch group | 23L |
| S158/13 | Seats switch group (left load compartment) | 25L |
| S158/14 | Seats switch group (right load compartment) | 25L |
| S159/2 | Outer 2nd seat row seat release switch | 39L |
| S162/1 | Left 2nd seat row easy entry and exit feature button | 45L |
| S162/3 | Left 3rd seat row armrest easy entry and exit feature button | 42L |
| S99/5 | Center console stowage compartment limit switch | 68L |
| W17/1 | Left rear seat ground point | 9E |
| X240/2x1 | 2nd seat row armrest electrical connector | 70H |
| X242/3x1 | Left load compartment electrical connector | 41H |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 12L |
| X55/21x1 | Left 3rd seat row connector block | 14F |
| X55/5x2 | Left rear seat adjustment unit connector block | 41F |
| X55/5x4 | Left rear seat adjustment unit connector block | 67H |
| Z260z1 | Rear seats LIN bus end sleeve | 24E |
| Z35/73z1 | Interior CAN (CAN B) High connector sleeve | 11F |
| Z35/74z1 | Interior CAN (CAN B) low connector sleeve | 12F |
| Z6/138z1 | Left 2nd seat row seat cushion adjustment connector sleeve | 65E |
| Z6/140z1 | Left 2nd seat row backrest adjustment connector sleeve | 33G |
| Z6/142z1 | Left 2nd seat row switch connector sleeve | 39G |
| Z6/142z1 | Left 2nd seat row switch connector sleeve | 41D |
| Z6/142z1 | Left 2nd seat row switch connector sleeve | 45G |
| Z61/59z1 | Left folding seat backrest switch lighting end sleeve | 44G |
| Z61/68z1 | Hall sensor ground connection connector sleeve | 17H |
