Remove/Install Seat Ventilation Motors On Backrest In Rear - AR91.30-P-1906MEM
Model 167.9
With Code M036 (Maybach Version)
MODIFICATION NOTES
| 04.03.2020 | Remove seat backrest added. | Operation step 1 |
Shown on right backrest

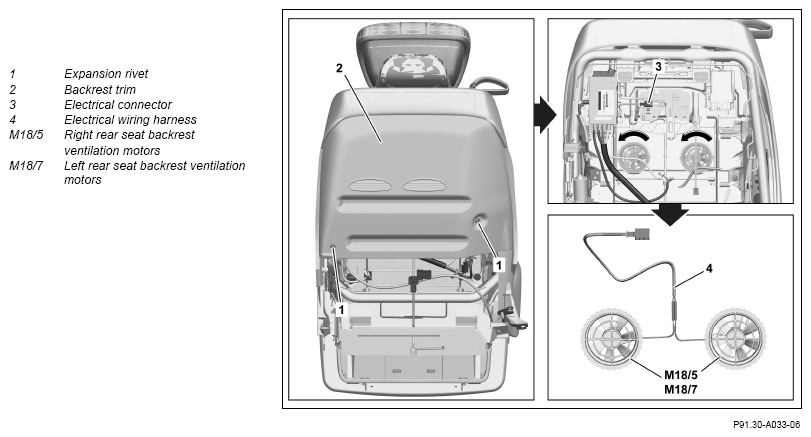

Fig 1: Seat Ventilation Motors On Backrest In Rear Components Location - Model 167.9 With Code M036 (Shown On Right Backrest)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove seat backrest. | AR91.12-P-1713MEM | |
| 2 | Unclip expansion rivets (1). | Fig 2 | |
| 3 | Remove seat backrest trim (2). | ||
| 4 | Disconnect electrical connector (3). | ||
| 5 | Release rear seat backrest seat ventilation motors (M18/5, M18/7) by turning (arrows). | ||
| 6 | Expose electrical wiring harness (5). | ||
| 7 | Remove rear seat backrest seat ventilation motors (M18/5, M18/7). | ||
| 8 | Install in the reverse order. |
