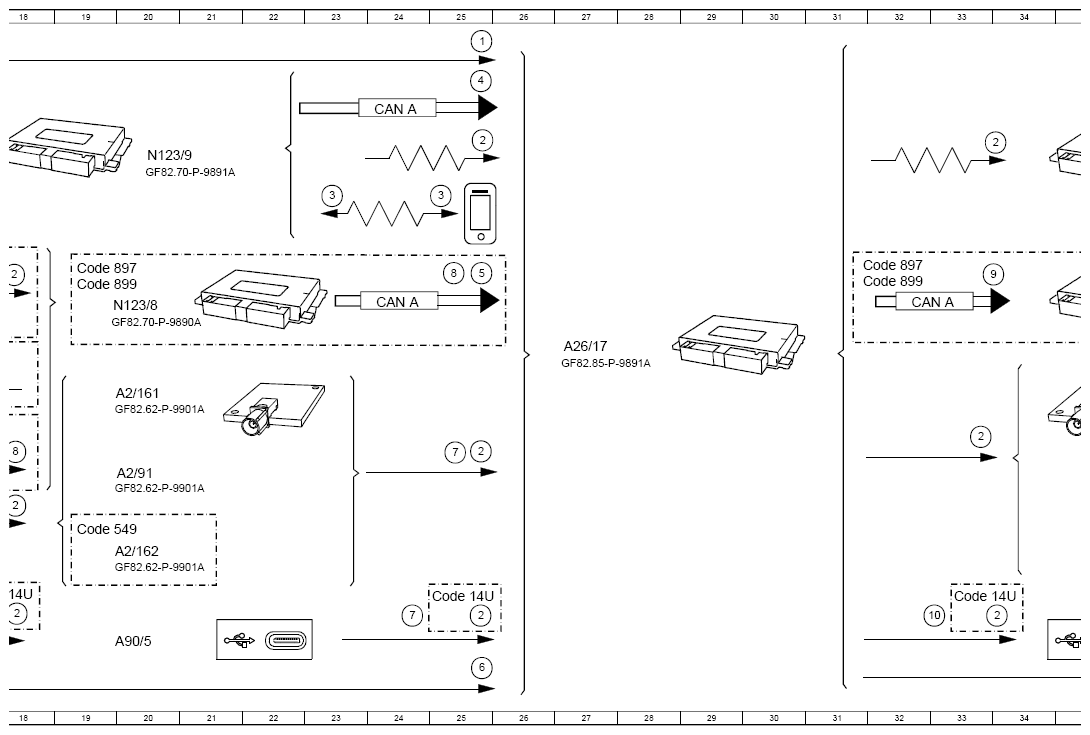

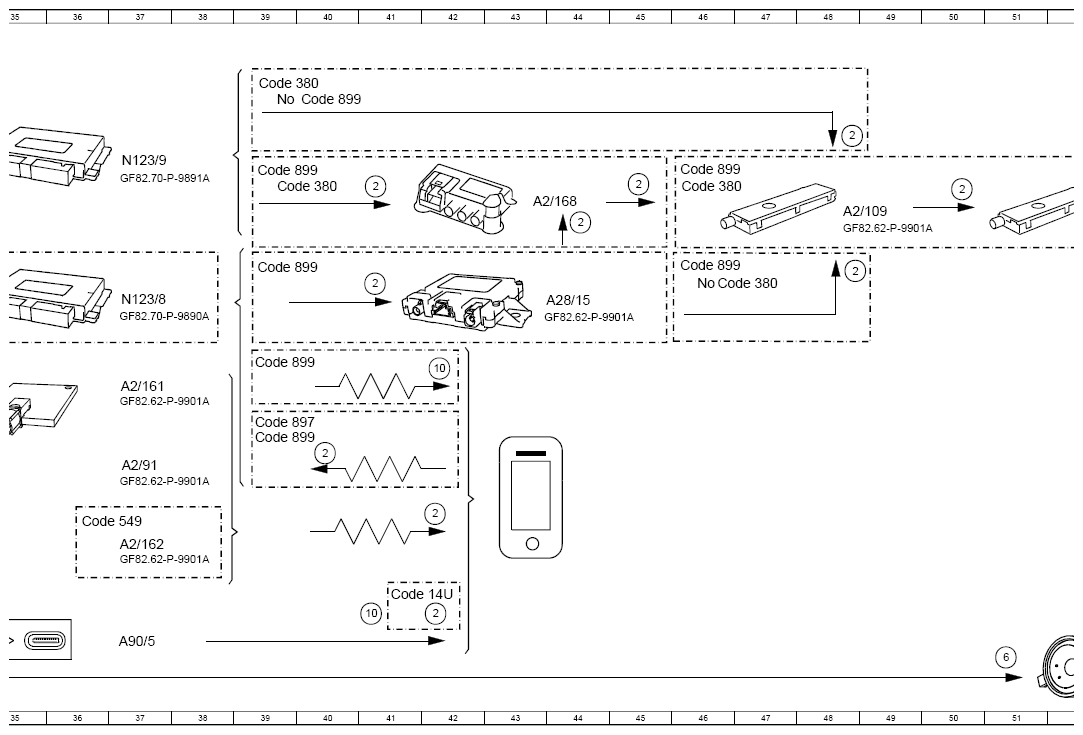

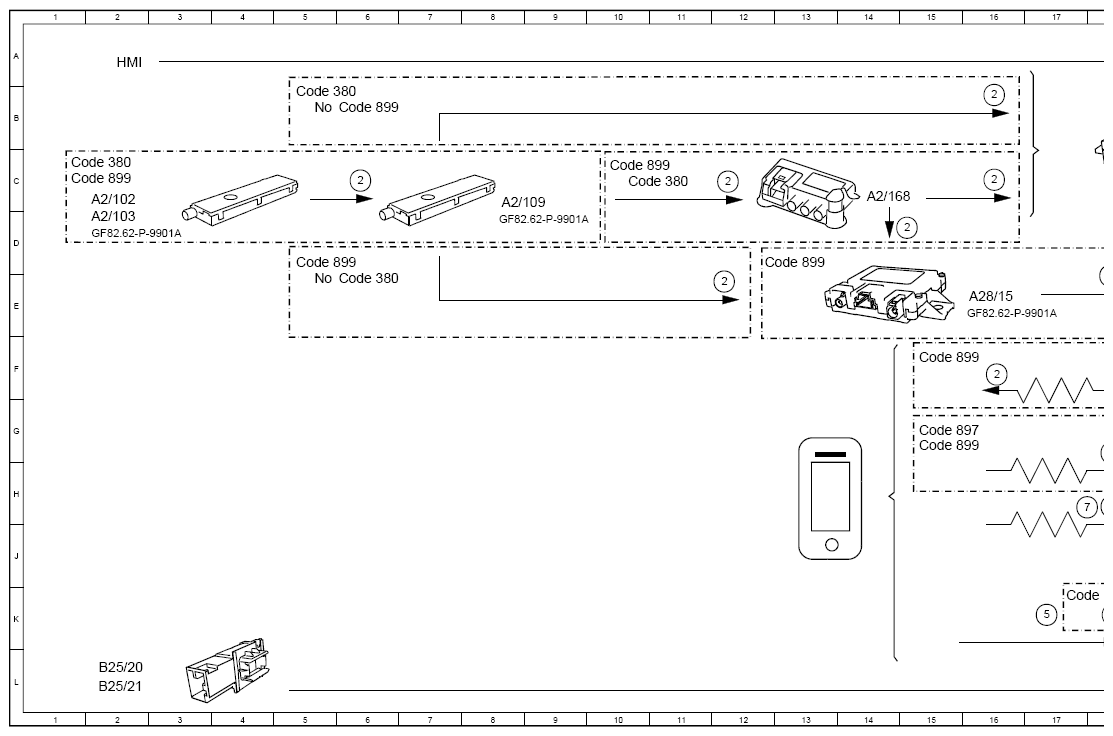

Function Schematic For Telephony - PE82.70-P-2501-97B
Model 167
| Code: | Designation: | Position: |
|---|---|---|
| *7468 | Bluetooth® SAP, communication | - |
| 1 | Operation, signal | 25A |
| 10 | Charging current, energy flow | 33K |
| 10 | Charging current, energy flow | 41K |
| 10 | Charging current, energy flow | 42F |
| 2 | Telephone, signal | 6C |
| 2 | Telephone, signal | 18E |
| 2 | Telephone, signal | 12C |
| 2 | Telephone, signal | 50C |
| 2 | Telephone, signal | 12E |
| 2 | Telephone, signal | 16B |
| 2 | Telephone, signal | 16C |
| 2 | Telephone, signal | 15D |
| 2 | Telephone, signal | 48B |
| 2 | Telephone, signal | 44D |
| 2 | Telephone, signal | 45C |
| 2 | Telephone, signal | 41C |
| 2 | Telephone, signal | 41E |
| 2 | Telephone, signal | 16F |
| 2 | Telephone, signal | 18H |
| 2 | Telephone, signal | 25G |
| 2 | Telephone, signal | 25K |
| 2 | Telephone, signal | 18K |
| 2 | Telephone, signal | 25B |
| 2 | Telephone, signal | 34B |
| 2 | Telephone, signal | 48D |
| 2 | Telephone, signal | 34K |
| 2 | Telephone, signal | 33G |
| 2 | Telephone, signal | 42K |
| 2 | Telephone, signal | 42H |
| 2 | Telephone, signal | 40G |
| 4 | SIM card, status | 25B |
| 5 | Cellular telephone system compensator, status | 17K |
| 5 | Cellular telephone system compensator, status | 25D |
| 6 | Audio, signal | 51L |
| 6 | Audio, signal | 25L |
| 7 | Address data, signal | 17H |
| 7 | Address data, signal | 24K |
| 7 | Address data, signal | 25G |
| 8 | Charge level, status | 18G |
| 8 | Charge level, status | 25E |
| 9 | Charging voltage and charging current, request | 34E |
| A2/102 | Driver-side telephone antenna | 2C |
| A2/102 | Driver-side telephone antenna | 53C |
| A2/103 | Passenger-side telephone antenna | 2D |
| A2/103 | Passenger-side telephone antenna | 53D |
| A2/109 | Telephone antenna splitter | 8C |
| A2/109 | Telephone antenna splitter | 48D |
| A2/161 | Bluetooth® / WiFi antenna | 20F |
| A2/161 | Bluetooth® / WiFi antenna | 37F |
| A2/162 | Bluetooth® / WiFi antenna | 20J |
| A2/162 | Bluetooth® / WiFi antenna | 37J |
| A2/168 | Telephone antenna changeover switch | 14C |
| A2/168 | Telephone antenna changeover switch | 43C |
| A2/91 | Bluetooth® / WiFi antenna | 20H |
| A2/91 | Bluetooth® / WiFi antenna | 37H |
| A26/17 | Head unit | 27F |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 16E |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 44E |
| A90/5 | Multimedia connection unit | 19K |
| A90/5 | Multimedia connection unit | 37K |
| B25/20 | Driver hands-free system microphone | 2L |
| B25/21 | Front passenger hands-free system microphone | 2L |
| CAN A | Telematics CAN | 24B |
| CAN A | Telematics CAN | 24E |
| CAN A | Telematics CAN | 32E |
| Code 14U | 25K | |
| Code 14U | 17K | |
| Code 14U | 33K | |
| Code 14U | 41K | |
| Code 380 | Car telephony package | 1C |
| Code 380 | Car telephony package | 6E |
| Code 380 | Car telephony package | 5B |
| Code 380 | Car telephony package | 10C |
| Code 380 | Car telephony package | 39B |
| Code 380 | Car telephony package | 46C |
| Code 380 | Car telephony package | 39C |
| Code 380 | Car telephony package | 46E |
| Code 549 | Connect 20 HIGH (NTG6) | 19J |
| Code 549 | Connect 20 HIGH (NTG6) | 36J |
| Code 897 | Wireless mobile phone charging | 15G |
| Code 897 | Wireless mobile phone charging | 19D |
| Code 897 | Wireless mobile phone charging | 31D |
| Code 897 | Wireless mobile phone charging | 39G |
| Code 899 | Wireless phone charging at front and antenna | 15F |
| Code 899 | Wireless phone charging at front and antenna | 15G |
| Code 899 | Wireless phone charging at front and antenna | 19E |
| Code 899 | Wireless phone charging at front and antenna | 12D |
| Code 899 | Wireless phone charging at front and antenna | 5D |
| Code 899 | Wireless phone charging at front and antenna | 6B |
| Code 899 | Wireless phone charging at front and antenna | 10C |
| Code 899 | Wireless phone charging at front and antenna | 40B |
| Code 899 | Wireless phone charging at front and antenna | 46C |
| Code 899 | Wireless phone charging at front and antenna | 1C |
| Code 899 | Wireless phone charging at front and antenna | 39C |
| Code 899 | Wireless phone charging at front and antenna | 39D |
| Code 899 | Wireless phone charging at front and antenna | 31E |
| Code 899 | Wireless phone charging at front and antenna | 46D |
| Code 899 | Wireless phone charging at front and antenna | 39G |
| Code 899 | Wireless phone charging at front and antenna | 39F |
| N123/8 | Mobile phone cradle control unit | 20E |
| N123/8 | Mobile phone cradle control unit | 37E |
| N123/9 | Telephone control unit | 20C |
| N123/9 | Telephone control unit | 37C |
