Remove/Install Wi-Fi Antenna In Center Of Instrument Panel - AR82.85-P-0013ME
Model 167
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove instrument panel. | AR68.10-P-1000ME | |
| 2 | Release and disconnect electrical connector from Bluetooth® antenna 1 (A2/162). | ||

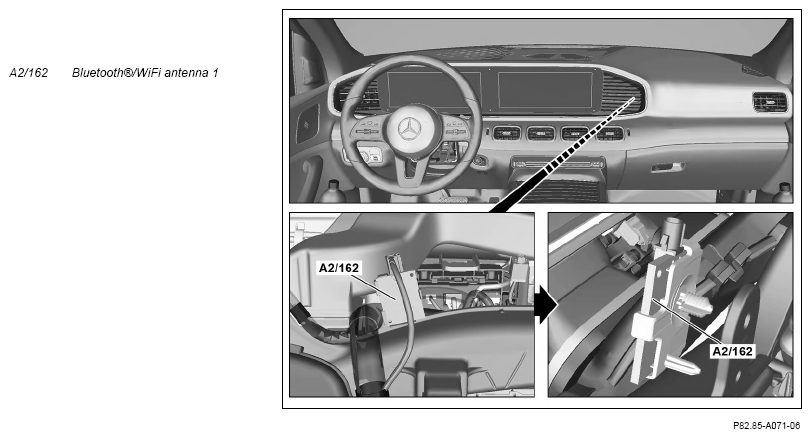

| 3 | Unclip Bluetooth® antenna 1 (A2/162). | Fig 1 | |
| 4 | Install in the reverse order |
