Underbody Paneling Remove And Install - Ar61.30-P-1001GQ
Model 166, 292
Front underfloor paneling (2)
Center underfloor paneling (4)
Rear underfloor paneling (6)
Front side underfloor paneling (10)
Rear side underfloor paneling (13)
| Risk of injury from engine start by remote start function | Prior to starting work, open engine hood, do not reach into rotation range or hazard area of freely rotating parts, wear closed and snug-fitting work clothes | AS00.00-Z-0024-01A | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Remove/install | |||
| 1 | Open engine hood | Model 292 | |
| 2 | Lift vehicle on vehicle lift | AR00.60-P-1000GZ | |

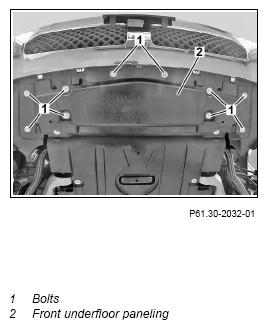

| 3 | Unscrew bolts (1) and remove front underfloor paneling (2) | When removing front underfloor paneling (2). | |

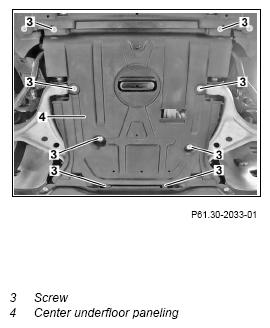

| 4 | Unscrew bolts (3) and remove center underfloor paneling (4) | When removing center underfloor paneling (4) | |

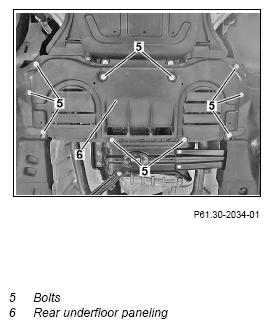

| 5 | Unscrew bolts (5) and remove rear underfloor paneling (6) | When removing rear underfloor paneling (6). | |
| 6 | Partially detach rear underfloor paneling (6) at side | When removing front side underfloor paneling (10). | |

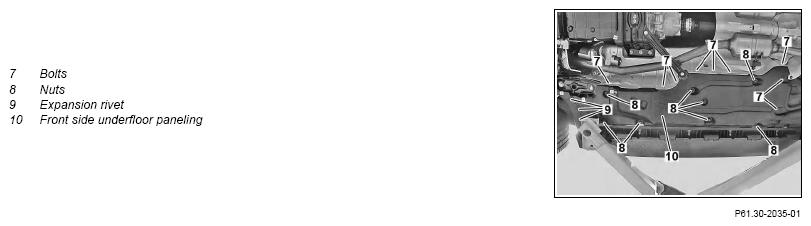

| 7 | Remove expansion rivet (9) and remove front side underfloor paneling (10) | When removing front side underfloor paneling (10). | |
| Fig 1 | |||
| 8 | Unscrew bolts (7) from front side underfloor paneling (10) | When removing front side underfloor paneling (10). | |
| 9 | Unscrew nuts (8) and remove front side underfloor paneling (10) | When removing front side underfloor paneling (10). | |

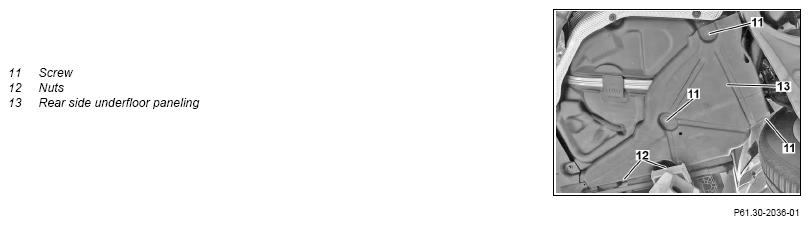

| 10 | Unscrew bolts (11) from rear side underfloor paneling (13) | When removing rear side underfloor paneling (13). | |
| 11 | Unscrew nuts (12) and remove rear side underfloor paneling (13) | When removing rear side underfloor paneling (13). | |
| 12 | Install in the reverse order |
