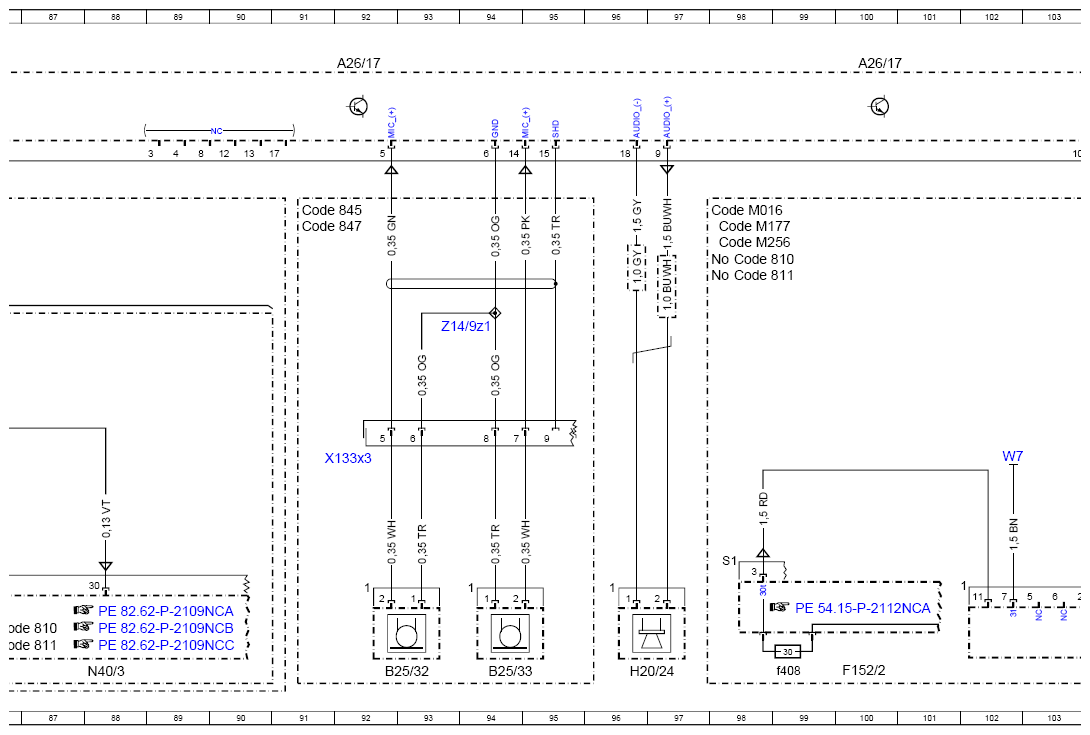

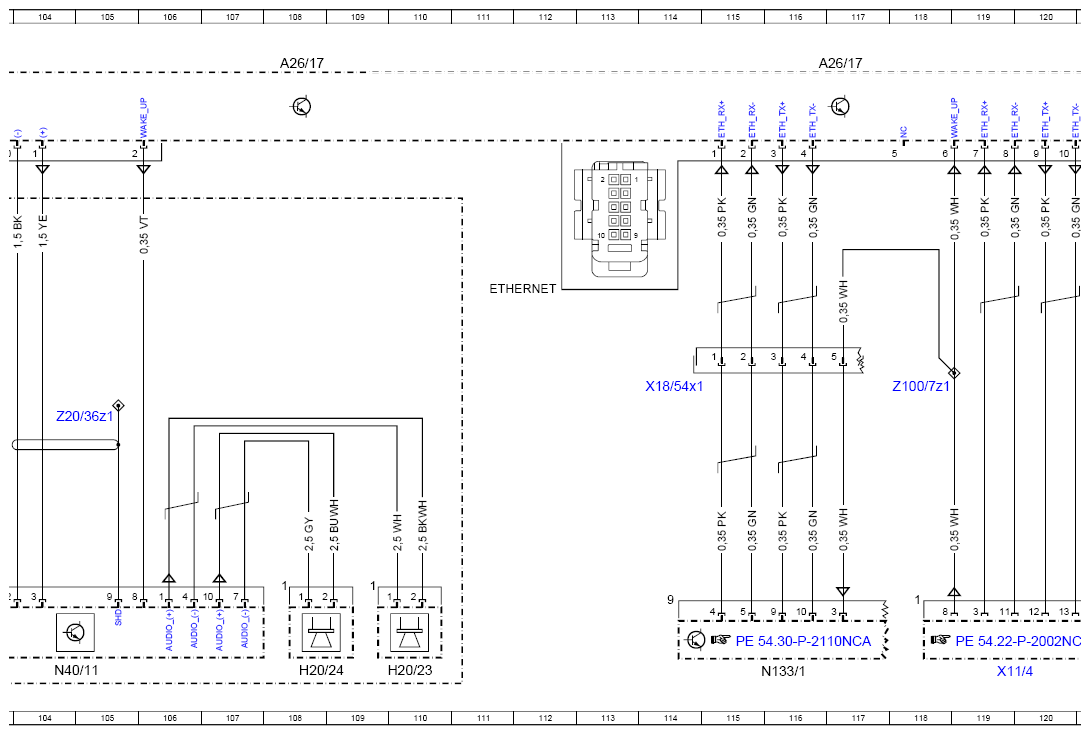

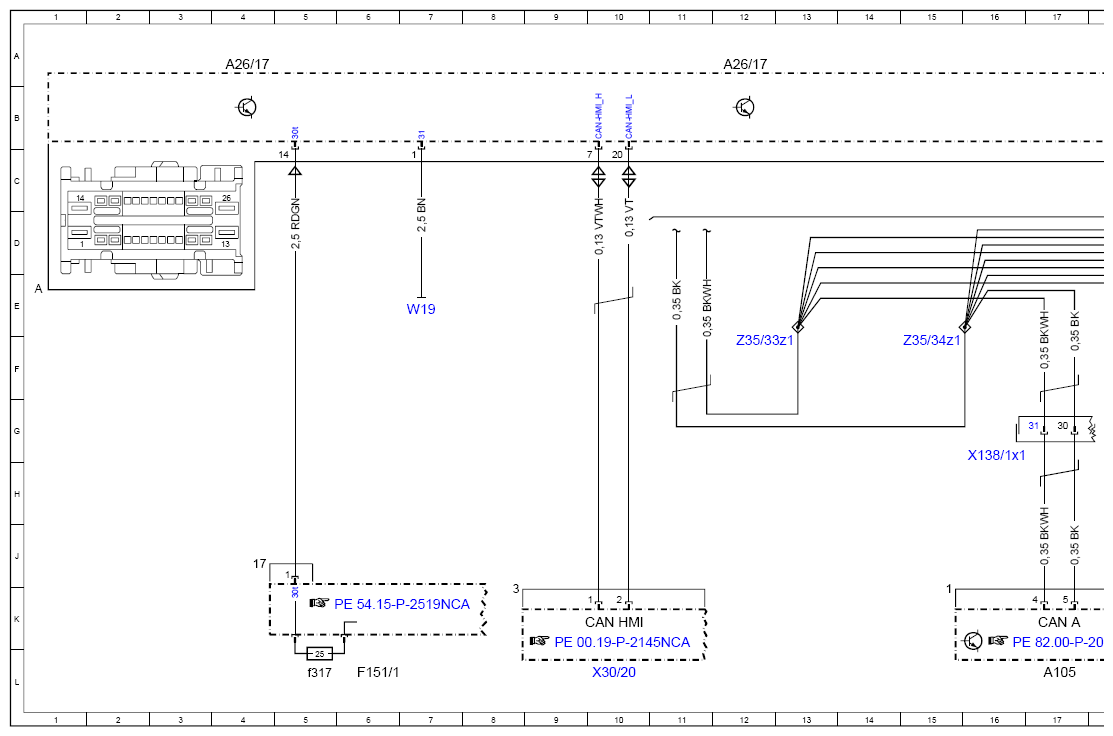

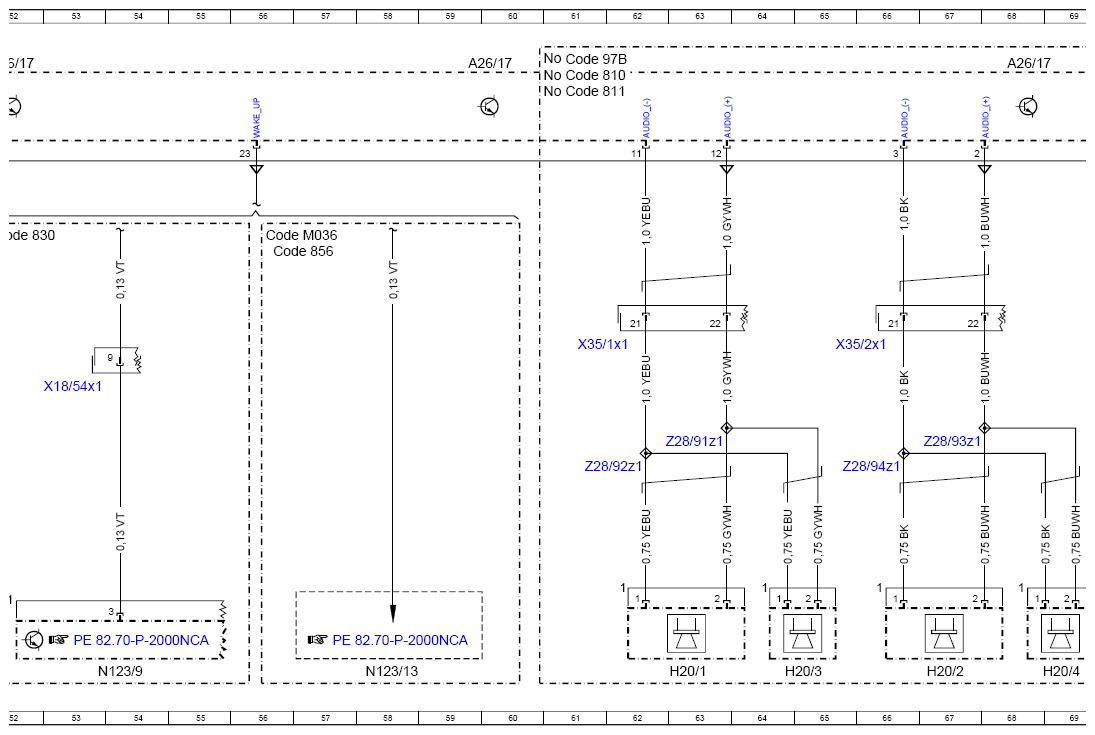

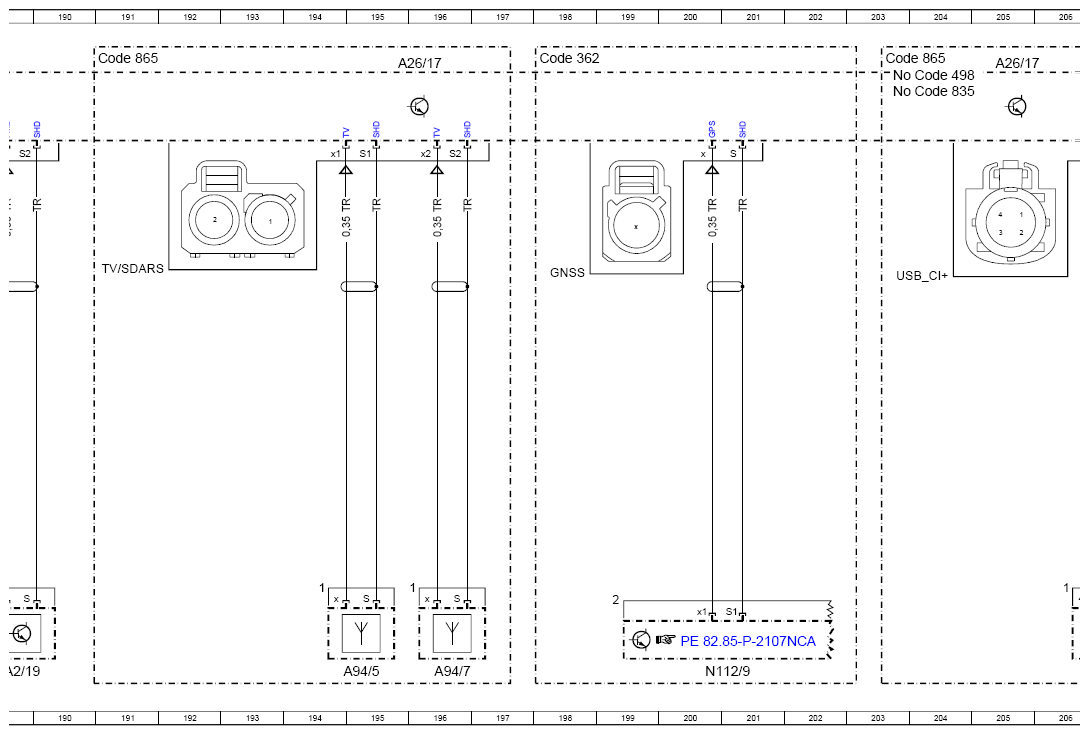

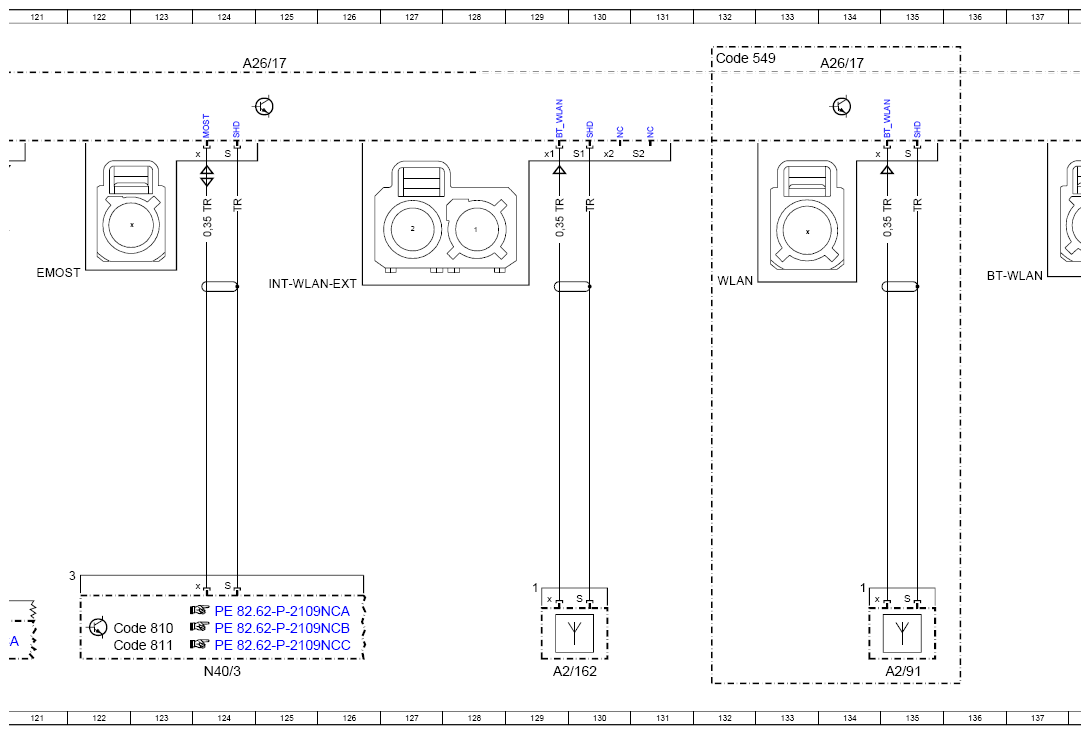

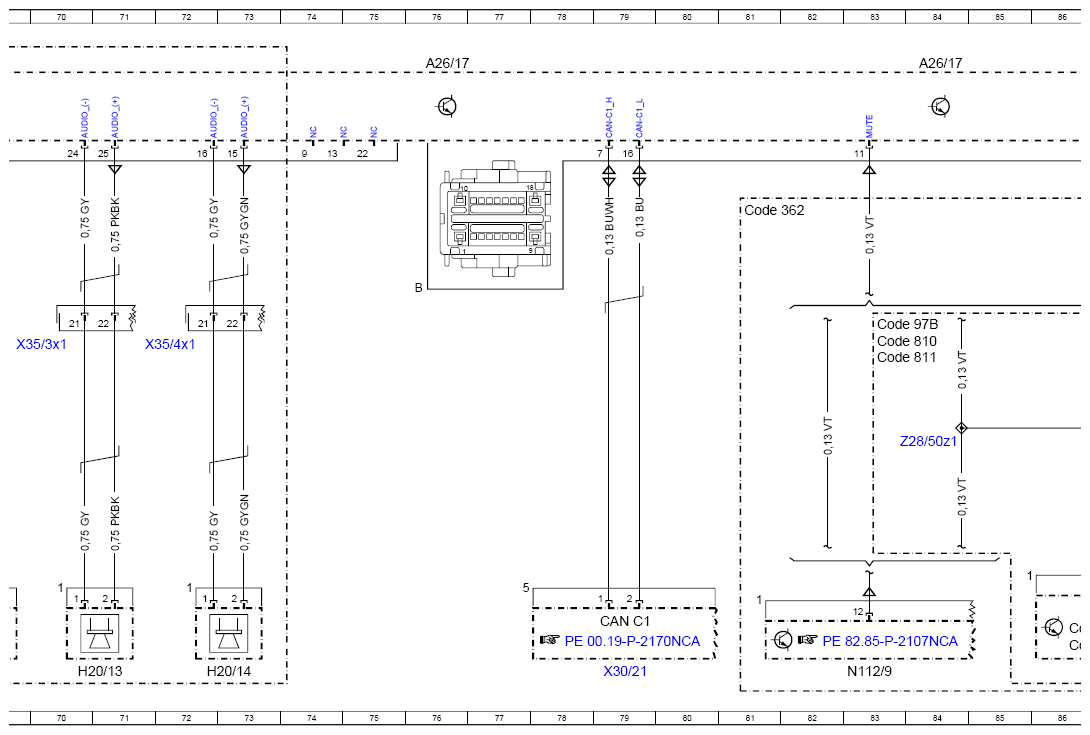

Wiring Diagram Of Head Unit - PE82.85-P-2110-97NCA
Model 167
Head unit A26/17
| Code: | Designation: | Position: |
|---|---|---|

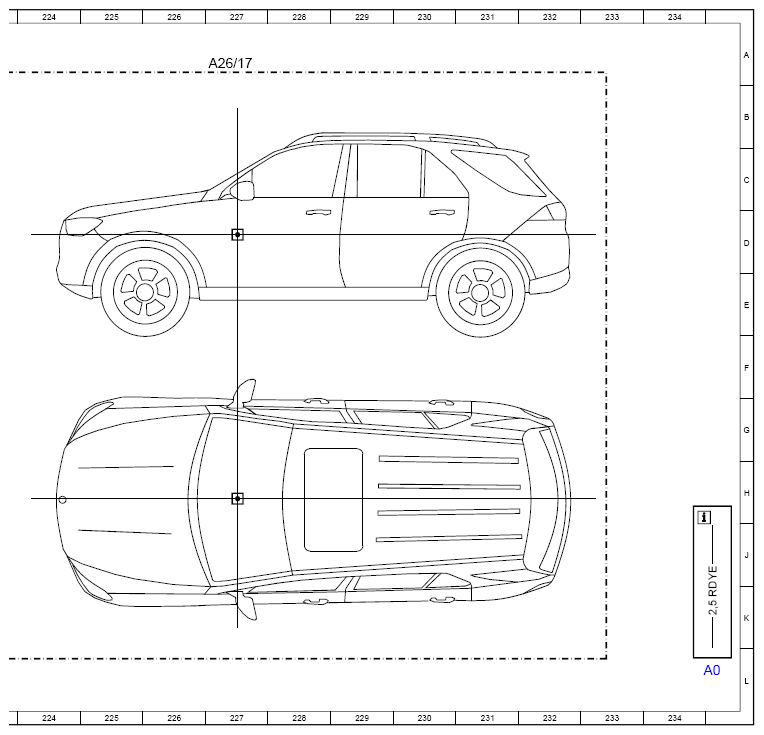

| A0 | Use of wiring diagrams | 235L |
| A105 | Touchpad | 17L |
| A2/105 | SDARS antenna | 213L |
| A2/161 | Bluetooth®/WiFi antenna 3 | 139L |
| A2/162 | Bluetooth®/WiFi antenna 1 | 129L |
| A2/18 | FM, AM, CL [ZV] and KEYLESS GO antenna amplifier | 187L |
| A2/19 | FM2, DAB and TV2 antenna amplifier | 189L |
| A2/91 | Bluetooth®/WiFi antenna 2 | 135L |
| A26/17 | Head unit | 4A |
| A26/17 | Head unit | 12A |
| A26/17 | Head unit | 20A |
| A26/17 | Head unit | 36A |
| A26/17 | Head unit | 28A |
| A26/17 | Head unit | 44A |
| A26/17 | Head unit | 59A |
| A26/17 | Head unit | 52A |
| A26/17 | Head unit | 68A |
| A26/17 | Head unit | 76A |
| A26/17 | Head unit | 84A |
| A26/17 | Head unit | 92A |
| A26/17 | Head unit | 100A |
| A26/17 | Head unit | 108A |
| A26/17 | Head unit | 117A |
| A26/17 | Head unit | 134A |
| A26/17 | Head unit | 124A |
| A26/17 | Head unit | 140A |
| A26/17 | Head unit | 148A |
| A26/17 | Head unit | 156A |
| A26/17 | Head unit | 164A |
| A26/17 | Head unit | 172A |
| A26/17 | Head unit | 180A |
| A26/17 | Head unit | 188A |
| A26/17 | Head unit | 195A |
| A26/17 | Head unit | 205A |
| A26/17 | Head unit | 212A |
| A26/17 | Head unit | 227A |
| A26/17 | Head unit | 219A |

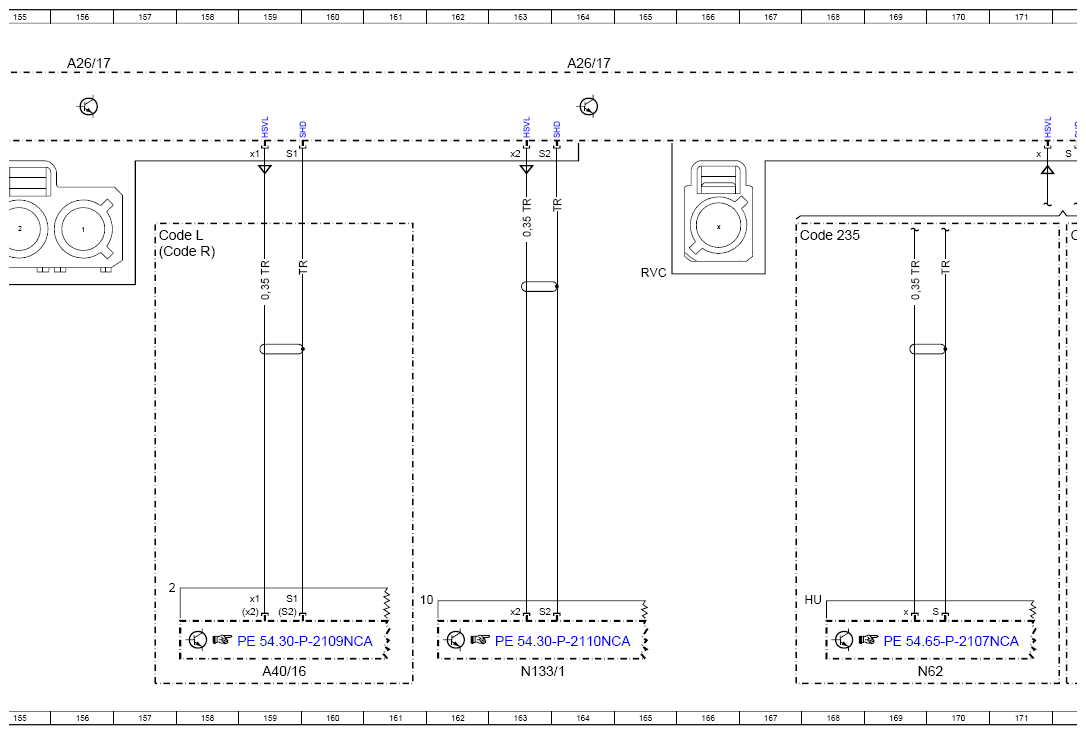

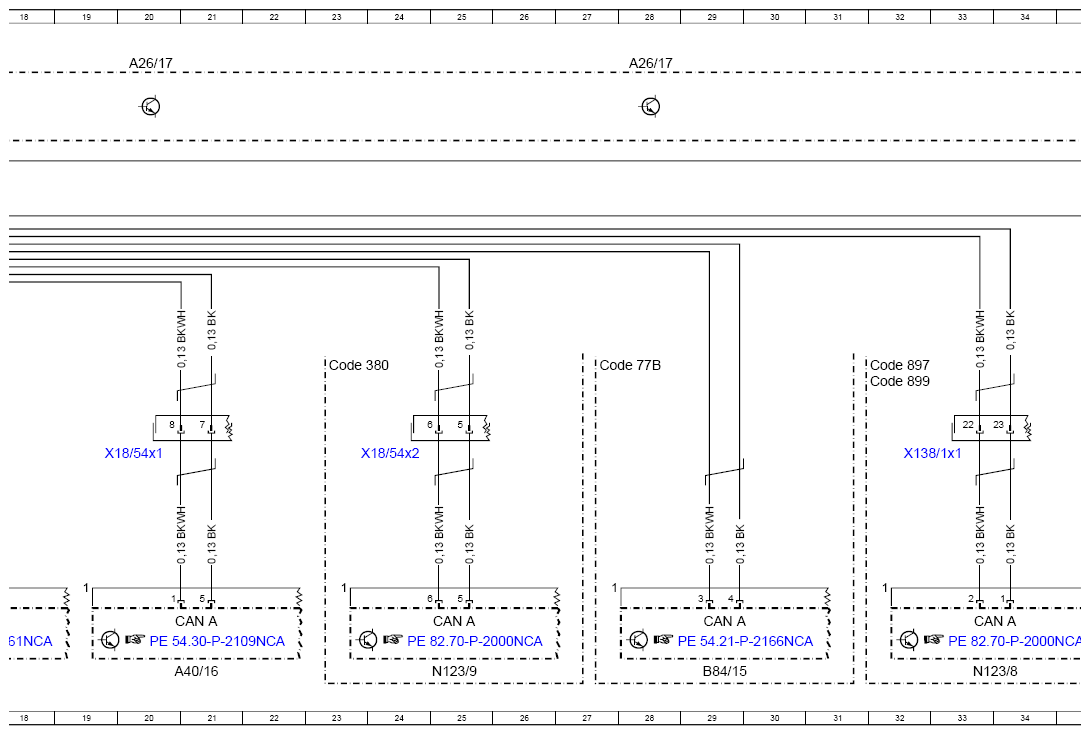

| A40/16 | Head unit/instrument cluster display cluster | 21L |
| A40/16 | Head unit/instrument cluster display cluster | 159L |
| A50/6 | Dedicated Short-Range Communications control unit | 151L |

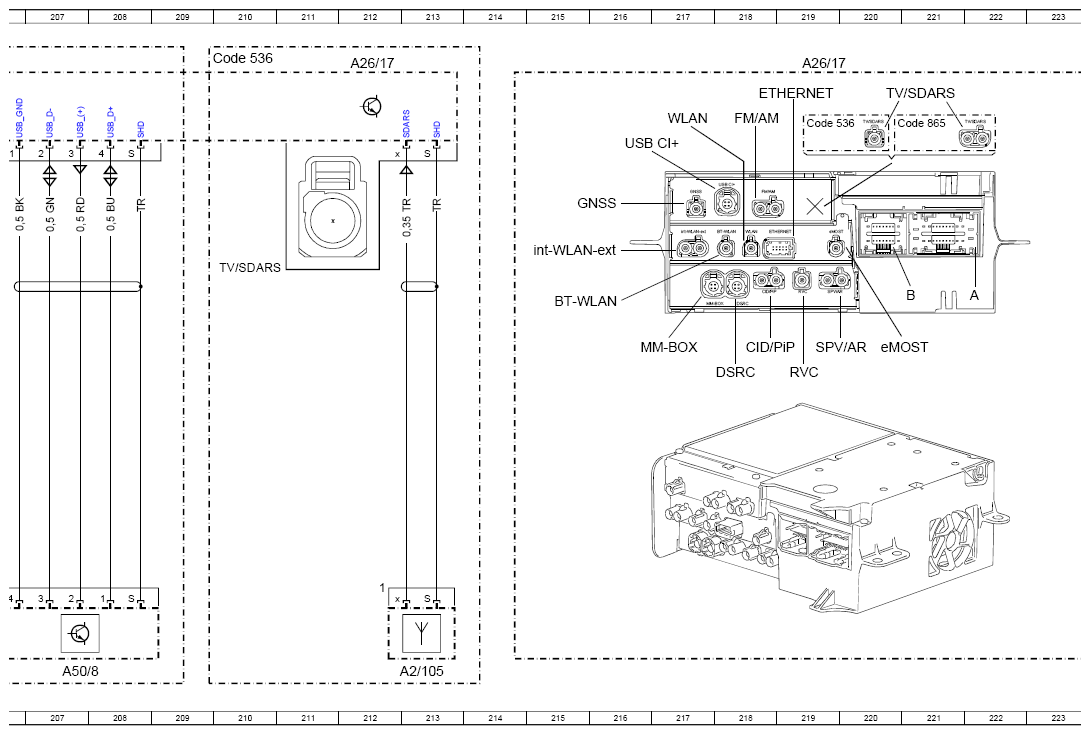

| A50/8 | TV card reader | 207L |

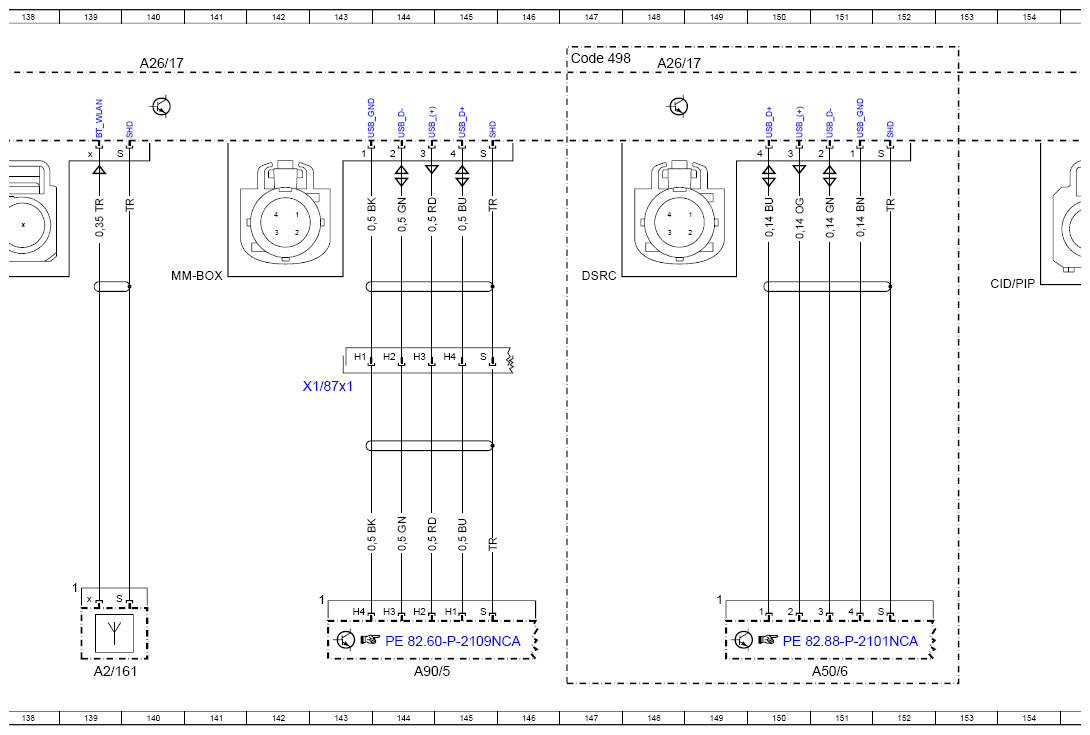

| A90/5 | Multimedia connection unit | 49L |
| A90/5 | Multimedia connection unit | 144L |
| A94/5 | TV 1 antenna amplifier | 195L |
| A94/7 | TV 3 antenna amplifier | 196L |

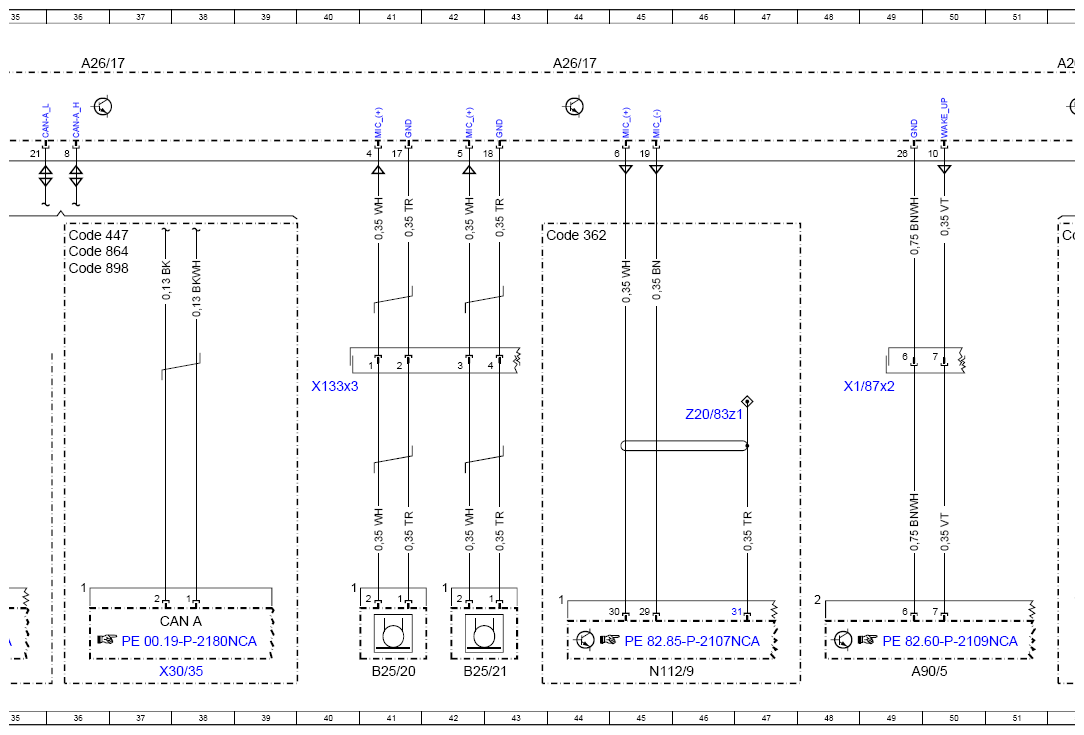

| B25/20 | Driver hands-free system microphone | 41L |
| B25/21 | Front passenger hands-free system microphone | 42L |
| B25/32 | Left rear hands-free system microphone | 92L |
| B25/33 | Right rear hands-free system microphone | 94L |

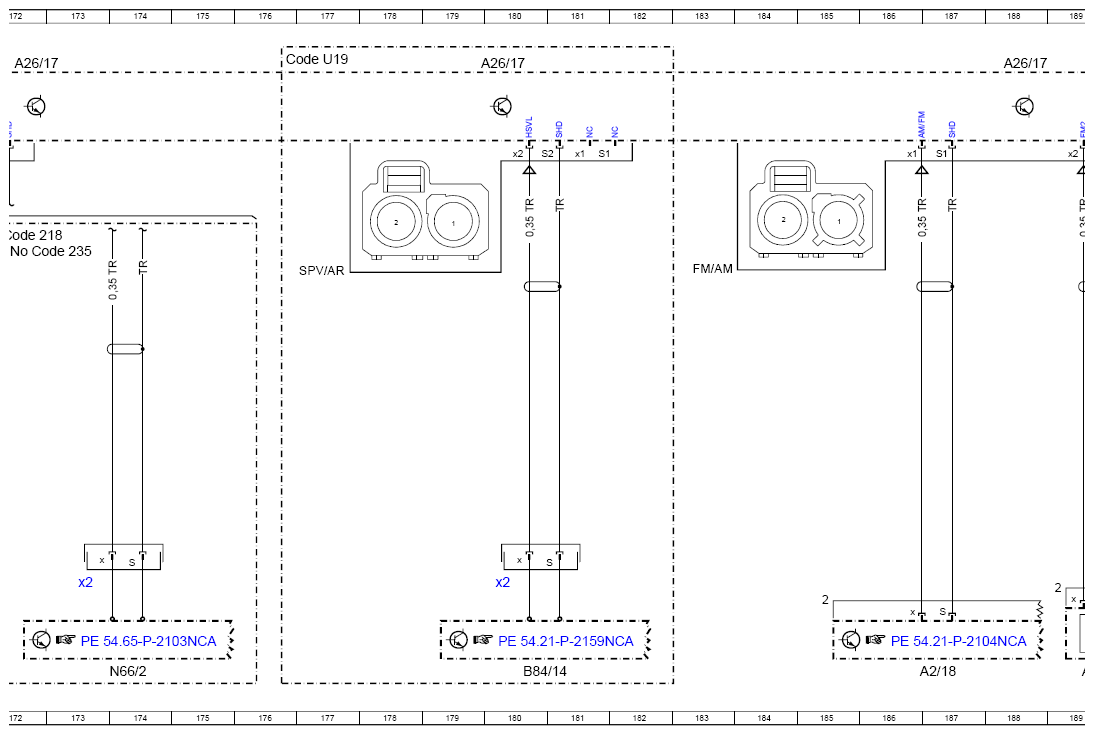

| B84/14 | Augmented reality camera | 180L |
| B84/14x2 | Augmented reality camera electrical connector 2 | 180K |
| B84/15 | Hand motion sensor | 29L |
| CAN A | Telematics CAN | 17K |
| CAN A | Telematics CAN | 21K |
| CAN A | Telematics CAN | 25K |
| CAN A | Telematics CAN | 29K |
| CAN A | Telematics CAN | 33K |
| CAN A | Telematics CAN | 38K |
| CAN C1 | Drive train CAN | 79K |
| CAN HMI | User interface CAN | 10K |
| Code 218 | Backup camera | 172D |
| Code 235 | Active Parking Assist with PARKTRONIC | 167D |
| Code 235 | Active Parking Assist with PARKTRONIC | 172D |
| Code 362 | HERMES LTE | 43D |
| Code 362 | HERMES LTE | 81D |
| Code 362 | HERMES LTE | 198A |
| Code 380 | Car telephony package | 23F |
| Code 447 | Touchscreen in rear passenger compartment (rear touchscreen) | 36D |
| Code 498 | Japan version | 147A |
| Code 498 | Japan version | 204A |
| Code 536 | SIRIUS satellite radio | 209A |
| Code 536 | SIRIUS satellite radio | 219B |
| Code 549 | Connect 20 HIGH (NTG6) | 132A |
| Code 77B | Contactless gesture control at front | 27F |
| Code 810 | Sound system | 86K |
| Code 810 | Sound system | 83F |
| Code 810 | Sound system | 61A |
| Code 810 | Sound system | 98D |
| Code 810 | Sound system | 122K |
| Code 811 | Advanced sound system | 98E |
| Code 811 | Advanced sound system | 86L |
| Code 811 | Advanced sound system | 83F |
| Code 811 | Advanced sound system | 61B |
| Code 811 | Advanced sound system | 122L |
| Code 830 | Additional parts for China vehicles | 52D |
| Code 835 | Additional parts for South Korea vehicles | 204B |
| Code 845 | Electric folding 3rd seat row | 91D |
| Code 847 | 3rd seat row | 91D |
| Code 856 | Business telephony in rear passenger compartment | 56D |
| Code 864 | Rear entertainment system | 36D |
| Code 865 | TV tuner | 191A |
| Code 865 | TV tuner | 203A |
| Code 865 | TV tuner | 220B |
| Code 897 | Wireless mobile phone charging | 32F |
| Code 898 | Wireless charging in rear passenger compartment | 36D |
| Code 899 | Wireless phone charging at front and antenna | 32F |
| Code 97B | Engine noise reduction via speaker | 83E |
| Code 97B | Engine noise reduction via speaker | 61A |
| Code L | LEFT-HAND DRIVE | 157D |
| Code M016 | Updated high-performance engine | 98D |
| Code M036 | Maybach version | 56D |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 98D |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 98D |
| Code R | RIGHT-HAND DRIVE | 157D |
| Code U19 | Augmented Reality | 176A |
| F151/1 | Passenger-side A-pillar fuse box | 6L |
| F151/1f317 | Fuse 317 | 5L |
| F152/2 | Rear fuse and relay module | 100L |
| F152/2f408 | Fuse 408 | 99L |
| H20/1 | Left front tweeter (Standard) | 63L |
| H20/13 | Left rear mid-range speaker (Standard) | 70L |
| H20/14 | Right rear mid-range speaker (Standard) | 73L |
| H20/2 | Right front tweeter (Standard) | 67L |
| H20/23 | Left front bass speaker (Standard) | 110L |
| H20/24 | Right front bass speaker (Standard) | 96L |
| H20/24 | Right front bass speaker (Standard) | 108L |
| H20/3 | Left front mid-range speaker (Standard) | 65L |
| H20/4 | Right front mid-range speaker (Standard) | 69L |
| N112/9 | HERMES control unit | 45L |
| N112/9 | HERMES control unit | 83L |
| N112/9 | HERMES control unit | 200L |
| N123/13 | Handset charging control unit | 58L |
| N123/8 | Front mobile phone cradle control unit | 33L |
| N123/9 | Telephone control unit | 25L |
| N123/9 | Telephone control unit | 54L |
| N133/1 | Instrument cluster control unit | 116L |
| N133/1 | Instrument cluster control unit | 163L |
| N40/11 | AMG sound system amplifier | 104L |
| N40/3 | Sound system amplifier control unit | 88L |
| N40/3 | Sound system amplifier control unit | 124L |
| N62 | Parking system control unit | 169L |
| N66/2 | Backup camera control unit | 174L |
| N66/2x2 | Reversing camera control unit electrical connector 2 | 173K |
| W19 | Right front seat crossmember ground point | 7E |
| W7 | Right wheelhouse trunk ground point | 102H |
| X1/87x1 | Multimedia connection unit electrical connector | 143F |
| X1/87x2 | Multimedia connection unit electrical connector | 49F |
| X11/4 | Diagnostic connector | 119L |
| X133x3 | Roof/vehicle interior electrical connector | 40F |
| X133x3 | Roof/vehicle interior electrical connector | 92H |
| X138/1x1 | Front center console electrical connector | 16G |
| X138/1x1 | Front center console electrical connector | 33G |
| X18/54x1 | Front passenger cockpit/interior wiring harness electrical connector | 20G |
| X18/54x1 | Front passenger cockpit/interior wiring harness electrical connector | 53F |
| X18/54x1 | Front passenger cockpit/interior wiring harness electrical connector | 114F |
| X18/54x2 | Front passenger cockpit/interior wiring harness electrical connector | 24G |
| X30/20 | User interface CAN (CAN HMI) potential distributor electrical connector | 10L |
| X30/21 | Drive train CAN (CAN C1) potential distributor electrical connector | 79L |
| X30/35 | Telematics CAN (CAN A) potential distributor electrical connector | 37L |
| X35/1x1 | Left front door electrical connector | 61F |
| X35/2x1 | Right front door electrical connector | 66F |
| X35/3x1 | Left rear door electrical connector | 70F |
| X35/4x1 | Right rear door electrical connector | 72F |
| Z100/7z1 | Wake-up signal connector sleeve | 118F |
| Z14/9z1 | Left rear microphone connector sleeve | 94E |
| Z20/36z1 | Cable shield end sleeve | 105G |
| Z20/83z1 | Shielding connector sleeve | 46G |
| Z28/50z1 | Mute connector sleeve | 84G |
| Z28/91z1 | Left front door midrange speaker connector sleeve (+) | 63G |
| Z28/92z1 | Left front door midrange speaker connector sleeve (-) | 62H |
| Z28/93z1 | Right front door midrange speaker connector sleeve (+) | 67G |
| Z28/94z1 | Right front door midrange speaker connector sleeve (-) | 66H |
| Z35/33z1 | Head unit CAN (high) connector sleeve | 12F |
| Z35/34z1 | Head unit CAN (low) connector sleeve | 15F |
