Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97NCB

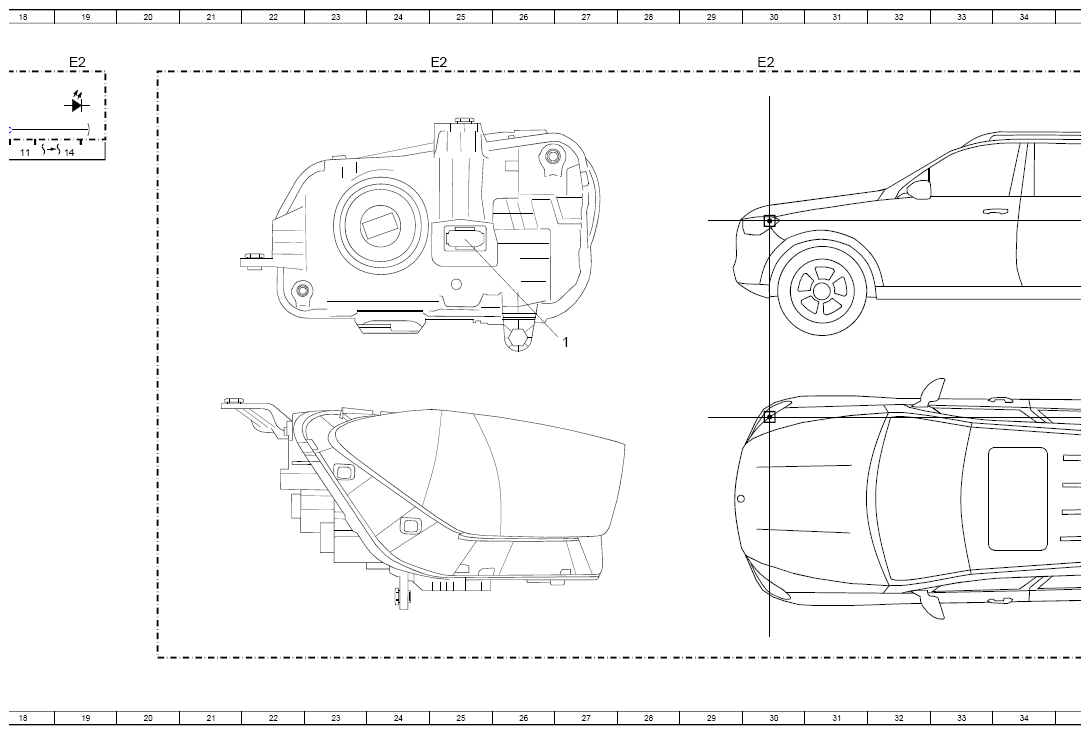

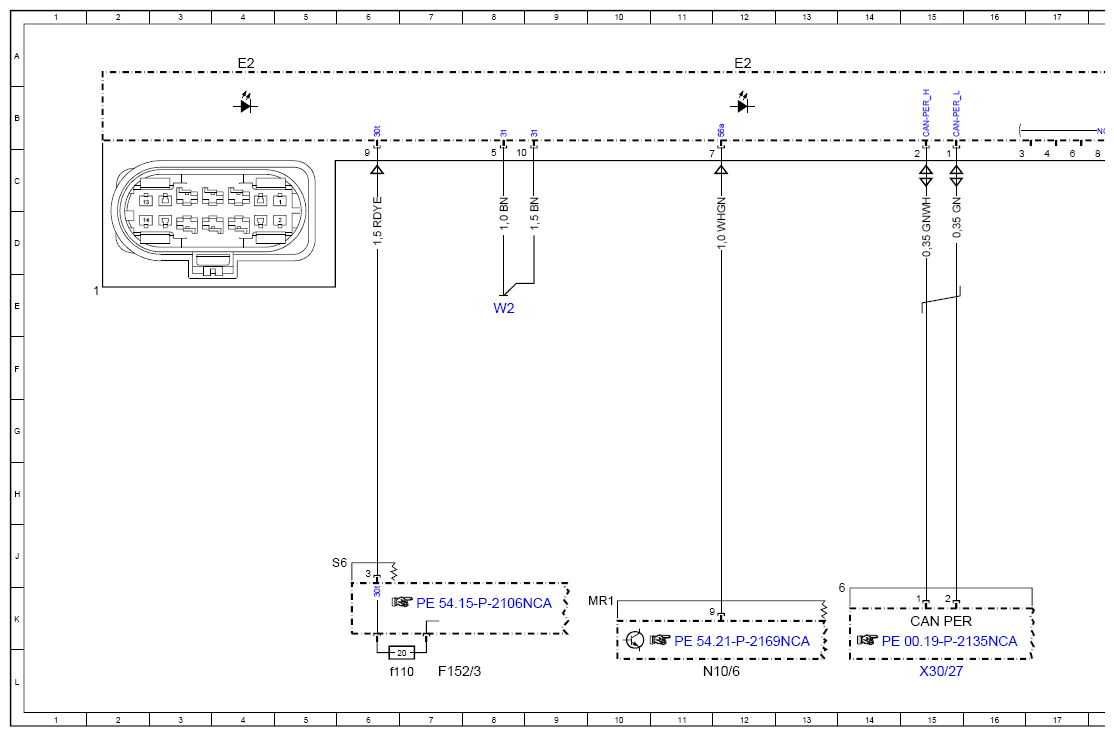

Model 167 with code 613 (headlights left-hand-traffic)
Partial LED headlamp E2

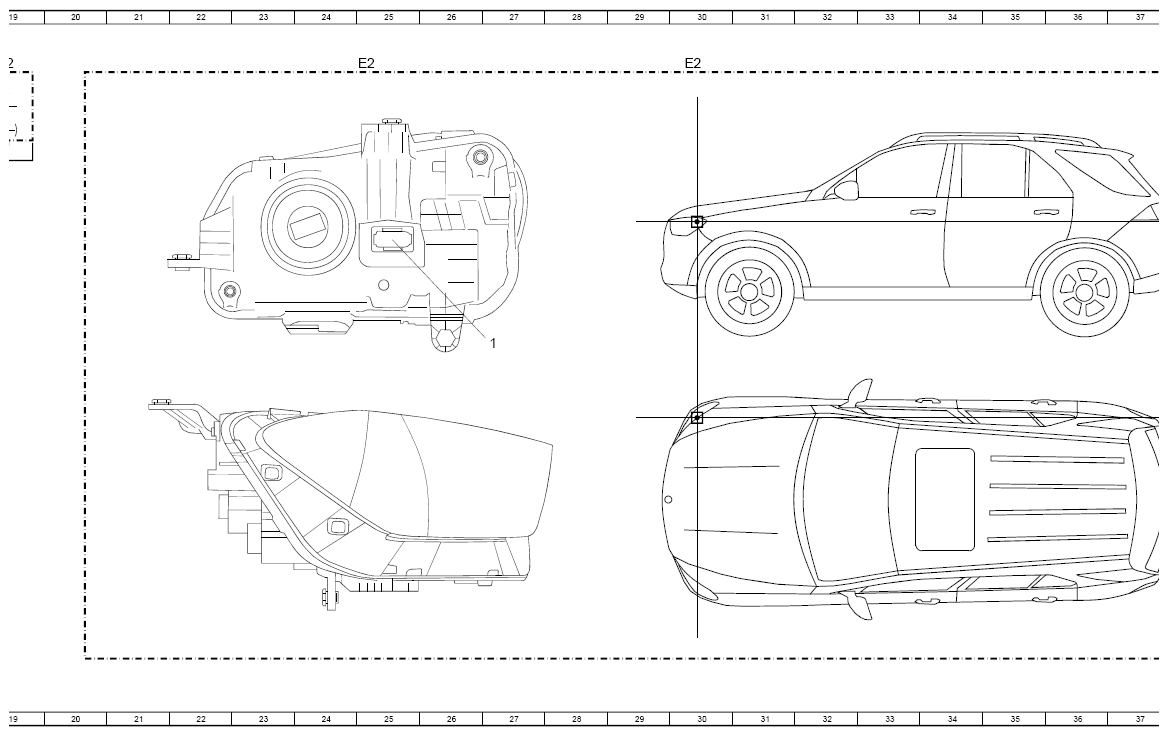

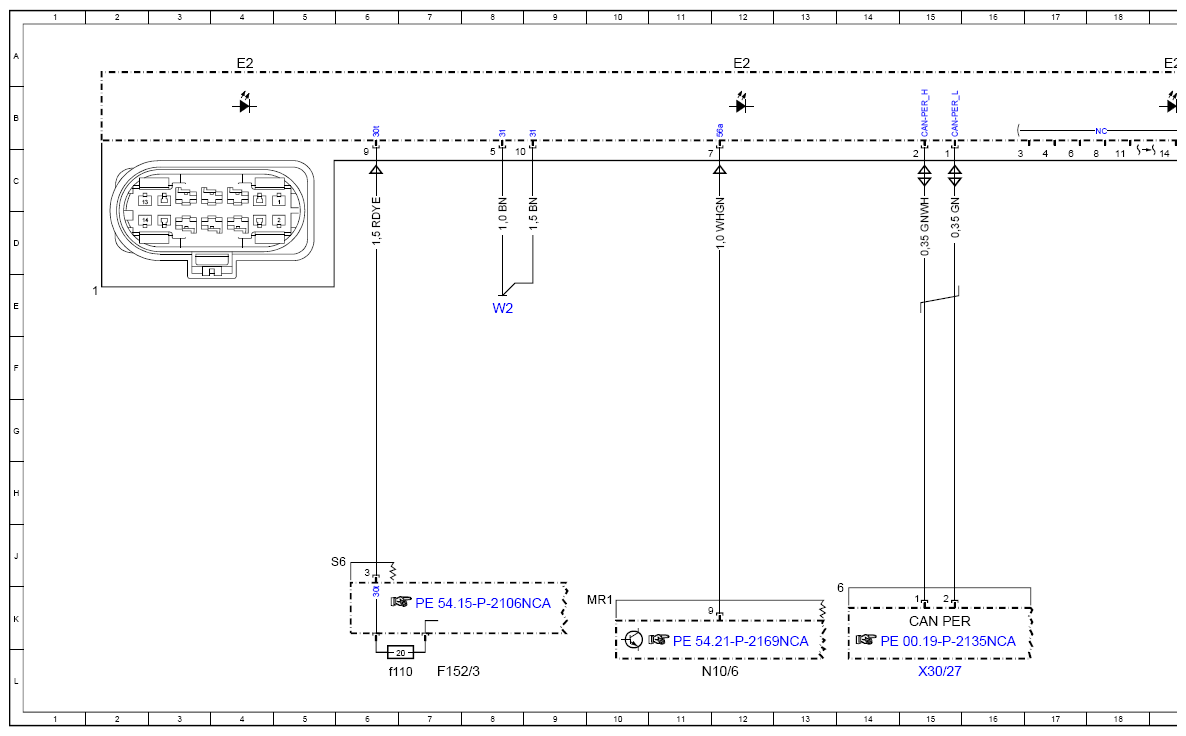

Model 167 with code 620 (Right-hand traffic headlamps)
Partial LED headlamp E2
| Code: | Designation: | Position: |
|---|---|---|

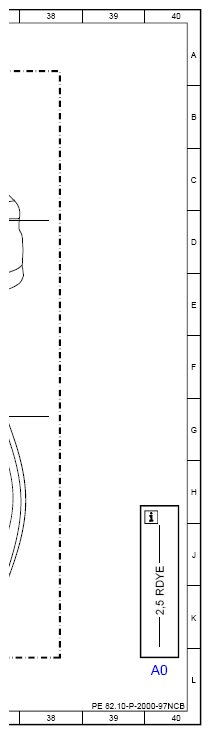

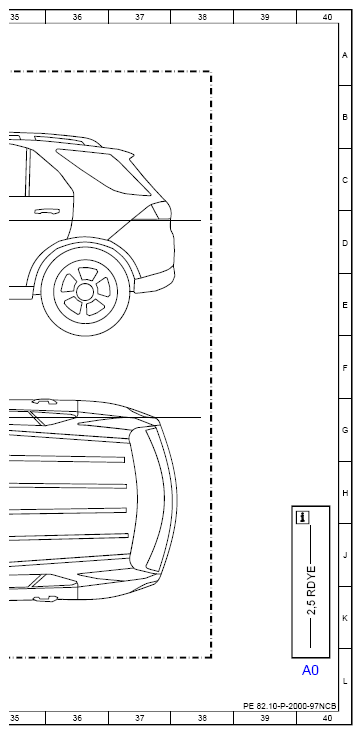

| A0 | Use of wiring diagrams | 40L |
| CAN PER | Peripherals CAN | 15K |
| E2 | Right front lamp unit | 12A |
| E2 | Right front lamp unit | 25A |
| E2 | Right front lamp unit | 30A |
| E2 | Right front lamp unit | 4A |
| E2 | Right front lamp unit | 19A |
| F152/3 | Engine compartment fuse and relay module | 7L |
| F152/3f110 | Fuse 110 | 6L |
| N10/6 | Front central control unit | 12L |
| W2 | Right front ground point at lamp unit | 8E |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 15L |
