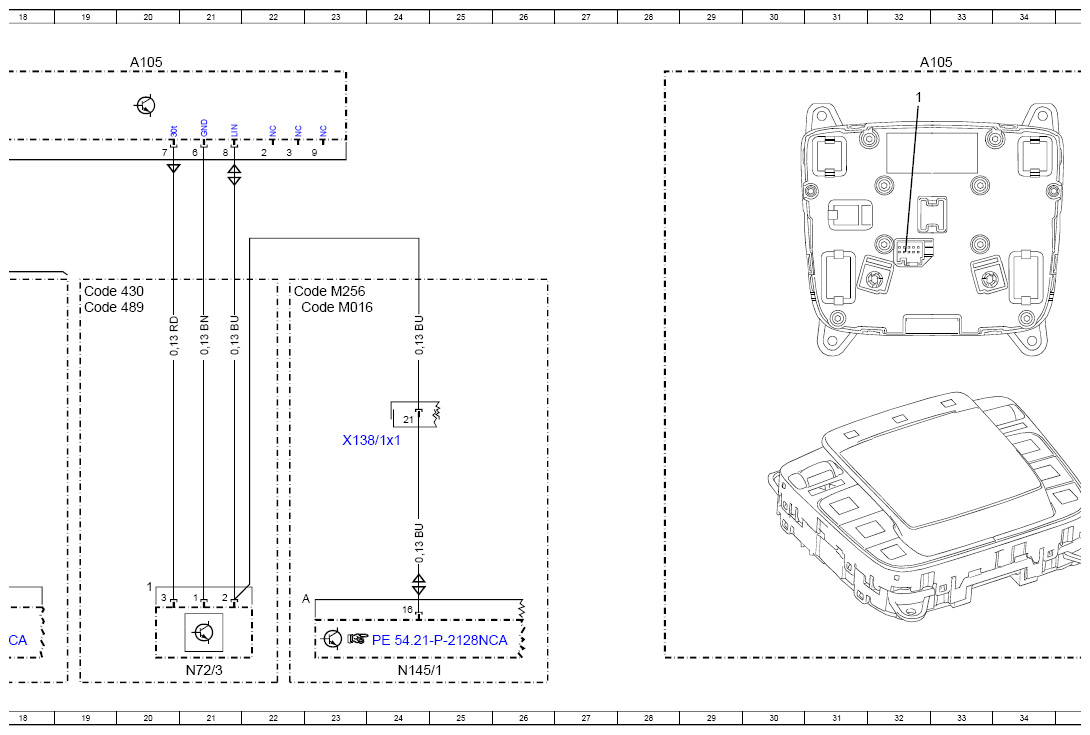

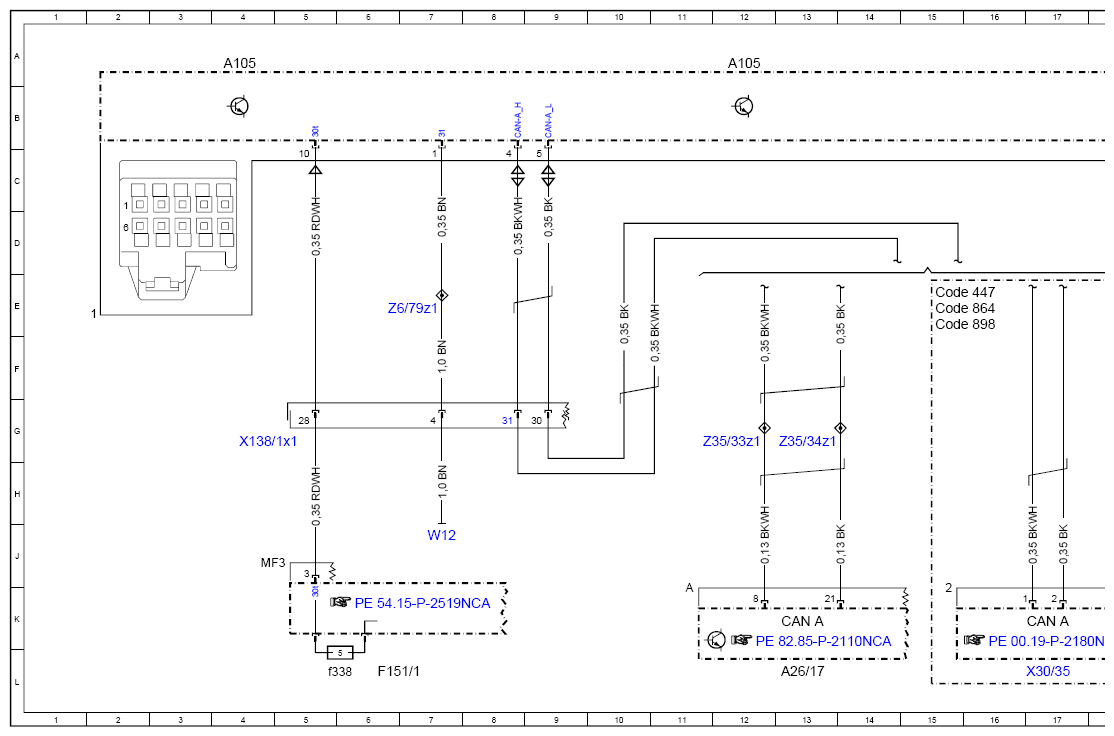

Wiring Diagram For Touchpad - PE82.00-P-2061-97NCA
Model 167 TouchpadA105
| Code: | Designation: | Position: |
|---|---|---|

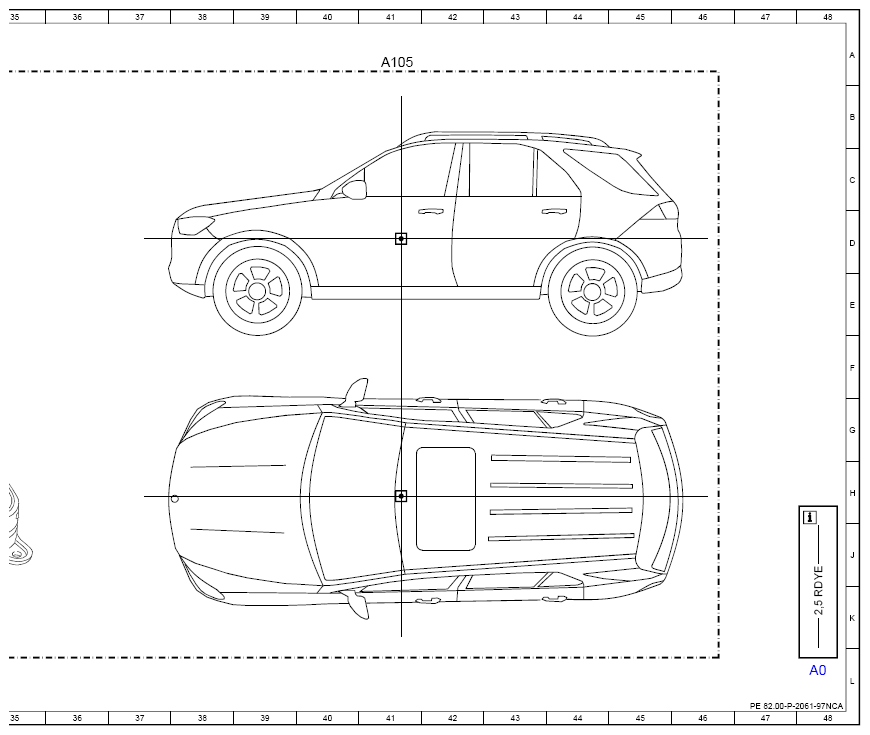

| A0 | Use of wiring diagrams | 48L |
| A105 | Touchpad | 32A |
| A105 | Touchpad | 41A |
| A105 | Touchpad | 4A |
| A105 | Touchpad | 20A |
| A105 | Touchpad | 12A |
| A26/17 | Head unit | 13L |
| CAN A | Telematics CAN | 13K |
| CAN A | Telematics CAN | 17K |
| Code 430 | Offroad package | 19E |
| Code 447 | Touchscreen in rear passenger compartment (rear touchscreen) | 15E |
| Code 489 | AIRMATIC | 19E |
| Code 864 | Rear entertainment system | 15E |
| Code 898 | Wireless charging in rear passenger compartment | 15E |
| Code M016 | Updated high-performance engine | 22E |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 22E |
| F151/1 | 6L | |
| F151/1f338 | Fuse 338 | 5L |
| N145/1 | Drive unit control unit | 24L |
| N72/3 | Off-Road operating panel control unit | 21L |
| W12 | Ground point (center console) | 7J |
| X138/1x1 | Front center console electrical connector | 4G |
| X138/1x1 | Front center console electrical connector | 24G |
| X30/35 | Telematics CAN (CAN A) potential distributor electrical connector | 17L |
| Z35/33z1 | Head unit CAN (high) connector sleeve | 12G |
| Z35/34z1 | Head unit CAN (low) connector sleeve | 13G |
| Z6/79z1 | Front center console circuit 31 connector sleeve | 7E |
