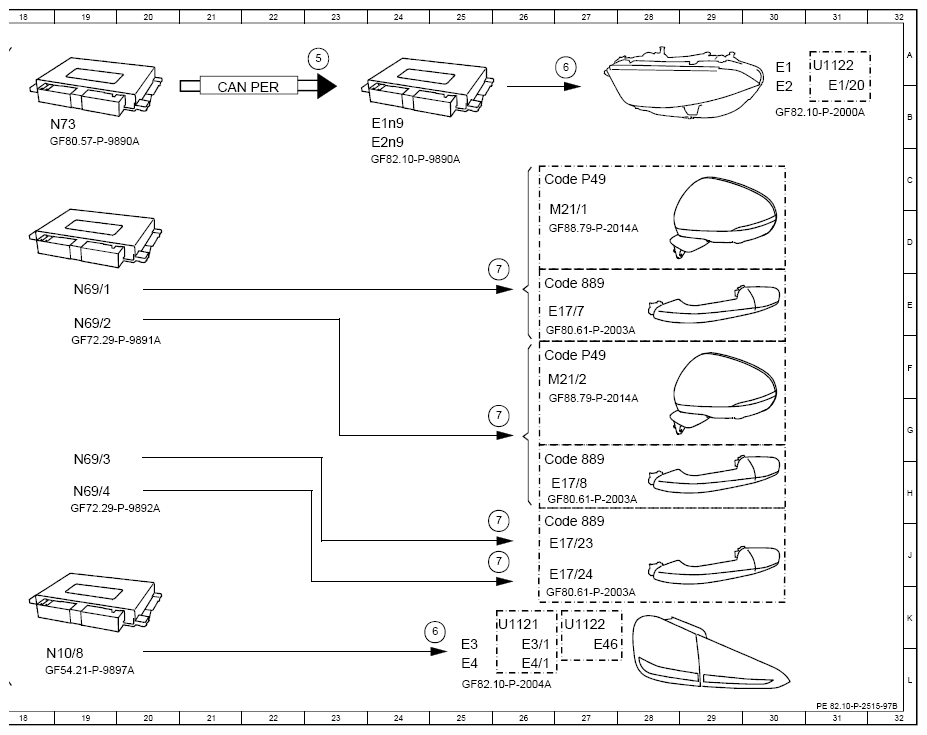

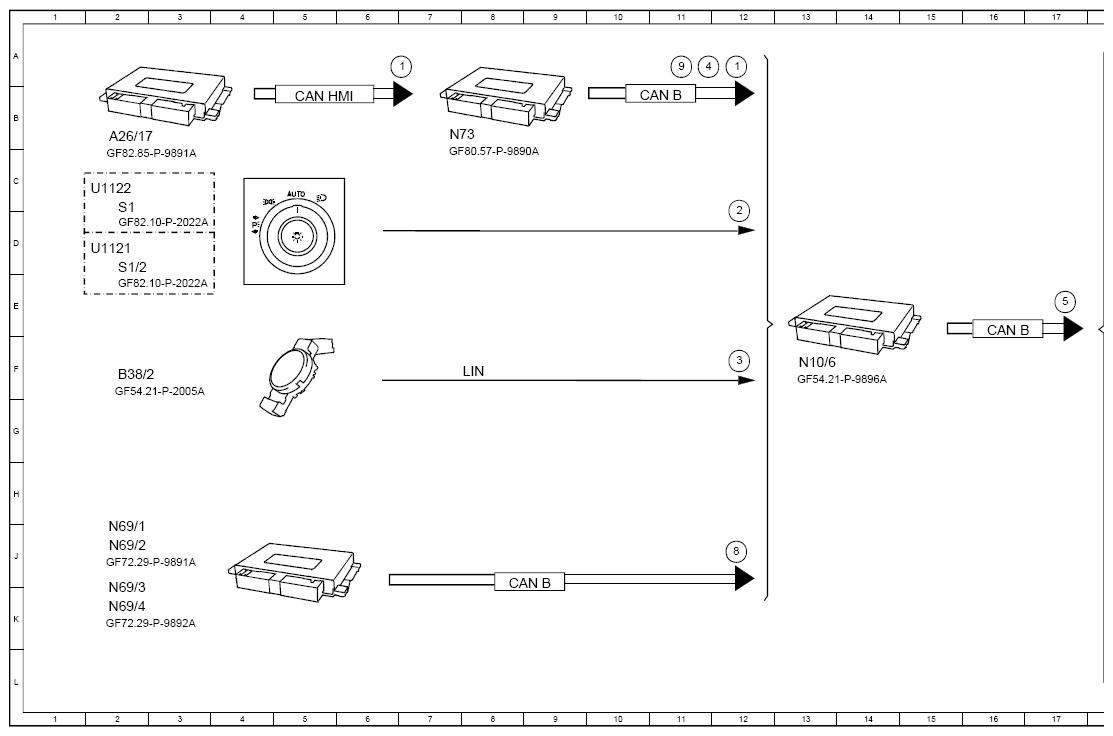

Function Schematic, Illuminate Vehicle Surroundings - PE82.10-P-2515-97B
Model 167
Model 293
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Surround lighting function, status | 12A |
| 1 | Surround lighting function, status | 7A |
| 2 | Exterior lights switch, status | 12C |
| 3 | Dusk setting, signal | 12F |
| 4 | Circuit 15, status | 11A |
| 5 | Ambient illumination, request | 23A |
| 5 | Ambient illumination, request | 17E |
| 6 | Standing lights, actuation | 27A |
| 6 | Standing lights, actuation | 25K |
| 7 | Ambient lamp, actuation | 26J |
| 7 | Ambient lamp, actuation | 26H |
| 7 | Ambient lamp, actuation | 26G |
| 8 | Door rotary tumbler switch, status | 12J |
| 9 | Central locking (CL[ZV]), status | 11A |
| A26/17 | Head unit | 2B |
| B38/2 | Rain/light sensor with additional functions | 2F |
| CAN B | Interior CAN | 11B |
| CAN B | Interior CAN | 8K |
| CAN B | Interior CAN | 16E |
| CAN HMI | User interface CAN | 5B |
| CAN PER | Peripherals CAN | 21B |
| Code 889 | KEYLESS-GO | 26E |
| Code 889 | KEYLESS-GO | 26H |
| Code 889 | KEYLESS-GO | 26J |
| Code P49 | Mirror package | 26C |
| Code P49 | Mirror package | 26F |
| E1 | Left front lamp unit | 30A |
| E1/20 | Center front lamp unit | 31B |
| E17/23 | Left rear door exterior door handle illumination | 27J |
| E17/24 | Right rear door exterior door handle illumination | 27J |
| E17/7 | Left front door exterior door handle illumination | 27E |
| E17/8 | Right front door exterior door handle illumination | 27H |
| E1n9 | Left headlamp control unit | 24B |
| E2 | Right front lamp unit | 30B |
| E2n9 | Right headlamp control unit | 24B |
| E3 | Left rear lamp unit | 25K |
| E3/1 | Inner left rear lamp unit | 26L |
| E4 | Right rear lamp unit | 25L |
| E4/1 | Inner right rear lamp unit | 26L |
| E46 | Trunk lid/liftgate lamp unit | 27L |
| LIN | Local Interconnect Network | 8F |
| M21/1 | Left outside mirror | 27D |
| M21/2 | Right outside mirror | 27F |
| N10/6 | 13F | |
| N10/8 | 19L | |
| N69/1 | Driver door control unit | 2J |
| N69/1 | Driver door control unit | 19E |
| N69/2 | Front passenger door control unit | 19E |
| N69/2 | Front passenger door control unit | 2J |
| N69/3 | Left rear door control unit | 2K |
| N69/3 | Left rear door control unit | 19H |
| N69/4 | Right rear door control unit | 2K |
| N69/4 | Right rear door control unit | 19H |
| N73 | Electronic ignition switch control unit | 19B |
| N73 | Electronic ignition switch control unit | 7B |
| S1 | Exterior lights switch | 2D |
| S1/2 | Exterior lights and electric parking brake switch group | 2D |
| U1121 | Valid for model 167 | 2D |
| U1121 | Valid for model 167 | 26K |
| U1122 | Valid for model 293 | 2C |
| U1122 | Valid for model 293 | 31A |
| U1122 | Valid for model 293 | 27K |
