Wiring Diagram For Head-Up Display - PE54.30-P-2106-97NCA

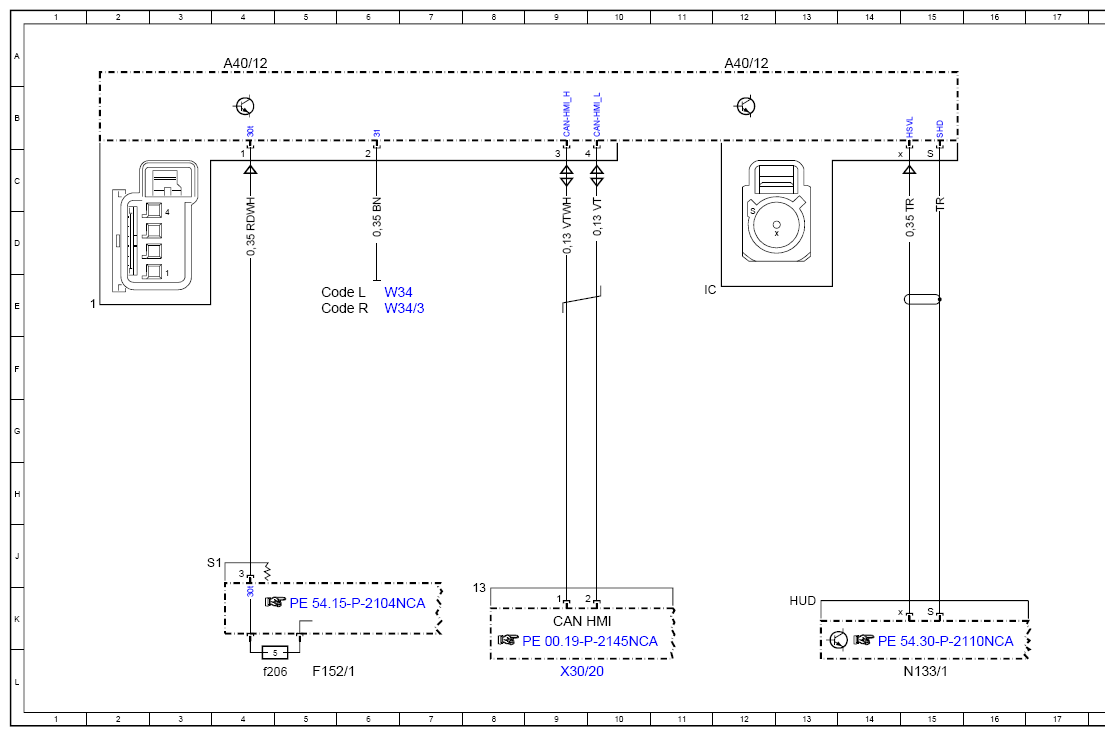

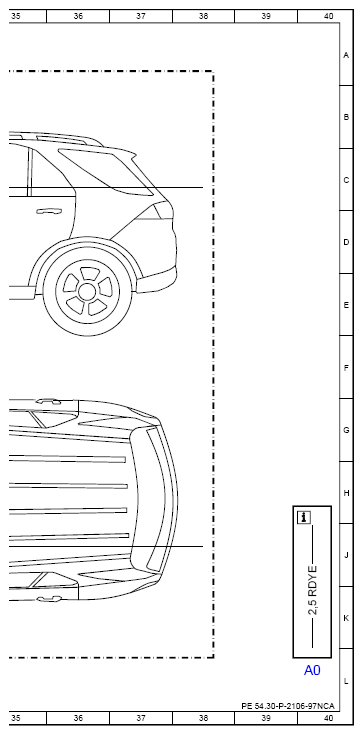

Model 167 with code 463 (Head-up display) A40/12
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 40L |

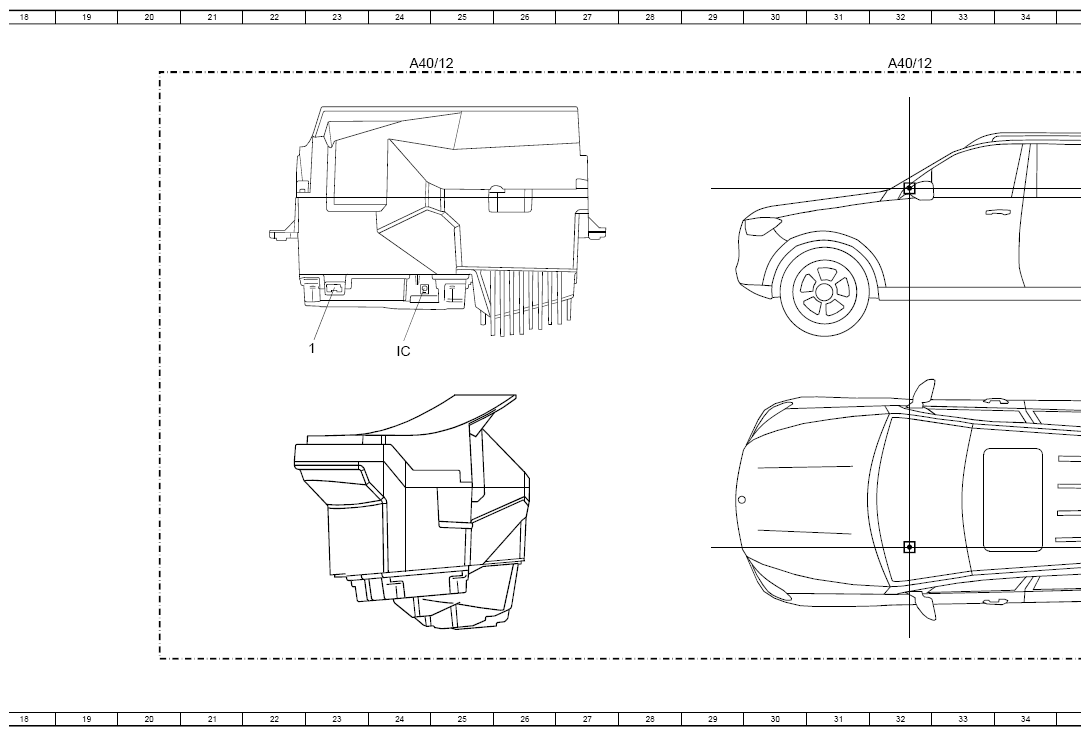

| A40/12 | Head-up display | 12A |
| A40/12 | Head-up display | 4A |
| A40/12 | Head-up display | 24A |
| A40/12 | Head-up display | 32A |
| CAN HMI | User interface CAN | 9K |
| Code L | LEFT-HAND DRIVE | 5E |
| Code R | RIGHT-HAND DRIVE | 5E |
| F152/1 | Driver-side fuse and relay module | 5L |
| F152/1f206 | Fuse 206 | 4L |
| N133/1 | Instrument cluster control unit | 15L |
| W34 | Left footwell ground point | 6E |
| W34/3 | Right footwell ground point | 6E |
| X30/20 | User interface CAN (CAN HMD potential distributor electrical connector | 9L |
