Retrofit Mercedes-Benz Dashcam Wiring Harness - AZ54.71-P-0001-01ME
Model 167.1/9
| Topical note | Notes on the use of paint scraping nuts on ground connections | AH00.19-P-1000-20A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Topical note | Notes on retrofitting electrical/optical lines | AH82.00-P-0000-01A |
| Number | Designation | Model 167 | ||
|---|---|---|---|---|
| BA00.19-P-1033-01M | Left footwell ground point | W34 | Nm | 10 |
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1133-06A | Silicone spray Silicone fluid, 0.4 l art. no. 0893 221 000 | Adolf Wurth GmbH & Co. KG Reinhold-Wurth-Str. 12-17 74653 Kunzelsau-Gaisbach Germany Tel. +49 7940 15-0 Fax +49 7940 15-1000 http://www.wuerth.de |
| BR00.45-Z-1144-02A | Adhesive tape roll, non-woven Tesa tape, 50 meters, 50 mm wide | A 008 989 50 85 09 |

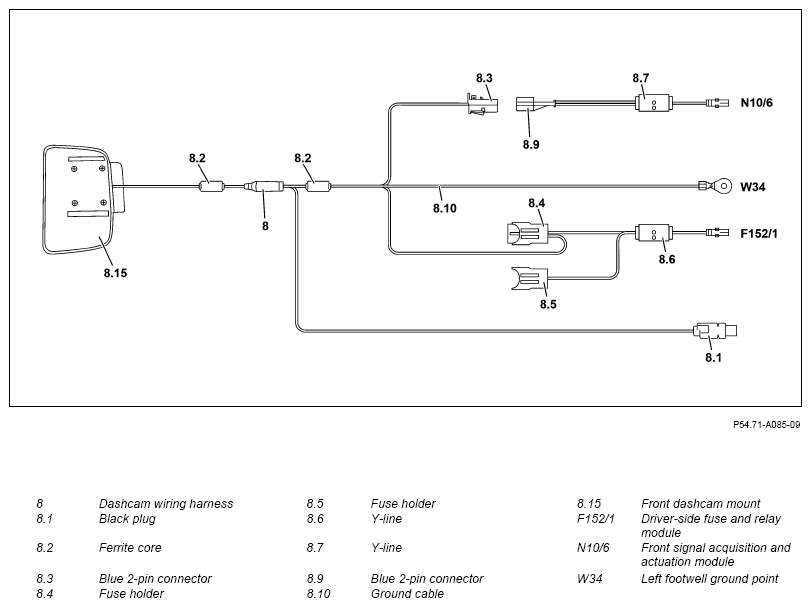

Connection scheme

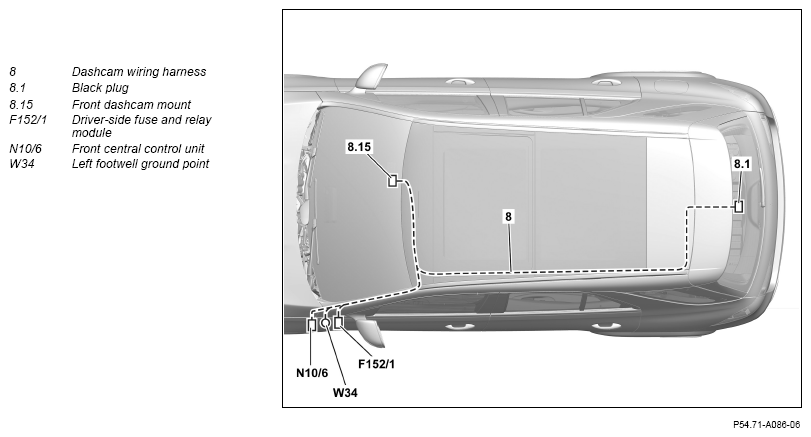

Routing diagram "Retail"

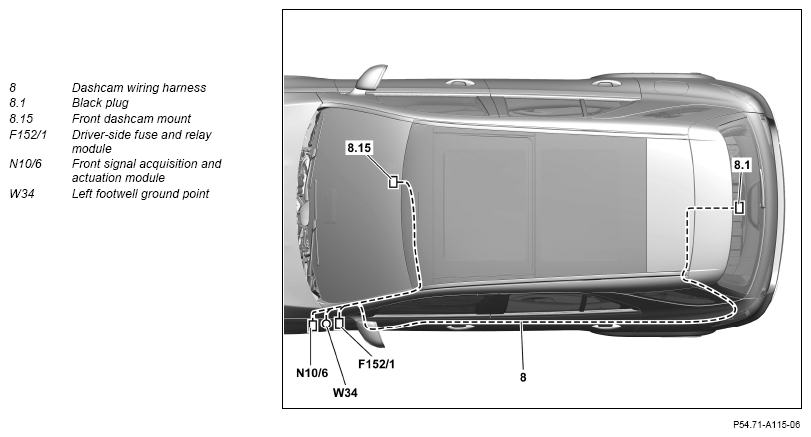

Routing diagram "Vehicle Preparation Center"
The following work procedure is described using the routing diagram "Retail".
- Route dashcam wiring harness (8) from front dashcam mount under roof lining to the left to the A-pillar.
- Fasten ferrite cores of dashcam wiring harness (8) to overhead control panel mount (36) using cable ties (arrows A).
- Route the three individual lines of the dashcam wiring harness (8) above the window airbag (30) up to the footwell.
Route the three individual lines of the dashcam wiring harness (8) behind the crossmember for the instrument panel.
- Route ground line (8.10) of dashcam wiring harness to left footwell ground point (W34) and connect.
- Remove violet coupling (MR2) from front central control unit (N10/6).
- Remove gray 21-pin connector insert from violet coupling (MR2).
- Remove line (20) from contact cavity "29" of gray 21-pin coupling insert (19).
or the supplementary passenger car wiring harness repair kit
- Install line (20) in free contact cavity of blue 2-pin coupling (8.3) of dashcam wiring harness (8).
- Lock blue 2-pin coupling (8.3).
- Install line (8.8) of Y-line (8.7) into contact cavity "29" of gray 21-pin coupling insert (19).
- Install gray 21-pin coupling insert into violet connector (MR2).
- Mount violet coupling (MR2) onto front central control unit (N10/6).
- Connect blue 2-pin coupling (8.3) of dashcam wiring harness (8) to blue 2-pin plug (8.9) of Y-line (8.7).
- Remove electrical fuse (29) from slot 213 (arrow B) of driver fuse and relay module (F152/1).
The fuse rating of the electrical fuse (29) is 20 A.
- Remove lock (24) from driver fuse and relay module (F152/1).
- Remove red/black line (25) from contact cavity "8" (arrow C) of driver fuse and relay module (F152/1).
- Install red line (8.12) of Y-line (8.6) into contact cavity "8" (arrow C) of driver fuse and relay module (F152/1).
- Install removed red/black line (25) into free contact cavity of fuse holder (8.4) of Y-line (8.6).
- Attach lock (24) to driver fuse and relay module.
- Install lock (8.13) into fuse holder (8.4) (arrow D).
- Install electrical fuse (29) into fuse holder (8.4).
- Plug both fuse holders (8.4, 8.5) of dashcam wiring harness (8) together.
- Install the electrical fuse (55) included in the parts kit into slot 213 (arrow B) of the driver fuse and relay module (F152/1).
- Route branch-off line for rear dashcam of dashcam wiring harness (8) on roof lining towards rear up to center of roof lining.
- Strap down excess lengths of dashcam wiring harness (8) in area of A-pillar.

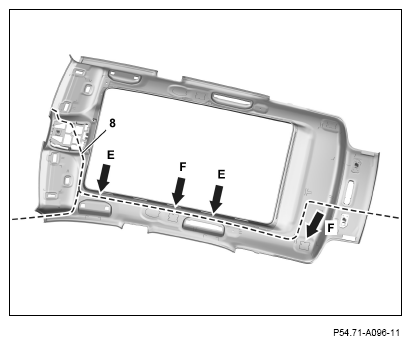

- Fasten dashcam wiring harness (8) on roof lining using felt adhesive tape.
Shown with removed roof lining

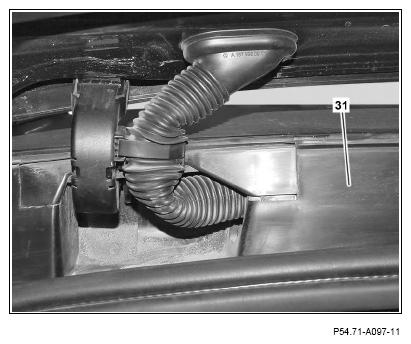

- Remove rear roof frame cover (31).

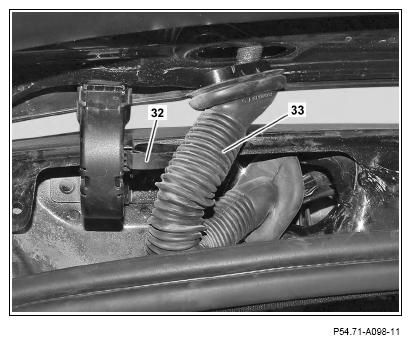

- Open bracket (32) on left side of vehicle and remove cable duct (33).
- Remove cable duct (33) from liftgate and from rear roof frame.

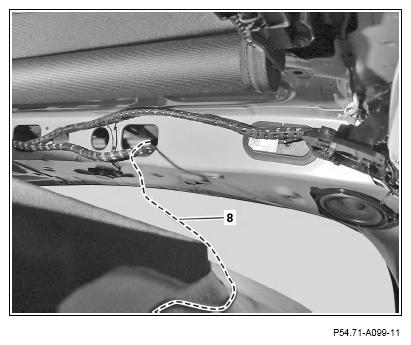

- Route dashcam wiring harness (8) through opening in rear roof frame up to opening for cable duct at rear roof frame.
Shown with removed roof lining
- Route dashcam wiring harness (8) through cable duct (33) into liftgate.
- Route dashcam wiring harness (8) by dimension (a) beyond center of liftgate (line b) towards right.
a = 150 mm
Use a pull-through device. Silicone spray must be applied to the cable duct (33) on the inside before routing.

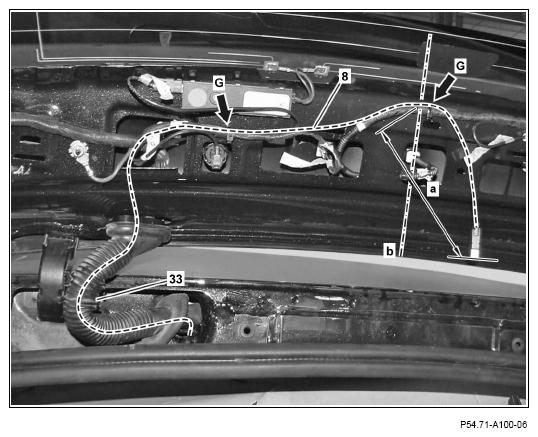

- Fix dashcam wiring harness (8) in place using cable ties (arrows G).
- Attach cable duct (33).
