Connector Separation Point Wiring Diagram - PE54.18-P-2300-97NCG
Model 167 Connector X174/3x1, X240/2x1, X242/3x1, X242/4x1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 96L |
| A105/3 | Touchscreen | 23A |
| A105/3 | Touchscreen | 48L |
| B92/12 | Short and long-range radar sensor | 5L |
| Code 224 | Design rear individual seats | 29J |
| Code 224 | Design rear individual seats | 29E |
| Code 224 | Design rear individual seats | 66J |
| Code 224 | Design rear individual seats | 64J |
| Code 224 | Design rear individual seats | 88J |
| Code 224 | Design rear individual seats | 84J |
| Code 224 | Design rear individual seats | 66E |
| Code 224 | Design rear individual seats | 64E |
| Code 224 | Design rear individual seats | 34E |
| Code 224 | Design rear individual seats | 34J |
| Code 226 | 7-seater with 3rd seat row | 29J |
| Code 226 | 7-seater with 3rd seat row | 29E |
| Code 226 | 7-seater with 3rd seat row | 67J |
| Code 226 | 7-seater with 3rd seat row | 63J |
| Code 226 | 7-seater with 3rd seat row | 88J |
| Code 226 | 7-seater with 3rd seat row | 84J |
| Code 226 | 7-seater with 3rd seat row | 67E |
| Code 226 | 7-seater with 3rd seat row | 63E |
| Code 233 | DISTRONIC PLUS | 2K |
| Code 447 | Touchscreen in rear passenger compartment (rear touchscreen) | 21J |
| Code 447 | Touchscreen in rear passenger compartment (rear touchscreen) | 21E |
| Code 447 | Touchscreen in rear passenger compartment (rear touchscreen) | 47J |
| Code 447 | Touchscreen in rear passenger compartment (rear touchscreen) | 47E |
| Code 489 | AIRMATIC | 93J |
| Code 489 | AIRMATIC | 93E |
| Code 489 | AIRMATIC | 4J |
| Code 489 | AIRMATIC | 6J |
| Code 489 | AIRMATIC | 4E |
| Code 489 | AIRMATIC | 6E |
| Code 567 | Vario rear bench seat | 26J |
| Code 567 | Vario rear bench seat | 26E |
| Code 567 | Vario rear bench seat | 84J |
| Code 72B | Additional USB interfaces | 61J |
| Code 72B | Additional USB interfaces | 78J |
| Code 72B | Additional USB interfaces | 61E |
| Code 802 | YoM 21/1 | 28E |
| Code 802 | YoM 21/1 | 28J |
| Code 802 | YoM 21/1 | 26J |
| Code 802 | YoM 21/1 | 26E |
| Code 810 | Sound system | 55J |
| Code 810 | Sound system | 76J |
| Code 810 | Sound system | 55E |
| Code 811 | Advanced sound system | 51J |
| Code 811 | Advanced sound system | 72J |
| Code 811 | Advanced sound system | 51E |
| Code 845 | Electric folding 3rd seat row | 61J |
| Code 845 | Electric folding 3rd seat row | 78J |
| Code 845 | Electric folding 3rd seat row | 61E |
| Code 876 | Interior lights package | 44J |
| Code 876 | Interior lights package | 44E |
| Code 886 | Seat heating for 3rd seat row | 57J |
| Code 886 | Seat heating for 3rd seat row | 80J |
| Code 886 | Seat heating for 3rd seat row | 57E |
| Code 898 | Wireless charging in rear passenger compartment | 39J |
| Code 898 | Wireless charging in rear passenger compartment | 39E |
| Code 9U7 | Aerodynamics measure package control code | 11J |
| Code FV | LONG SEDAN | 31J |
| Code FV | LONG SEDAN | 31E |
| Code FX | Special version | 52J |
| Code FX | Special version | 55J |
| Code FX | Special version | 72J |
| Code FX | Special version | 76J |
| Code FX | Special version | 52E |
| Code FX | Special version | 55E |
| Code M036 | Maybach version | 34E |
| Code M036 | Maybach version | 34J |
| Code M036 | Maybach version | 44J |
| Code M036 | Maybach version | 44E |
| Code M036 | Maybach version | 47E |
| Code M036 | Maybach version | 47J |
| Code P08 | Rear passenger compartment Comfort Package | 26E |
| Code P08 | Rear passenger compartment Comfort Package | 26J |
| Code P08 | Rear passenger compartment Comfort Package | 29E |
| Code P08 | Rear passenger compartment Comfort Package | 29J |
| Code P08 | Rear passenger compartment Comfort Package | 37J |
| Code P08 | Rear passenger compartment Comfort Package | 37E |
| Code P08 | Rear passenger compartment Comfort Package | 31E |
| Code P08 | Rear passenger compartment Comfort Package | 31J |
| E36/7 | Rear armrest folding compartment illumination | 32L |
| E36/7 | Rear armrest folding compartment illumination | 35L |
| E43/104 | Left rear Audio/COMAND display ambient lighting | 45L |
| E43/105 | Right rear Audio/COMAND display ambient lighting | 44L |
| E43/94 | Left rear seat outer left ambient lighting | 44A |
| F151/1 | Passenger-side A-pillar fuse box | 3A |
| F152/2 | Rear fuse and relay module | 21L |
| F152/2 | Rear fuse and relay module | 40L |
| F152/2 | Rear fuse and relay module | 58A |
| F152/2 | Rear fuse and relay module | 81A |
| F152/2 | Rear fuse and relay module | 92A |
| F152/2 | Rear fuse and relay module | 90A |
| F152/2 | Rear fuse and relay module | 47A |
| F152/2 | Rear fuse and relay module | 68A |
| H21/33 | Left rear surround sound system mid-range speaker (Premium) | 56L |
| H21/34 | Right rear surround sound system mid-range speaker (Premium) | 76L |
| H22/31 | Left rear surround sound system tweeter (High End) | 53L |
| H22/32 | Right rear surround sound system tweeter (High End) | 74L |
| H22/33 | Left rear surround sound system mid-range speaker (High End) | 52L |
| H22/34 | Right rear surround sound system mid-range speaker (High End) | 73L |
| M2/38 | Upper radiator trim flap actuator motor | 11L |
| M2/39 | Lower radiator trim flap actuator motor | 14L |
| N10/6 | Front central control unit | 19A |
| N10/6 | Front central control unit | 13A |
| N10/6 | Front central control unit | 16A |
| N10/8 | Rear central control unit | 2A |
| N123/10 | Rear passenger compartment mobile phone cradle control unit | 41A |
| N127 | Drivetrain control unit | 15A |
| N25/16 | 3rd seat row seat heating control unit | 57A |
| N25/16 | 3rd seat row seat heating control unit | 81A |
| N32/5 | Left rear seat control unit | 26A |
| N32/5 | Left rear seat control unit | 29A |
| N32/5 | Left rear seat control unit | 66A |
| N32/6 | Right rear seat control unit | 86A |
| N40/3 | Sound system amplifier control unit | 52A |
| N40/3 | Sound system amplifier control unit | 56A |
| N40/3 | Sound system amplifier control unit | 73A |
| N40/3 | Sound system amplifier control unit | 76A |
| N51/8 | Suspension and damping system control unit | 93A |
| N51/8 | Suspension and damping system control unit | 5A |
| N51/8 | Suspension and damping system control unit | 6A |
| R61 | Radome heater | 9L |
| S132/15 | Left 2nd seat row armrest release switch | 27L |
| S132/15 | Left 2nd seat row armrest release switch | 30L |

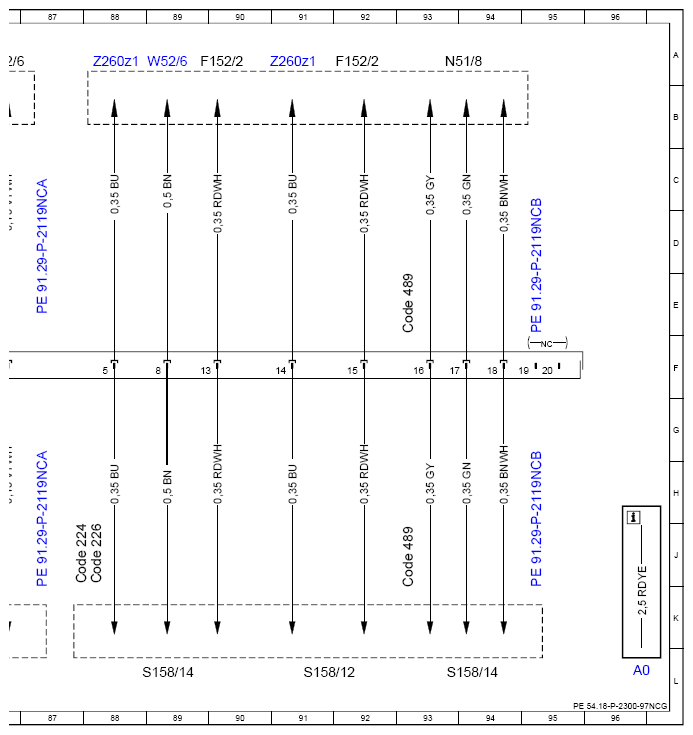

| S158/12 | Right 2nd seat row seats switch group | 91L |
| S158/13 | Seats switch group (left load compartment) | 67L |
| S158/14 | Seats switch group (right load compartment) | 89L |
| S158/14 | Seats switch group (right load compartment) | 94L |
| S162/3 | Left 3rd seat row armrest easy entry and exit feature button | 65L |
| S162/4 | Right 3rd seat row armrest easy entry and exit feature button | 85L |
| S51/5 | Left 3rd seat row seat heating switch | 59L |
| S51/6 | Right 3rd seat row seat heating switch | 82L |
| S62/42 | Right engine hood contact switch | 17L |
| S62/43 | Left engine hood contact switch | 19L |
| W16/3 | Left major assembly compartment ground point | 7A |
| W16/3 | Left major assembly compartment ground point | 10A |
| W16/3 | Left major assembly compartment ground point | 18A |
| W17 | Right rear seat ground point | 78A |
| W17/1 | Left rear seat ground point | 61A |
| W17/1 | Left rear seat ground point | 59A |
| W17/1 | Left rear seat ground point | 67A |
| W52/5 | Left center longitudinal member ground point | 22L |
| W52/5 | Left center longitudinal member ground point | 39L |
| W52/5 | Left center longitudinal member ground point | 32A |
| W52/5 | Left center longitudinal member ground point | 38A |
| W52/5 | Left center longitudinal member ground point | 34A |
| W52/6 | Right center longitudinal member ground point | 82A |
| W52/6 | Right center longitudinal member ground point | 89A |

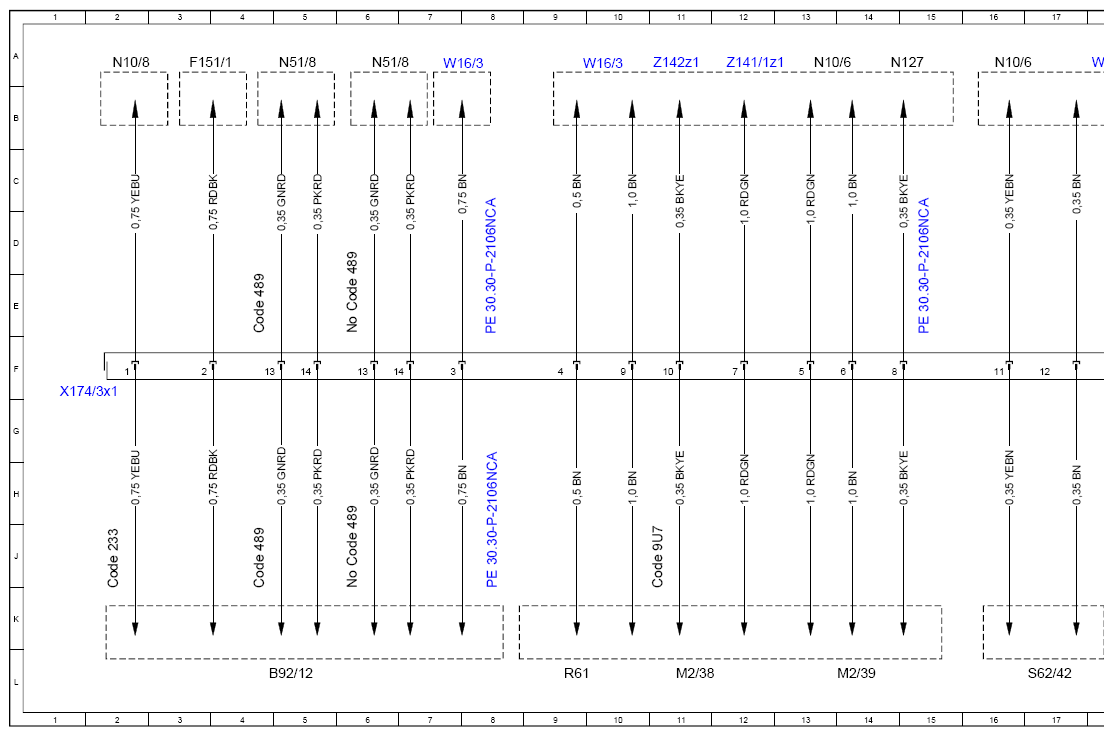

| X174/3x1 | Vehicle interior/front zone electrical connector | 2F |

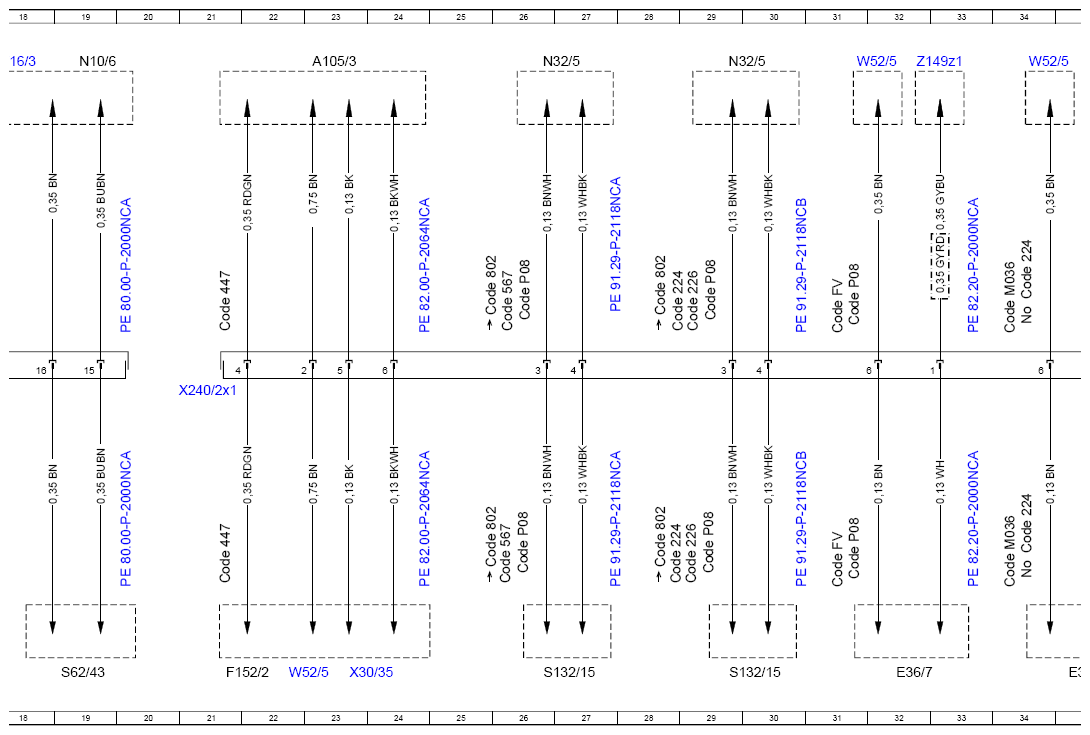

| X240/2x1 | 2nd seat row armrest electrical connector | 21F |

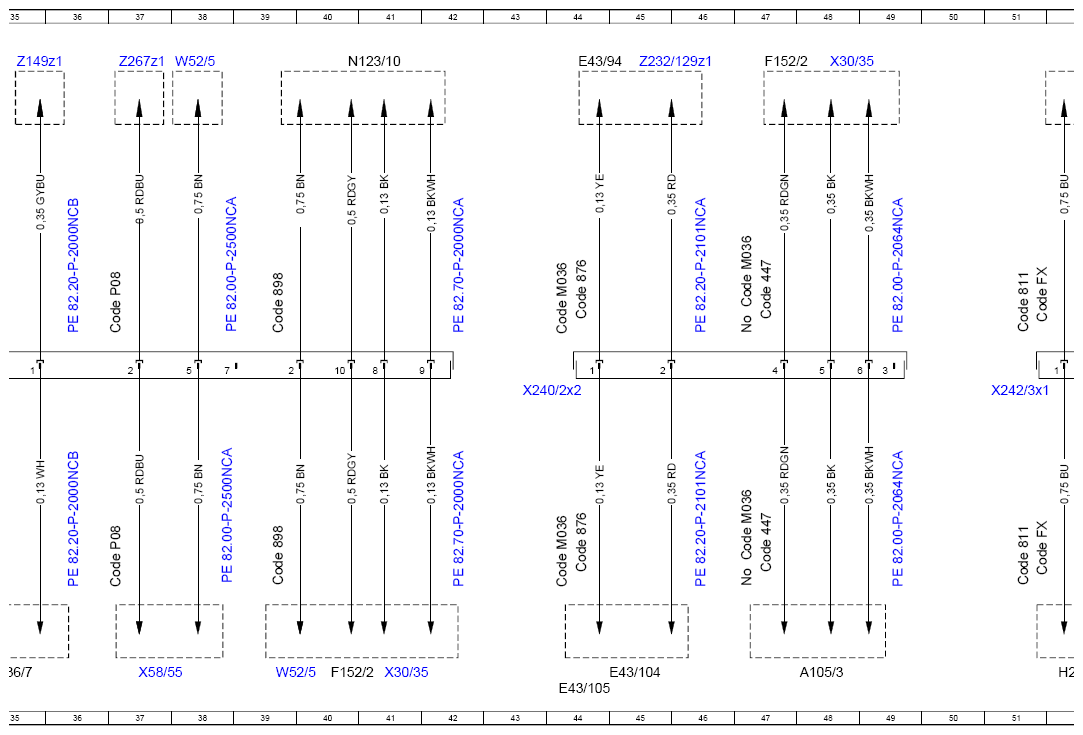

| X240/2x2 | 2nd seat row armrest electrical connector | 44F |

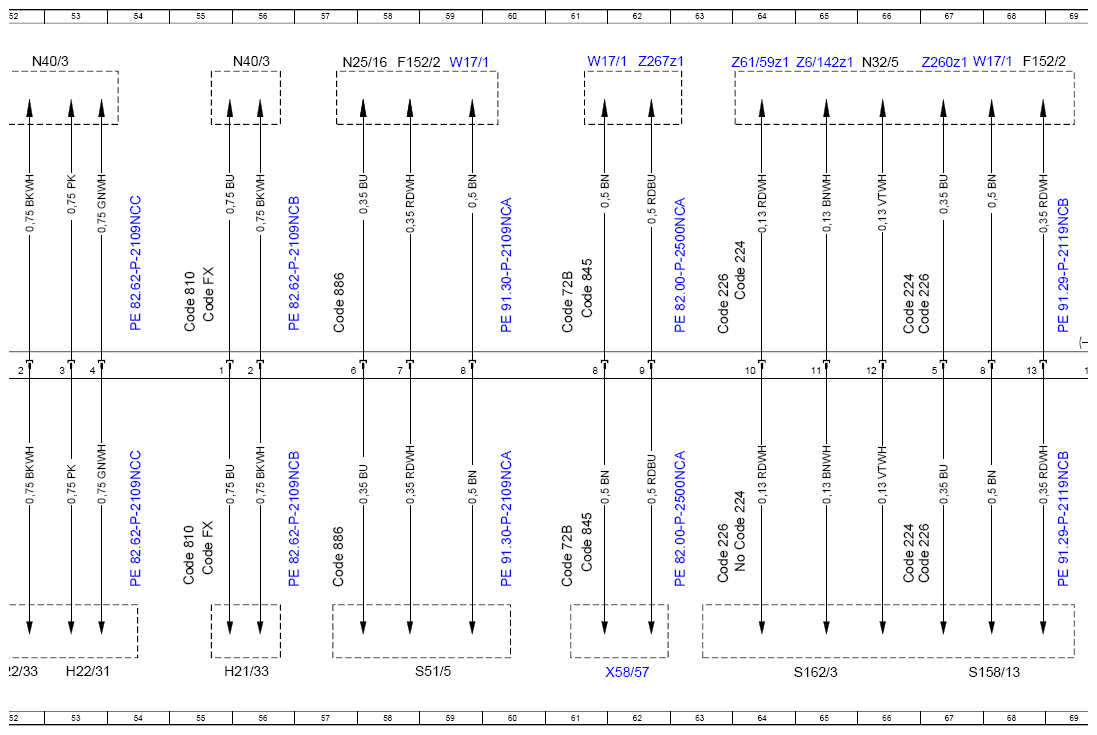

| X242/3x1 | Left load compartment electrical connector | 51F |

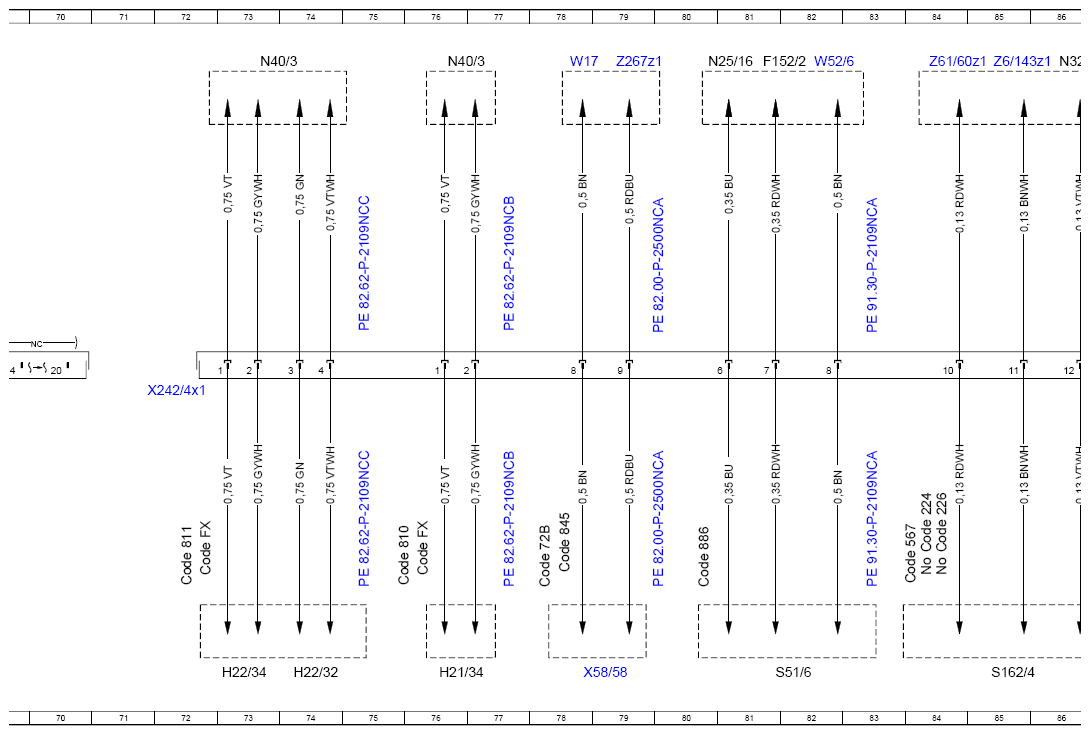

| X242/4x1 | Right load compartment electrical connector | 72F |
| X30/35 | Telematics CAN (CAN A) potential distributor electrical connector | 23L |
| X30/35 | Telematics CAN (CAN A) potential distributor electrical connector | 41L |
| X30/35 | Telematics CAN (CAN A) potential distributor electrical connector | 48A |
| X58/55 | 2nd seat row center USB port | 37L |
| X58/57 | 3rd seat row left USB port | 62L |
| X58/58 | 3rd seat row right USB port | 79L |
| Z141/1z1 | Circuit 87 C1 connector sleeve | 12A |
| Z142z1 | LIN C3 connector sleeve | 11A |
| Z149z1 | Interior wiring harness switch and controls illumination end sleeve | 32A |
| Z149z1 | Interior wiring harness switch and controls illumination end sleeve | 35A |
| Z232/129z1 | Voltage supply connector sleeve | 45A |
| Z260z1 | Rear seats LIN bus end sleeve | 67A |
| Z260z1 | Rear seats LIN bus end sleeve | 88A |
| Z260z1 | Rear seats LIN bus end sleeve | 91A |
| Z267z1 | Circuit 30t power supply connector sleeve | 37A |
| Z267z1 | Circuit 30t power supply connector sleeve | 62A |
| Z267z1 | Circuit 30t power supply connector sleeve | 79A |
| Z6/142z1 | Left 2nd seat row switch connector sleeve | 65A |
| Z6/143z1 | Right 2nd seat row switch end sleeve | 85A |
| Z61/59z1 | Left folding seat backrest switch lighting end sleeve | 64A |
| Z61/60z1 | Right folding seat backrest switch lighting end sleeve | 84A |
