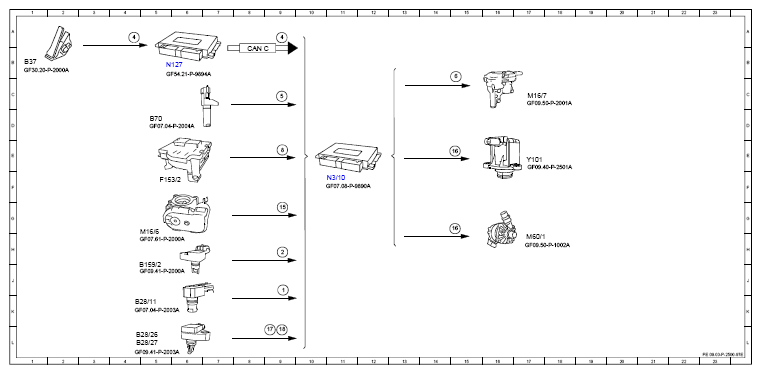

Function Schematic For Charging - PE09.00-P-2500-97E
Engine 256 in model 167
Engine 256 in model 213, 238 as of model year 2021
Engine 264 in model 213, 238, 257 as of model year 2021
| Code: | Designation: | Position |
|---|---|---|
| 1 | Pressure sensor downstream of air filter, signal | 16V |
| 15 | Throttle valve position, signal | 16S |
| 16 | Bypass air switchover valve, actuation | 21R |
| 17 | Pressure and temperature sensor upstream of throttle valve, signal | 9L |
| 18 | Pressure and temperature sensor downstream of throttle valve, signal | 9L |
| 2 | Boost pressure, signal | 16U |
| 4 | Accelerator pedal sensor, signal | 11N |
| 4 | Accelerator pedal sensor, signal | 16N |
| 5 | Engine speed, signal | 16P |
| 6 | Boost pressure control flap actuator, actuation | 220 |
| 8 | Circuit 87, status | 16Q |
| B159/2 | Charge air pressure/temperature sensor | 12U |
| B28/11 | Pressure sensor downstream of air filter | 11V |
| B28/26 | Pressure and temperature sensor upstream of throttle valve | 11W |
| B28/27 | Pressure and temperature sensor downstream of throttle valve | 11X |
| B37 | Accelerator pedal sensor | 80 |
| B70 | Crankshaft Hall sensor | 12Q |
| CAN C | Engine CAN | 15N |
| F153/2 | Fuse and relay module | 12R |
| M16/6 | Throttle valve actuator | 12T |
| M16/7 | Boost pressure control flap actuator | 24P |
| M60/1 | Electric additional compressor | 24T |
| N127 | Drivetrain control unit | 120 |
| N3/10 | Engine management control unit | 18R |
| Y101 | Divert air switchover valve | 24R |
