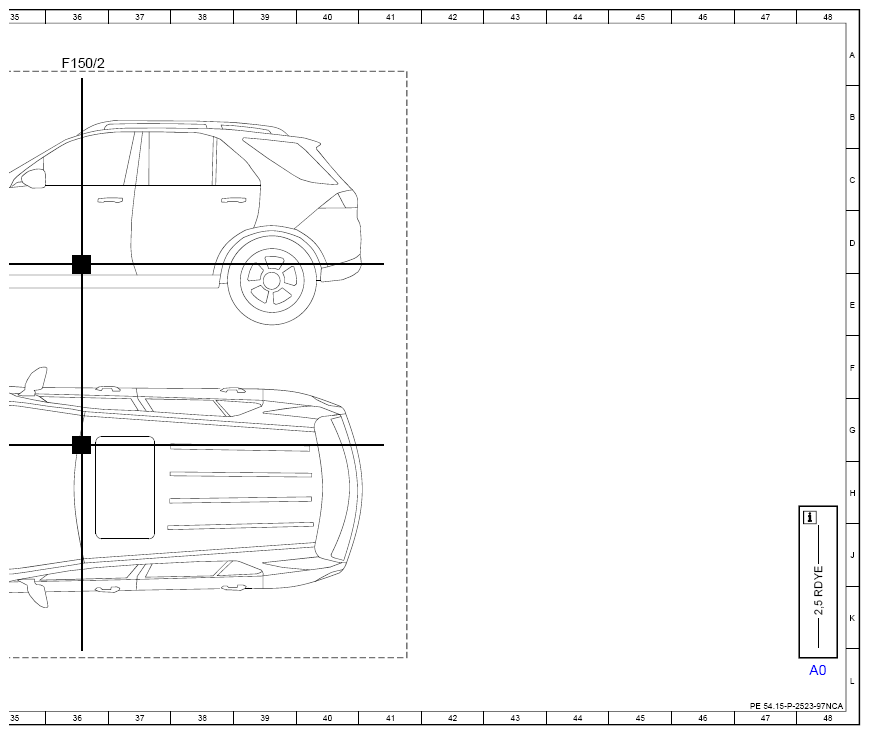

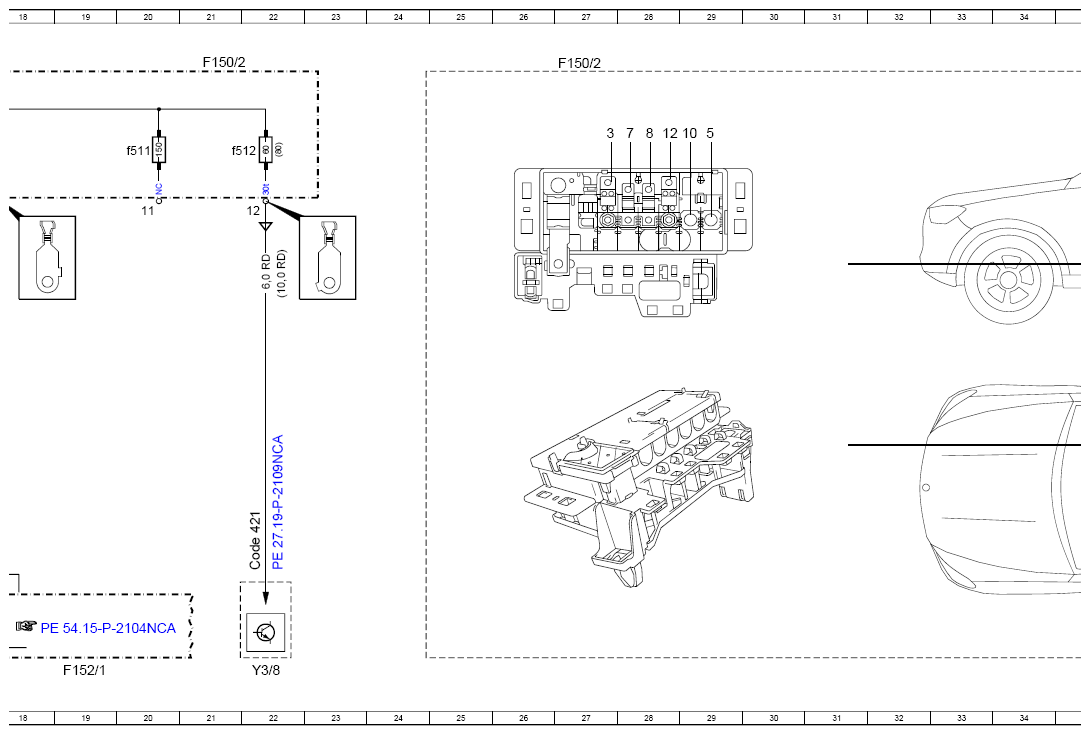

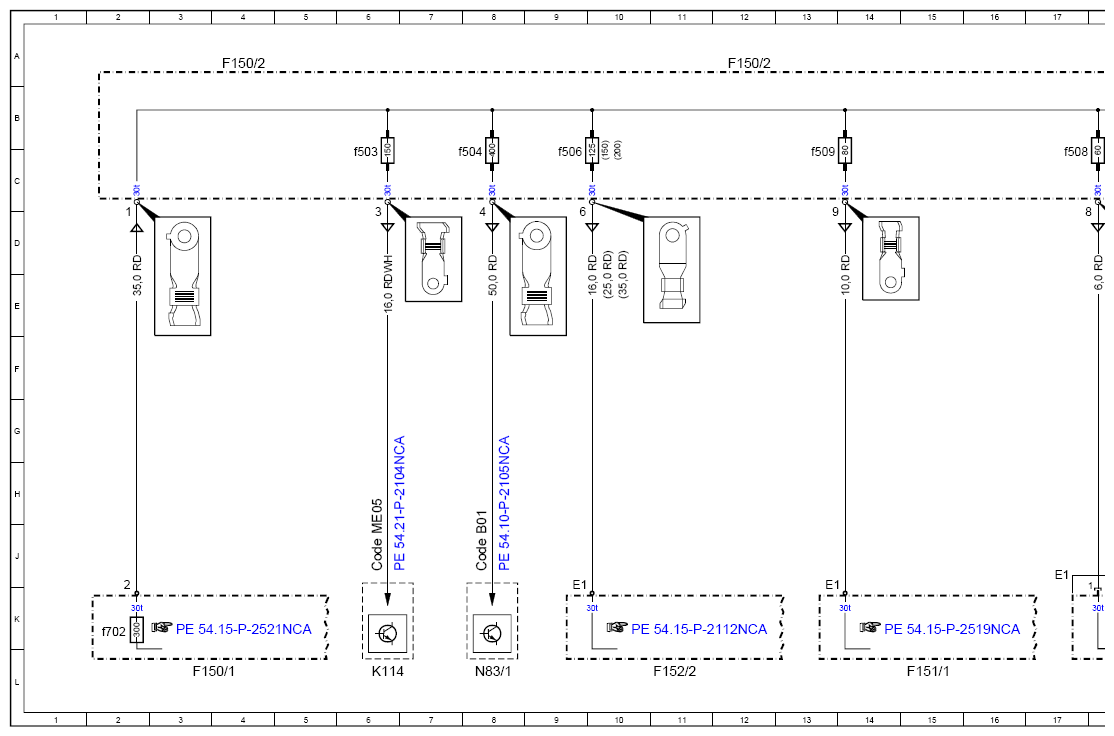

Wiring Diagram For Vehicle Interior Prefuse Box - PE54.15-P-2523-97NCA
Model 167
Prefuse box F150/2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 48L |
| Code 421 | 9G-TRONIC | 22J |
| Code B01 | 48V technology | 8J |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 6J |
| F150/1 | Starter battery prefuse box | 3L |
| F150/1f702 | Electrical fuse 702 | 2K |
| F150/2 | Vehicle interior prefuse box | 4A |
| F150/2 | Vehicle interior prefuse box | 12A |
| F150/2 | Vehicle interior prefuse box | 21A |
| F150/2 | Vehicle interior prefuse box | 27A |
| F150/2 | Vehicle interior prefuse box | 36A |
| F150/2f503 | Electrical fuse 503 | 6C |
| F150/2f504 | Electrical fuse 504 | 8C |
| F150/2f506 | Electrical fuse 506 | 9C |
| F150/2f508 | Electrical fuse 508 | 17C |
| F150/2f509 | Electrical fuse 509 | 13C |
| F150/2f511 | Electrical fuse 511 | 20C |
| F150/2f512 | Electrical fuse 512 | 22C |
| F151/1 | 15L | |
| F152/1 | Driver-side fuse and relay module | 19L |
| F152/2 | Rear fuse and relay module | 11L |
| K114 | ECO start/stop function additional battery relay | 6L |
| N83/1 | DC/DC converter control unit | 8L |
| Y3/8 | Fully integrated transmission control controller unit | 22L |
