Rear Roof Panel Preparing For Installation - Ar65.10-P-5760-02MEX

Model 167.9

with code 413 (Automatic panoramic sliding sunroof)

The higher-level service document as well as the safety information in the service document must be observed.

Courtesy of MERCEDES-BENZ USA

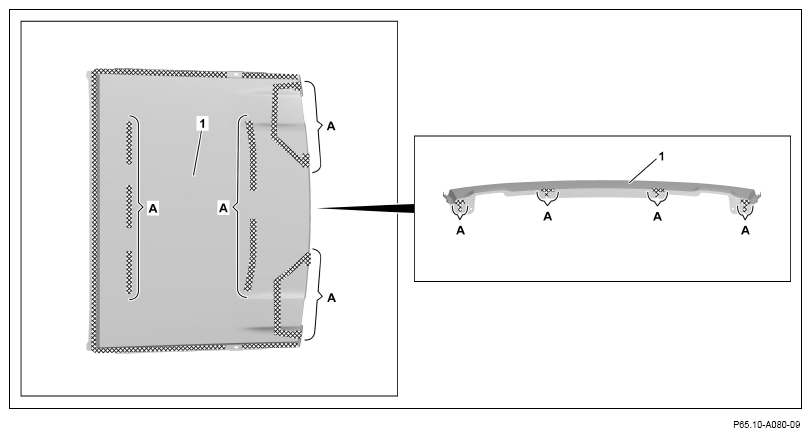

1. Prepare bonding surfaces on insides of roof paneling rear section (1) in cross-hatched areas (areas A).

   Observe processing specifications of adhesive.

2. Grind mating surfaces in remaining cross-hatched areas on insides down to bare metal.

   Grind spot weld flanges down to bare metal on both sides.

3. Remove grinding dust.
