Remove/Install Liftgate Seal - AR72.20-P-2121ME
Model 167
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Open tailgate. | ||
| 2 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||

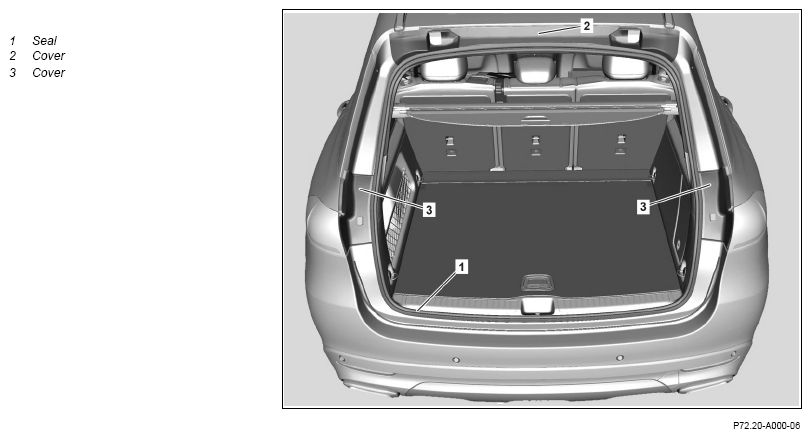

| 3 | Unclip cover (2) and remove. | ||
| 4 | Unclip covers (3) and remove. | ||
| 5 | Carefully remove seal (1) all around the liftgate. | Do not use any lubricant. Otherwise leakage can occur later. |
|
| Clean | |||
| 6 | Clean body flange. | Assembly cleaner | *BR00.45-Z-1028-04A |
| 7 | Install in the reverse order. |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |
