Remove/Install Front Door Armrest - AR72.10-P-1035ME

Model 167

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Remove/install

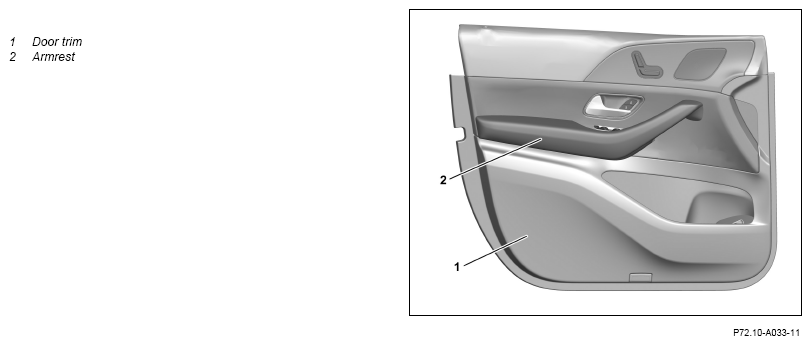

1	Remove door trim (1).		AR72.10-P-6575ME
2	Remove mat cover.
3	Remove screw/bolts (3).
4	Unhook electric line from door trim (1).	Model 167 with code 906 (Front armrest heater)

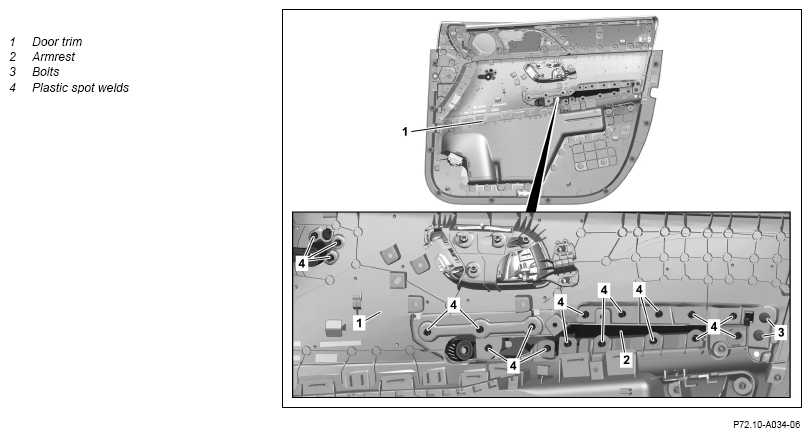

5.1	Drill plastic spot welds (4) and remove armrest (2).	If the armrest (2) is fastened with plastic spot welds (4). Replace drilled plastic spot welds (4) with screws.	AR72.00-P-0001-01LW
5.2	Unscrew screws and remove armrest (2).	If the armrest (2) is fastened with screws.
6	Remove panel with switch group at armrest (2).	When replacing armrest (2).	AR72.29-P-0100ME
7	Install in the reverse order.
