Remove/Install Pneumatic Pump For Multicontour Seat In Rear Passenger Compartment - AR91.25-P-0001MEM
Model 167.9
with code 406 (Multicontour rear seat)
With Code M036 (Maybach Version)
MODIFICATION NOTES
| 24.02.2020 | Method revised. | Operation steps 2 to 5 |

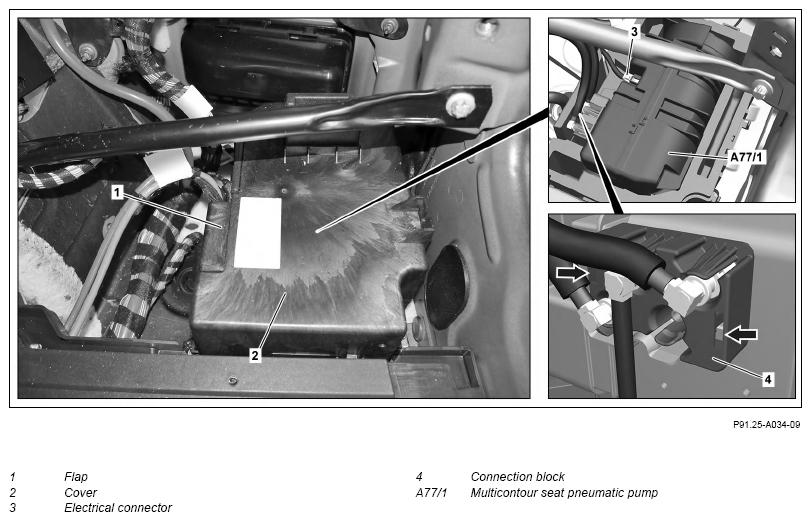

Fig 1: Pneumatic Pump For Multicontour Seat In Rear Passenger Compartment Components Location - Model 167.9 With Code 406; M036
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove right load compartment cover. | AR68.30-P-1185MEM | |
| 2 | Fold up flap (1) on cap (2). | ||
| 3 | Release and disconnect electrical connection (3). | ||
| 4 | Remove cap (2) until the terminal block (4) with compressed-air lines is accessible. | Do not kink compressed-air lines. Otherwise the compressed-air lines may be damaged. |
|
| 5 | Release terminal block (4) with compressed-air lines from multicontour seat pneumatic pump (A77/1) using a suitable screwdriver (arrows) and detach. | Do not kink compressed-air lines. Otherwise the compressed-air lines may be damaged. |
|
| 6 | Remove multicontour seat pneumatic pump (A77/1) from load compartment. | ||
| 7 | Install in the reverse order. |
